Gondwana.Drawing.Direct.DirectComposite Class Reference

Represents a movable composite that owns other movable direct drawables and keeps their positions relative to a shared anchor. More...

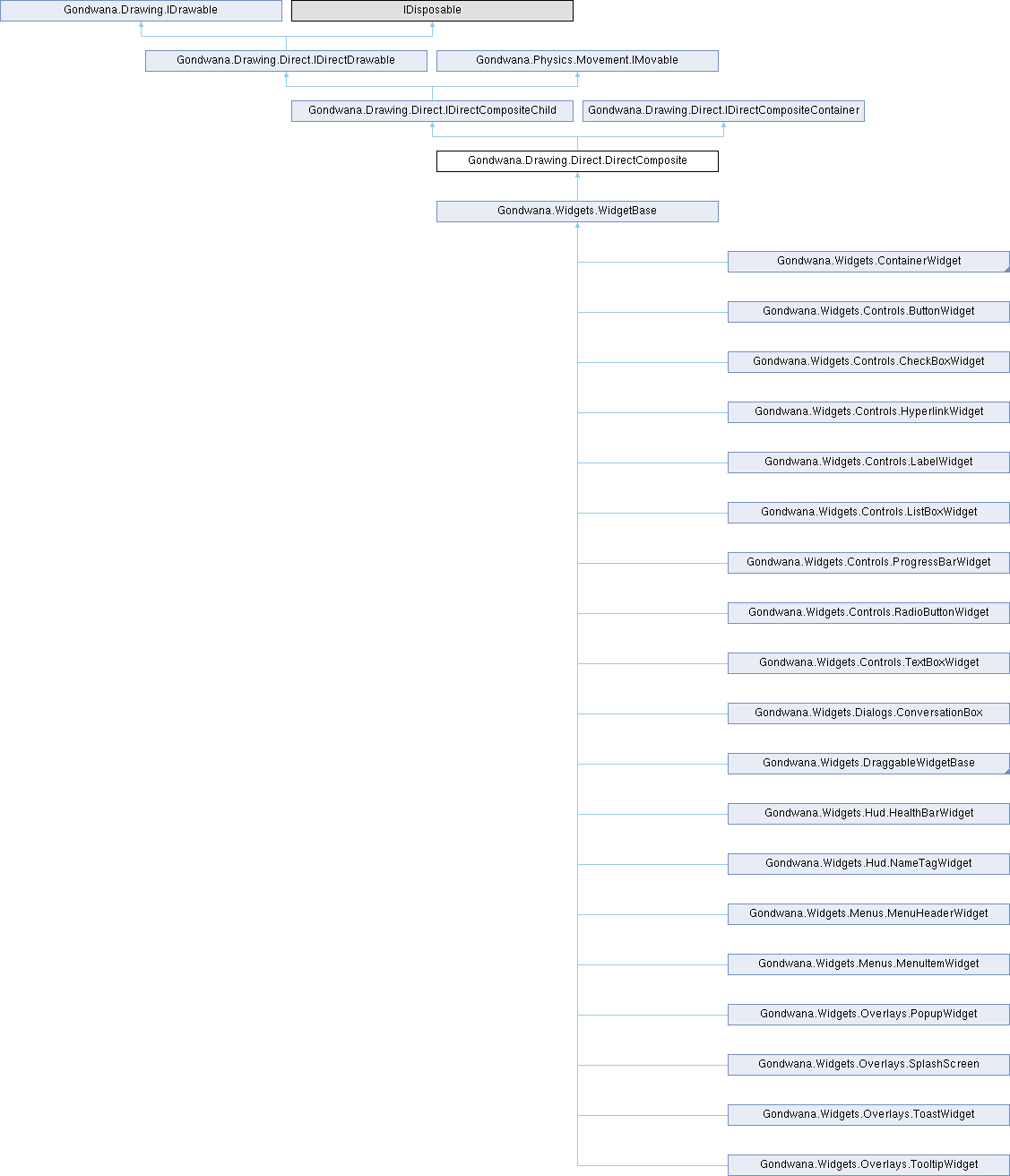

Inheritance diagram for Gondwana.Drawing.Direct.DirectComposite:

Public Member Functions
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
virtual DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child.
virtual DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it.
virtual DirectComposite	Clear ()
	Removes every child without disposing them.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.
virtual void	Dispose ()
	Disposes the composite and every child it owns.

Protected Member Functions
virtual void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added.
virtual void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite.

Properties
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Events
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Represents a movable composite that owns other movable direct drawables and keeps their positions relative to a shared anchor.

A composite may recursively contain other composites. Every child must use the same render surface, drawing mode, and target View or SceneLayer.

A child may belong to only one composite at a time. Cyclic parent/child relationships are rejected.

Definition at line 28 of file DirectComposite.cs.

Constructor & Destructor Documentation

DirectComposite()

Gondwana.Drawing.Direct.DirectComposite.DirectComposite	(	RenderSurfaceHostBase	renderSurfaceHost,
		DirectDrawingMode	mode,
		PointF	anchor = default,
		string?	nickname = null )

Initializes a new instance of the DirectComposite class.

Parameters

renderSurfaceHost	The render surface host that owns the composite.
mode	The coordinate mode used by the composite and all of its children.
anchor	The composite anchor, in mode-appropriate pixels.
nickname	An optional diagnostic nickname.

Definition at line 63 of file DirectComposite.cs.

Member Function Documentation

Add()

virtual DirectComposite Gondwana.Drawing.Direct.DirectComposite.Add ( IDirectCompositeChild child, bool keepCurrentOffset = true, Vector2? explicitLocalOffsetPx = null )

virtual

Adds a composite-compatible direct drawable as a child.

Parameters

child	The child to add.
keepCurrentOffset	true to preserve the child's current offset from the composite anchor.
explicitLocalOffsetPx	The offset to use when keepCurrentOffset is false.

Returns

The current composite.

Exceptions

ArgumentException	Thrown when the child uses another render surface, mode, view, or scene layer.
InvalidOperationException	Thrown when the child already has another parent or would create a cycle.

Implements Gondwana.Drawing.Direct.IDirectCompositeContainer.

Reimplemented in Gondwana.Widgets.ContainerWidget, and Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 234 of file DirectComposite.cs.

Clear()

virtual DirectComposite Gondwana.Drawing.Direct.DirectComposite.Clear ( )

virtual

Removes every child without disposing them.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeContainer.

Reimplemented in Gondwana.Widgets.ContainerWidget, and Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 302 of file DirectComposite.cs.

Dispose()

virtual void Gondwana.Drawing.Direct.DirectComposite.Dispose ( )

virtual

Disposes the composite and every child it owns.

Reimplemented in Gondwana.Widgets.Controls.ComboBoxWidget, Gondwana.Widgets.Controls.RadioButtonWidget, Gondwana.Widgets.Controls.TabControlWidget, Gondwana.Widgets.Dialogs.AboutBox, Gondwana.Widgets.Dialogs.DialogBox, Gondwana.Widgets.Hud.HealthBarWidget, Gondwana.Widgets.Hud.NameTagWidget, Gondwana.Widgets.Hud.ProfilerWidget, Gondwana.Widgets.Menus.MenuBarWidget, Gondwana.Widgets.Menus.MenuDropDownWidget, Gondwana.Widgets.Menus.MenuItemWidget, Gondwana.Widgets.Overlays.PopupWidget, Gondwana.Widgets.Overlays.SplashScreen, and Gondwana.Widgets.Overlays.ToastWidget.

Definition at line 485 of file DirectComposite.cs.

Draw()

void Gondwana.Drawing.Direct.DirectComposite.Draw	(	BackbufferBase	backbuffer,
		RectangleF	destRectScreen )

Performs no direct rendering because descendants render independently.

Parameters

backbuffer	The backbuffer to draw to (not used).
destRectScreen	The destination rectangle in screen coordinates (not used).

Implements Gondwana.Drawing.IDrawable.

Definition at line 461 of file DirectComposite.cs.

FadeIn()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeIn

(

float

durationSec

)

Fades every descendant to full opacity.

Parameters

durationSec

The animation duration in seconds.

Returns

The current composite.

FadeOut()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeOut

(

float

durationSec

)

Fades every descendant to zero opacity.

Parameters

durationSec

The animation duration in seconds.

Returns

The current composite.

FadeTo()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeTo	(	float	targetOpacity,
		float	durationSec )

Fades every descendant to the requested opacity.

Parameters

targetOpacity	The target opacity.
durationSec	The animation duration in seconds.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 389 of file DirectComposite.cs.

GetDrawLocationScreen()

RectangleF Gondwana.Drawing.Direct.DirectComposite.GetDrawLocationScreen

(

View

view

)

Gets the union of all visible descendants as projected through a view.

Parameters

view	The view used for projection.

Returns

The projected screen-space bounds.

Implements Gondwana.Drawing.IDrawable.

Definition at line 416 of file DirectComposite.cs.

GetPosition()

Vector2 Gondwana.Drawing.Direct.DirectComposite.GetPosition

(

)

Gets the current composite anchor.

Returns

The sprite position in scene-layer grid coordinates.

Implements Gondwana.Physics.Movement.IMovable.

OnChildAdded()

virtual void Gondwana.Drawing.Direct.DirectComposite.OnChildAdded ( IDirectCompositeChild child )

protectedvirtual

Called after a child has been successfully added.

Parameters

child

The child that was added.

Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.

Reimplemented in Gondwana.Widgets.ContainerWidget.

Definition at line 560 of file DirectComposite.cs.

OnChildRemoved()

virtual void Gondwana.Drawing.Direct.DirectComposite.OnChildRemoved ( IDirectCompositeChild child )

protectedvirtual

Called after a child has been removed from the composite.

Parameters

child

The child that was removed.

Reimplemented in Gondwana.Widgets.ContainerWidget.

Definition at line 568 of file DirectComposite.cs.

Remove()

virtual DirectComposite Gondwana.Drawing.Direct.DirectComposite.Remove ( IDirectCompositeChild child )

virtual

Removes a child without disposing it.

Parameters

child

The child to detach.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeContainer.

Reimplemented in Gondwana.Widgets.ContainerWidget, and Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 280 of file DirectComposite.cs.

SetIsVisible()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetIsVisible

(

bool

visible

)

Applies one visibility value to every descendant.

Parameters

visible

The visibility value to apply.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 377 of file DirectComposite.cs.

SetLocalOffset()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetLocalOffset	(	IDirectCompositeChild	child,
		Vector2	newLocalOffsetPx )

Changes one child's local offset and reapplies its position.

Parameters

child	The child whose offset should change.
newLocalOffsetPx	The new offset from the composite anchor.

Returns

The current composite.

Definition at line 330 of file DirectComposite.cs.

SetOpacity()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetOpacity

(

float

opacity

)

Applies one opacity to every descendant.

Parameters

opacity

The opacity in the range 0 through 1.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 364 of file DirectComposite.cs.

SetPosition() [1/2]

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetPosition	(	float	x,
		float	y )

Sets the composite anchor and repositions all children from their stored offsets.

Parameters

x	The new X coordinate.
y	The new Y coordinate.

Returns

The current composite.

Definition at line 198 of file DirectComposite.cs.

SetPosition() [2/2]

void Gondwana.Drawing.Direct.DirectComposite.SetPosition

(

Vector2

position

)

Sets the composite anchor and repositions all children from their stored offsets.

Parameters

position

The new anchor, in mode-appropriate pixels.

Implements Gondwana.Physics.Movement.IMovable.

Definition at line 187 of file DirectComposite.cs.

SetZOrder()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetZOrder

(

int

zOrder

)

Applies one Z-order to every descendant.

Parameters

zOrder

The Z-order to apply.

Returns

The current composite.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 351 of file DirectComposite.cs.

Update()

virtual void Gondwana.Drawing.Direct.DirectComposite.Update ( long tick )

virtual

Advances composite movement.

Parameters

tick	The current engine tick.

This method uses the tick to calculate elapsed time and advance the movement controller. If the tick is less than or equal to the last processed tick, no update occurs.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Reimplemented in Gondwana.Widgets.Overlays.PopupWidget, and Gondwana.Widgets.Overlays.ToastWidget.

Definition at line 471 of file DirectComposite.cs.

Property Documentation

Children

ReadOnlyCollection<IDirectCompositeChild> Gondwana.Drawing.Direct.DirectComposite.Children

get

Gets the children owned by the composite.

Implements IDirectCompositeContainer.Children.

Implements Gondwana.Drawing.Direct.IDirectCompositeContainer.

Definition at line 129 of file DirectComposite.cs.

Id

Guid Gondwana.Drawing.Direct.DirectComposite.Id = Guid.NewGuid()

get

Gets the unique identifier of the composite.

Implements Gondwana.Drawing.IDrawable.

Definition at line 88 of file DirectComposite.cs.

Mode

DirectDrawingMode Gondwana.Drawing.Direct.DirectComposite.Mode

get

Gets the coordinate mode shared by the composite and its children.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Definition at line 103 of file DirectComposite.cs.

Movement

MovementController Gondwana.Drawing.Direct.DirectComposite.Movement

get

Gets the movement controller used to move the composite anchor.

Definition at line 134 of file DirectComposite.cs.

Nickname

string? Gondwana.Drawing.Direct.DirectComposite.Nickname

get

Gets the optional diagnostic nickname of the composite.

Implements Gondwana.Drawing.IDrawable.

Definition at line 93 of file DirectComposite.cs.

PositionSpace

MovementSpace Gondwana.Drawing.Direct.DirectComposite.PositionSpace

get

Gets the coordinate space used by the movement controller.

Implements Gondwana.Physics.Movement.IMovable.

Definition at line 139 of file DirectComposite.cs.

RenderSurfaceHost

RenderSurfaceHostBase Gondwana.Drawing.Direct.DirectComposite.RenderSurfaceHost

get

Gets the render surface host shared by the composite and its children.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Definition at line 98 of file DirectComposite.cs.

SceneLayer

SceneLayer? Gondwana.Drawing.Direct.DirectComposite.SceneLayer

get

Gets the scene layer shared by all children in scene-layer mode.

The first child establishes this value. It is cleared when the composite becomes empty.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 112 of file DirectComposite.cs.

ScreenBounds

Rectangle Gondwana.Drawing.Direct.DirectComposite.ScreenBounds

get

Gets the union of all visible descendants' screen-space bounds.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Definition at line 166 of file DirectComposite.cs.

View

View? Gondwana.Drawing.Direct.DirectComposite.View

get

Gets the view shared by all children in view mode.

The first child establishes this value. It is cleared when the composite becomes empty.

Implements Gondwana.Drawing.Direct.IDirectCompositeChild.

Definition at line 121 of file DirectComposite.cs.

Visible

bool Gondwana.Drawing.Direct.DirectComposite.Visible

getset

Gets or sets the visibility of all descendants.

Implements Gondwana.Drawing.IDrawable.

Definition at line 144 of file DirectComposite.cs.

WorldBounds

Rectangle Gondwana.Drawing.Direct.DirectComposite.WorldBounds

get

Gets the union of all visible descendants' world-space bounds.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Definition at line 171 of file DirectComposite.cs.

ZOrder

int Gondwana.Drawing.Direct.DirectComposite.ZOrder

get

Gets the composite Z-order.

A composite is not rendered directly; descendants retain their individual Z-orders. Use SetZOrder to update all descendants.

Implements Gondwana.Drawing.IDrawable.

Definition at line 161 of file DirectComposite.cs.

Event Documentation

Disposing

EventHandler<IDirectDrawable>? Gondwana.Drawing.Direct.DirectComposite.Disposing

Occurs when the composite is being disposed.

Definition at line 50 of file DirectComposite.cs.
