Gondwana.Widgets.Overlays.SplashScreen Class Reference

Represents a full-screen splash screen widget that fades in, holds for a duration, and fades out. More...

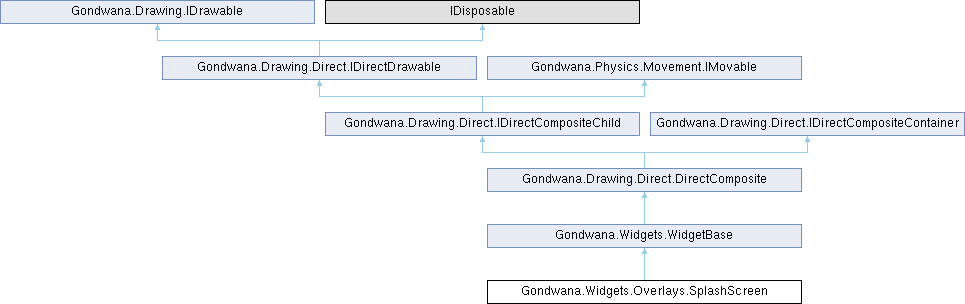

Inheritance diagram for Gondwana.Widgets.Overlays.SplashScreen:

Public Types
enum	State { Hidden , FadingIn , Holding , FadingOut }
	Represents the current state of the splash screen animation. More...

Public Member Functions
override void	Dispose ()
	Releases the splash overlay and associated resources.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
virtual DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child.
virtual DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it.
virtual DirectComposite	Clear ()
	Removes every child without disposing them.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.

Static Public Member Functions
static ? SplashScreen	TryCreate (Stream imageStream, RenderSurfaceHostBase host, View view, float fadeInSec=0.45f, float holdSec=3f, float fadeOutSec=0.45f, Action? onHoldingSync=null, Func< Task >? onHoldingAsync=null, Action? onSplashCompleted=null)
	Attempts to create a new SplashScreen instance from the provided image stream.

Static Public Attributes
static readonly string	SplashImageNickname = "__gondwana_splash__"
	The nickname used for the DirectImage overlay that displays the splash.

Properties
DirectImage	Image [get]
	Gets the DirectImage overlay that displays the splash image.
State	CurrentState [get]
	Gets the current state of the splash screen.
float	FadeInSec [get]
	Gets the duration of the fade-in animation in seconds.
float	HoldSec [get]
	Gets the minimum duration for which the splash remains at full opacity, in seconds.
float	FadeOutSec [get]
	Gets the duration of the fade-out animation in seconds.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Additional Inherited Members
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
virtual void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
virtual void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
virtual void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked.
virtual void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.
virtual void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnCancelled ()
	Called when the widget is cancelled.
virtual void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds.
virtual void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds.
virtual void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget.
virtual void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget.
virtual void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget.
virtual void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget.
virtual void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.
virtual void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
virtual void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added.
virtual void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Represents a full-screen splash screen widget that fades in, holds for a duration, and fades out.

The splash screen transitions through four states: State.Hidden, State.FadingIn, State.Holding, and State.FadingOut.

During the holding phase, optional synchronous and asynchronous delegates may be invoked. The splash remains visible until both the configured hold duration has elapsed and all supplied delegate work has completed.

Definition at line 32 of file SplashScreen.cs.

Member Enumeration Documentation

State

enum Gondwana.Widgets.Overlays.SplashScreen.State

Represents the current state of the splash screen animation.

Enumerator
Hidden	The splash screen is not visible.
FadingIn	The splash screen is fading in from transparent to opaque.
Holding	The splash screen is held at full opacity.
FadingOut	The splash screen is fading out from opaque to transparent.

Definition at line 40 of file SplashScreen.cs.

Member Function Documentation

Dispose()

override void Gondwana.Widgets.Overlays.SplashScreen.Dispose ( )

virtual

Releases the splash overlay and associated resources.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 252 of file SplashScreen.cs.

TryCreate()

? SplashScreen Gondwana.Widgets.Overlays.SplashScreen.TryCreate ( Stream imageStream, RenderSurfaceHostBase host, View view, float fadeInSec = 0::45f, float holdSec = 3f, float fadeOutSec = 0::45f, Action? onHoldingSync = null, Func< Task >? onHoldingAsync = null, Action? onSplashCompleted = null )

static

Attempts to create a new SplashScreen instance from the provided image stream.

Parameters

imageStream	The stream containing the splash image to decode.
host	The render surface host that manages rendering for the splash screen.
view	The view to which the splash screen is attached.
fadeInSec	The duration of the fade-in animation in seconds. The default is 0.45 seconds.
holdSec	The minimum duration for which the splash remains at full opacity. The default is 3 seconds.
fadeOutSec	The duration of the fade-out animation in seconds. The default is 0.45 seconds.
onHoldingSync	An optional synchronous delegate invoked on the engine thread during the holding phase.
onHoldingAsync	An optional asynchronous delegate invoked on the engine thread during the holding phase.

Returns

A new SplashScreen instance if creation succeeds; otherwise, null.

The holding phase waits for both the configured hold duration to elapse and all supplied delegate work to complete.

If the delegates complete before the hold duration has elapsed, the splash remains visible for the full duration. If delegate work takes longer, the splash remains visible until that work completes.

The delegates are invoked on the engine thread. Continuations within the asynchronous delegate follow the synchronization behavior defined by that delegate and its awaited operations.

Exceptions thrown by supplied delegates are logged but do not prevent the splash sequence from completing.

The created splash screen automatically disposes itself after the fade-out animation completes.

Parameters

onSplashCompleted

The on splash completed.

Definition at line 197 of file SplashScreen.cs.

Member Data Documentation

SplashImageNickname

readonly string Gondwana.Widgets.Overlays.SplashScreen.SplashImageNickname = "__gondwana_splash__"

static

The nickname used for the DirectImage overlay that displays the splash.

Definition at line 66 of file SplashScreen.cs.

Property Documentation

CurrentState

State Gondwana.Widgets.Overlays.SplashScreen.CurrentState

get

Gets the current state of the splash screen.

Definition at line 83 of file SplashScreen.cs.

FadeInSec

float Gondwana.Widgets.Overlays.SplashScreen.FadeInSec

get

Gets the duration of the fade-in animation in seconds.

Definition at line 88 of file SplashScreen.cs.

FadeOutSec

float Gondwana.Widgets.Overlays.SplashScreen.FadeOutSec

get

Gets the duration of the fade-out animation in seconds.

Definition at line 99 of file SplashScreen.cs.

HoldSec

float Gondwana.Widgets.Overlays.SplashScreen.HoldSec

get

Gets the minimum duration for which the splash remains at full opacity, in seconds.

Definition at line 94 of file SplashScreen.cs.


DirectImage Gondwana.Widgets.Overlays.SplashScreen.Image

get

Gets the DirectImage overlay that displays the splash image.

Definition at line 78 of file SplashScreen.cs.
