Gondwana.Widgets.Dialogs.AboutBox Class Reference

Represents a conventional application-information dialog. More...

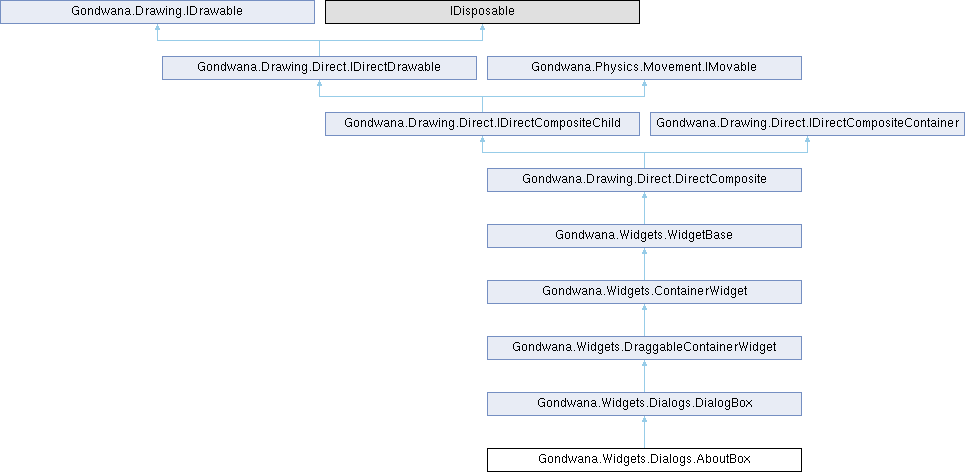

Inheritance diagram for Gondwana.Widgets.Dialogs.AboutBox:

Public Member Functions
	AboutBox (RenderSurfaceHostBase renderSurfaceHost, View view, string applicationName, string version, string? description=null, string? copyright=null, SKImage? logo=null, Rectangle? bounds=null, string? nickname=null, IExternalUriLauncher? uriLauncher=null, Uri? hyperlinkUri=null, string? hyperlinkText=null)
	Initializes a new instance of the AboutBox class.
override void	Dispose ()
	Disposes the composite and every child it owns.
Public Member Functions inherited from Gondwana.Widgets.Dialogs.DialogBox
void	Close (DialogResult result=DialogResult.Close)
	Closes the dialog with the specified result.
override void	Dispose ()
	Disposes the composite and every child it owns.
Public Member Functions inherited from Gondwana.Widgets.ContainerWidget
override DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child. Parameters child The child to add. keepCurrentOffset true to preserve the child's current offset from the composite anchor. explicitLocalOffsetPx The offset to use when keepCurrentOffset is false. Returns The current composite. Exceptions ArgumentException Thrown when the child uses another render surface, mode, view, or scene layer. InvalidOperationException Thrown when the child already has another parent or would create a cycle.
override DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it. Parameters child The child to detach. Returns The current composite.
override DirectComposite	Clear ()
	Removes every child without disposing them. Returns The current composite.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.

Protected Member Functions
override void	OnAcceptRequested ()
	Called when the accept key is pressed.
Protected Member Functions inherited from Gondwana.Widgets.Dialogs.DialogBox
	DialogBox (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle bounds, string title, bool showCloseButton=true, string? nickname=null)
	Initializes a view-level dialog.
	DialogBox (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle bounds, string title, bool showCloseButton=true, string? nickname=null)
	Initializes a scene-layer dialog.
virtual void	OnClosed (DialogResult result)
	Called after the dialog closes.
override void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
override bool	CanStartDrag (WidgetPointerEventArgs args)
	Determines whether a pointer-down event may begin drag tracking. Parameters args The event data. Returns true if the pointer event can begin a drag; otherwise, false.
override void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget. Parameters args The keyboard event data.
override void	OnCancelled ()
	Called when the widget is cancelled.
Protected Member Functions inherited from Gondwana.Widgets.DraggableContainerWidget
	DraggableContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DraggableContainerWidget class.
override void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
override void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
override void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked. Parameters args The pointer event data.
override void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked. Parameters args The pointer event data.
override void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked. Parameters args The pointer event data.
override bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data. Parameters args The pointer event data. Returns true if the pointer-click event should be dispatched; otherwise, false.
virtual Vector2	ConvertScreenDeltaToPositionDelta (Vector2 totalScreenDeltaPx, View view)
	Converts total screen movement into this widget's coordinate space.
virtual Vector2	ConstrainDragPosition (Vector2 proposedPositionPx)
	Constrains a proposed anchor position before it is applied.
virtual void	OnDragStarted (WidgetDragEventArgs args)
	Called when dragging begins.
virtual void	OnDragged (WidgetDragEventArgs args)
	Called after the container moves during dragging.
virtual void	OnDragEnded (WidgetDragEventArgs args)
	Called when dragging ends.
Protected Member Functions inherited from Gondwana.Widgets.ContainerWidget
	ContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the ContainerWidget class.
TWidget	Add< TWidget > (TWidget widget, Vector2 localOffsetPx)
	Adds a child widget at a local offset from this container's anchor.
bool	RemoveChild (WidgetBase widget, bool dispose=false)
	Removes a child widget from the container.
override void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added. Parameters child The child that was added. Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.
override void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite. Parameters child The child that was removed.
override void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds.
virtual void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds.
virtual void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget.
virtual void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget.
virtual void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget.
virtual void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget.
virtual void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.

Properties
string	ApplicationName [get]
	Gets the application name.
string	Version [get]
	Gets the version text.
string?	Description [get]
	Gets the optional description.
string?	Copyright [get]
	Gets the optional copyright text.
DirectImage?	Logo [get]
	Gets the optional logo drawing.
TextBlock	HeaderText [get]
	Gets the application-name text block.
TextBlock	VersionText [get]
	Gets the version text block.
TextBlock	DetailsText [get]
	Gets the detail text block.
ButtonWidget	OkButton [get]
	Gets the OK button.
HyperlinkWidget?	Hyperlink [get]
	Gets the optional external hyperlink displayed by the dialog.
Properties inherited from Gondwana.Widgets.Dialogs.DialogBox
DirectRectangle	Panel [get]
	Gets the dialog panel.
DirectRectangle	TitleBar [get]
	Gets the title-bar rectangle.
TextBlock	TitleText [get]
	Gets the title text block.
ButtonWidget?	CloseButton [get]
	Gets the optional close button.
Size	DialogSize [get]
	Gets the dialog size.
bool	IsClosed [get]
	Gets whether the dialog has closed.
DialogResult	Result [get]
	Gets the result selected when the dialog closed.
bool	DisposeOnClose = true [get, set]
	Gets or sets whether closing the dialog disposes it.
int	AcceptKey = 13 [get, set]
	Gets or sets the key value used to accept the dialog.
int	CancelKey = 27 [get, set]
	Gets or sets the key value used to cancel the dialog.
Properties inherited from Gondwana.Widgets.DraggableContainerWidget
bool	IsDragEnabled [get, set]
	Gets or sets whether new drag operations may begin.
bool	IsDragging [get]
	Gets whether a drag operation is active.
float	DragThresholdPx [get, set]
	Gets or sets the minimum pointer movement required to begin dragging.
Properties inherited from Gondwana.Widgets.ContainerWidget
IReadOnlyList< WidgetBase >	ChildWidgets [get]
	Gets a snapshot of the child widgets directly owned by this container.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Additional Inherited Members
Static Protected Attributes inherited from Gondwana.Widgets.Dialogs.DialogBox
const int	DefaultTitleBarHeight = 36
	The default title bar height.
const int	DefaultCloseButtonSize = 28
	The default close button size.
static readonly Color	DefaultPanelColor = Color.FromArgb(245, 36, 36, 44)
	The default panel color.
static readonly Color	DefaultPanelBorderColor = Color.FromArgb(255, 140, 140, 155)
	The default panel border color.
static readonly Color	DefaultTitleBarColor = Color.FromArgb(255, 57, 57, 72)
	The default title bar color.
Events inherited from Gondwana.Widgets.Dialogs.DialogBox
Action< DialogResult >?	Closed
	Occurs when the dialog closes.
Events inherited from Gondwana.Widgets.DraggableContainerWidget
Action< WidgetDragEventArgs >?	DragStarted
	Raised when pointer movement first crosses DragThresholdPx.
Action< WidgetDragEventArgs >?	Dragged
	Raised after the container is repositioned during an active drag.
Action< WidgetDragEventArgs >?	DragEnded
	Raised when an active drag ends.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Represents a conventional application-information dialog.

Definition at line 14 of file AboutBox.cs.

Constructor & Destructor Documentation

AboutBox()

Gondwana.Widgets.Dialogs.AboutBox.AboutBox	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		string	applicationName,
		string	version,
		string?	description = null,
		string?	copyright = null,
		SKImage?	logo = null,
		Rectangle?	bounds = null,
		string?	nickname = null,
		IExternalUriLauncher?	uriLauncher = null,
		Uri?	hyperlinkUri = null,
		string?	hyperlinkText = null )

Initializes a new instance of the AboutBox class.

Parameters

renderSurfaceHost	The render surface host that owns the dialog.
view	The view in which the dialog is displayed.
applicationName	The application name.
version	The application version.
description	Optional descriptive text.
copyright	Optional copyright text.
logo	An optional caller-owned image.
bounds	Optional dialog bounds. When omitted, the dialog is centered in the view.
nickname	An optional diagnostic nickname.
uriLauncher	The optional platform service used to open the hyperlink URI.
hyperlinkUri	The optional external URI displayed by the dialog.
hyperlinkText	The optional hyperlink display text. When omitted, the URI is displayed.

Definition at line 46 of file AboutBox.cs.

Member Function Documentation

Dispose()

override void Gondwana.Widgets.Dialogs.AboutBox.Dispose ( )

virtual

Disposes the composite and every child it owns.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 251 of file AboutBox.cs.

OnAcceptRequested()

override void Gondwana.Widgets.Dialogs.AboutBox.OnAcceptRequested ( )

protectedvirtual

Called when the accept key is pressed.

Reimplemented from Gondwana.Widgets.Dialogs.DialogBox.

Definition at line 245 of file AboutBox.cs.

Property Documentation

ApplicationName

string Gondwana.Widgets.Dialogs.AboutBox.ApplicationName

get

Gets the application name.

Definition at line 193 of file AboutBox.cs.

Copyright

string? Gondwana.Widgets.Dialogs.AboutBox.Copyright

get

Gets the optional copyright text.

Definition at line 208 of file AboutBox.cs.

Description

string? Gondwana.Widgets.Dialogs.AboutBox.Description

get

Gets the optional description.

Definition at line 203 of file AboutBox.cs.

DetailsText

TextBlock Gondwana.Widgets.Dialogs.AboutBox.DetailsText

get

Gets the detail text block.

Definition at line 228 of file AboutBox.cs.

HeaderText

TextBlock Gondwana.Widgets.Dialogs.AboutBox.HeaderText

get

Gets the application-name text block.

Definition at line 218 of file AboutBox.cs.

Hyperlink

HyperlinkWidget? Gondwana.Widgets.Dialogs.AboutBox.Hyperlink

get

Gets the optional external hyperlink displayed by the dialog.

Definition at line 238 of file AboutBox.cs.

Logo

DirectImage? Gondwana.Widgets.Dialogs.AboutBox.Logo

get

Gets the optional logo drawing.

Definition at line 213 of file AboutBox.cs.

OkButton

ButtonWidget Gondwana.Widgets.Dialogs.AboutBox.OkButton

get

Gets the OK button.

Definition at line 233 of file AboutBox.cs.

Version

string Gondwana.Widgets.Dialogs.AboutBox.Version

get

Gets the version text.

Definition at line 198 of file AboutBox.cs.

VersionText

TextBlock Gondwana.Widgets.Dialogs.AboutBox.VersionText

get

Gets the version text block.

Definition at line 223 of file AboutBox.cs.
