Gondwana.Widgets.Menus.MenuItemWidget Class Reference

A command, check/radio item, or submenu owner in a menu dropdown. More...

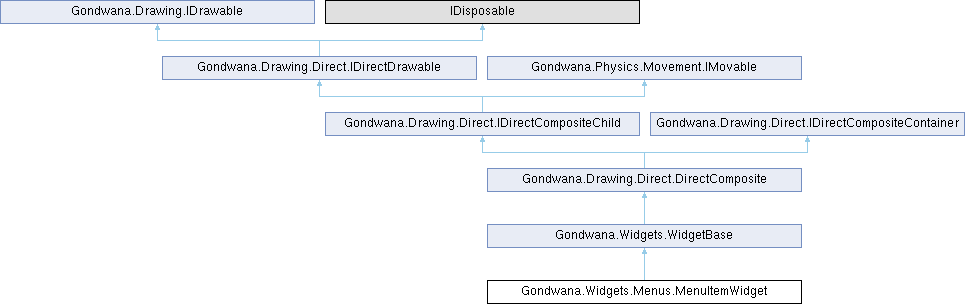

Inheritance diagram for Gondwana.Widgets.Menus.MenuItemWidget:

Public Member Functions
MenuItemWidget	SetEnabled (bool enabled)
	Enables or disables the item.
MenuItemWidget	SetChecked (bool isChecked)
	Changes state without invoking callbacks. Checking a radio item clears its group peers.
void	PerformClick ()
	Invokes an enabled command, even while its dropdown is closed, or opens its submenu.
override void	Dispose ()
	Disposes the composite and every child it owns.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
virtual DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child.
virtual DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it.
virtual DirectComposite	Clear ()
	Removes every child without disposing them.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.

Protected Member Functions
override void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds. Parameters args The pointer event data.
override void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds. Parameters args The pointer event data.
override void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget. Parameters args The pointer event data.
override void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget. Parameters args The pointer event data.
override void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget. Parameters args The pointer event data.
override void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget. Parameters args The keyboard event data.
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
virtual void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
virtual void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
virtual void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked.
virtual void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.
virtual void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnCancelled ()
	Called when the widget is cancelled.
virtual void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget.
virtual void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
virtual void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added.
virtual void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite.

Properties
string?	Key [get]
	Gets the immutable optional key, unique within the menu bar.
string	Text [get]
	Gets the command label.
KeyGesture?	Shortcut [get]
	Gets the executable gesture, if any.
string	ShortcutText [get]
	Gets gesture-generated text, or the legacy display-only shortcut text.
char?	Mnemonic [get]
	Gets the explicit, case-insensitive access character.
SKImage?	Icon [get]
	Gets the caller-owned image. Keep it alive until the item is disposed.
DirectImage?	IconDrawing [get]
	Gets the retained icon drawing, if configured.
bool	IsCheckable [get]
	Gets whether this item has check or radio state.
bool	IsChecked [get]
	Gets the current checked state.
string?	RadioGroup [get]
	Gets the radio group, scoped to the containing dropdown.
MenuDropDownWidget?	SubMenu [get]
	Gets the child dropdown, if this item owns a submenu.
DirectRectangle	Background [get]
	Gets the background drawing.
TextBlock	Label [get]
	Gets the label drawing.
TextBlock	ShortcutLabel [get]
	Gets the shortcut drawing.
DirectDrawingMovableBase	Marker [get]
	Gets the check/radio indicator drawing.
DirectDrawingMovableBase	Arrow [get]
	Gets the submenu arrow drawing.
bool	IsEnabled [get]
	Gets whether this item is enabled.
bool	IsSelected [get]
	Gets whether this item is selected by pointer or keyboard.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Events
Action< MenuItemWidget >?	Invoked
	Occurs after state changes and hierarchy closure, before the command callback.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

A command, check/radio item, or submenu owner in a menu dropdown.

Definition at line 12 of file MenuItemWidget.cs.

Member Function Documentation

Dispose()

override void Gondwana.Widgets.Menus.MenuItemWidget.Dispose ( )

virtual

Disposes the composite and every child it owns.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 212 of file MenuItemWidget.cs.

OnKeyboardInput()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnKeyboardInput ( WidgetKeyboardEventArgs args )

protectedvirtual

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 264 of file MenuItemWidget.cs.

OnPointerClick()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnPointerClick ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer click is dispatched to the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 255 of file MenuItemWidget.cs.

OnPointerDown()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnPointerDown ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer press begins on the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 241 of file MenuItemWidget.cs.

OnPointerEnter()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnPointerEnter ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer enters the widget bounds.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 223 of file MenuItemWidget.cs.

OnPointerLeave()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnPointerLeave ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer leaves the widget bounds.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 233 of file MenuItemWidget.cs.

OnPointerUp()

override void Gondwana.Widgets.Menus.MenuItemWidget.OnPointerUp ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer press is released for the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 248 of file MenuItemWidget.cs.

PerformClick()

void Gondwana.Widgets.Menus.MenuItemWidget.PerformClick

(

)

Invokes an enabled command, even while its dropdown is closed, or opens its submenu.

The bar and ancestor items must be available. State changes and menu closure precede callbacks.

Definition at line 141 of file MenuItemWidget.cs.

SetChecked()

MenuItemWidget Gondwana.Widgets.Menus.MenuItemWidget.SetChecked

(

bool

isChecked

)

Changes state without invoking callbacks. Checking a radio item clears its group peers.

Parameters

isChecked

Whether the control starts or becomes checked.

Returns

This instance for fluent chaining.

Definition at line 129 of file MenuItemWidget.cs.

SetEnabled()

MenuItemWidget Gondwana.Widgets.Menus.MenuItemWidget.SetEnabled

(

bool

enabled

)

Enables or disables the item.

Parameters

enabled

Whether the feature is enabled.

Returns

This instance for fluent chaining.

Definition at line 116 of file MenuItemWidget.cs.

Property Documentation

Arrow

DirectDrawingMovableBase Gondwana.Widgets.Menus.MenuItemWidget.Arrow

get

Gets the submenu arrow drawing.

Definition at line 106 of file MenuItemWidget.cs.

Background

DirectRectangle Gondwana.Widgets.Menus.MenuItemWidget.Background

get

Gets the background drawing.

Definition at line 98 of file MenuItemWidget.cs.

Icon

SKImage? Gondwana.Widgets.Menus.MenuItemWidget.Icon

get

Gets the caller-owned image. Keep it alive until the item is disposed.

Definition at line 86 of file MenuItemWidget.cs.

IconDrawing

DirectImage? Gondwana.Widgets.Menus.MenuItemWidget.IconDrawing

get

Gets the retained icon drawing, if configured.

Definition at line 88 of file MenuItemWidget.cs.

IsCheckable

bool Gondwana.Widgets.Menus.MenuItemWidget.IsCheckable

get

Gets whether this item has check or radio state.

Definition at line 90 of file MenuItemWidget.cs.

IsChecked

bool Gondwana.Widgets.Menus.MenuItemWidget.IsChecked

get

Gets the current checked state.

Definition at line 92 of file MenuItemWidget.cs.

IsEnabled

bool Gondwana.Widgets.Menus.MenuItemWidget.IsEnabled

get

Gets whether this item is enabled.

Definition at line 108 of file MenuItemWidget.cs.

IsSelected

bool Gondwana.Widgets.Menus.MenuItemWidget.IsSelected

get

Gets whether this item is selected by pointer or keyboard.

Definition at line 110 of file MenuItemWidget.cs.

Key

string? Gondwana.Widgets.Menus.MenuItemWidget.Key

get

Gets the immutable optional key, unique within the menu bar.

Definition at line 76 of file MenuItemWidget.cs.

Label

TextBlock Gondwana.Widgets.Menus.MenuItemWidget.Label

get

Gets the label drawing.

Definition at line 100 of file MenuItemWidget.cs.

Marker

DirectDrawingMovableBase Gondwana.Widgets.Menus.MenuItemWidget.Marker

get

Gets the check/radio indicator drawing.

Definition at line 104 of file MenuItemWidget.cs.

Mnemonic

char? Gondwana.Widgets.Menus.MenuItemWidget.Mnemonic

get

Gets the explicit, case-insensitive access character.

Definition at line 84 of file MenuItemWidget.cs.

RadioGroup

string? Gondwana.Widgets.Menus.MenuItemWidget.RadioGroup

get

Gets the radio group, scoped to the containing dropdown.

Definition at line 94 of file MenuItemWidget.cs.

Shortcut

KeyGesture? Gondwana.Widgets.Menus.MenuItemWidget.Shortcut

get

Gets the executable gesture, if any.

Definition at line 80 of file MenuItemWidget.cs.

ShortcutLabel

TextBlock Gondwana.Widgets.Menus.MenuItemWidget.ShortcutLabel

get

Gets the shortcut drawing.

Definition at line 102 of file MenuItemWidget.cs.

ShortcutText

string Gondwana.Widgets.Menus.MenuItemWidget.ShortcutText

get

Gets gesture-generated text, or the legacy display-only shortcut text.

Definition at line 82 of file MenuItemWidget.cs.

SubMenu

MenuDropDownWidget? Gondwana.Widgets.Menus.MenuItemWidget.SubMenu

get

Gets the child dropdown, if this item owns a submenu.

Definition at line 96 of file MenuItemWidget.cs.

Text

string Gondwana.Widgets.Menus.MenuItemWidget.Text

get

Gets the command label.

Definition at line 78 of file MenuItemWidget.cs.

Event Documentation

Invoked

Action<MenuItemWidget>? Gondwana.Widgets.Menus.MenuItemWidget.Invoked

Occurs after state changes and hierarchy closure, before the command callback.

Definition at line 27 of file MenuItemWidget.cs.
