Gondwana.Widgets.Layout.StackPanelWidget Class Reference

Arranges child widgets sequentially in a horizontal or vertical stack. More...

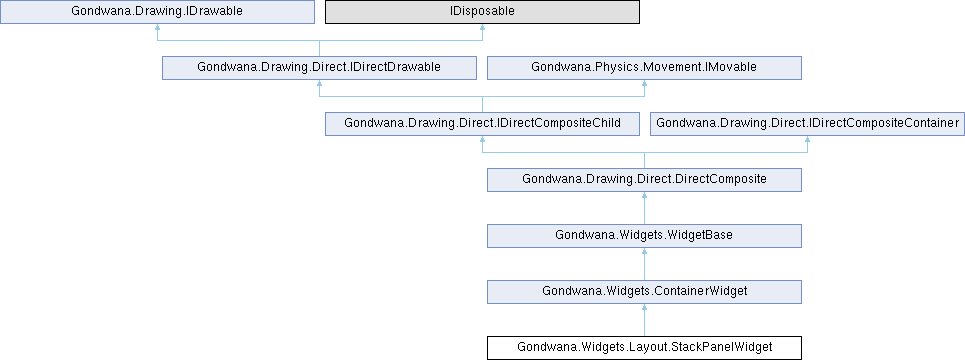

Inheritance diagram for Gondwana.Widgets.Layout.StackPanelWidget:

Public Member Functions
	StackPanelWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, WidgetOrientation orientation=WidgetOrientation.Vertical, float spacing=0f, string? nickname=null)
	Creates a stack panel in the supplied drawing mode. The first child establishes the view or scene-layer target.
StackPanelWidget	AddWidget (WidgetBase widget)
	Adds a child widget and immediately recalculates layout.
StackPanelWidget	RemoveWidget (WidgetBase widget, bool dispose=false)
	Removes a child widget and immediately recalculates layout.
StackPanelWidget	Relayout ()
	Recalculates every child offset from the current orientation and spacing.
override DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child. Parameters child The child to add. keepCurrentOffset true to preserve the child's current offset from the composite anchor. explicitLocalOffsetPx The offset to use when keepCurrentOffset is false. Returns The current composite. Exceptions ArgumentException Thrown when the child uses another render surface, mode, view, or scene layer. InvalidOperationException Thrown when the child already has another parent or would create a cycle.
override DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it. Parameters child The child to detach. Returns The current composite.
override DirectComposite	Clear ()
	Removes every child without disposing them. Returns The current composite.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.
virtual void	Dispose ()
	Disposes the composite and every child it owns.

Properties
WidgetOrientation	Orientation [get, set]
	Gets or sets the stacking direction.
float	Spacing [get, set]
	Gets or sets the number of pixels placed between adjacent child widgets.
SizeF	ContentSize [get]
	Gets the current laid-out content size.
Properties inherited from Gondwana.Widgets.ContainerWidget
IReadOnlyList< WidgetBase >	ChildWidgets [get]
	Gets a snapshot of the child widgets directly owned by this container.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Additional Inherited Members
Protected Member Functions inherited from Gondwana.Widgets.ContainerWidget
	ContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the ContainerWidget class.
TWidget	Add< TWidget > (TWidget widget, Vector2 localOffsetPx)
	Adds a child widget at a local offset from this container's anchor.
bool	RemoveChild (WidgetBase widget, bool dispose=false)
	Removes a child widget from the container.
override void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added. Parameters child The child that was added. Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.
override void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite. Parameters child The child that was removed.
override void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
override void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
override void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
override void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked.
virtual void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.
virtual void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnCancelled ()
	Called when the widget is cancelled.
virtual void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds.
virtual void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds.
virtual void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget.
virtual void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget.
virtual void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget.
virtual void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget.
virtual void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.
virtual void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Arranges child widgets sequentially in a horizontal or vertical stack.

Definition at line 11 of file StackPanelWidget.cs.

Constructor & Destructor Documentation

StackPanelWidget()

Gondwana.Widgets.Layout.StackPanelWidget.StackPanelWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		DirectDrawingMode	mode,
		PointF	anchor = default,
		WidgetOrientation	orientation = WidgetOrientation::Vertical,
		float	spacing = 0f,
		string?	nickname = null )

Creates a stack panel in the supplied drawing mode. The first child establishes the view or scene-layer target.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
mode	The mode.
anchor	The anchor.
orientation	The orientation.
spacing	The spacing.
nickname	An optional name used to identify the object.

Definition at line 27 of file StackPanelWidget.cs.

Member Function Documentation

Add()

override DirectComposite Gondwana.Widgets.Layout.StackPanelWidget.Add ( IDirectCompositeChild child, bool keepCurrentOffset = true, Vector2? explicitLocalOffsetPx = null )

virtual

Adds a composite-compatible direct drawable as a child.

Parameters

child	The child to add.
keepCurrentOffset	true to preserve the child's current offset from the composite anchor.
explicitLocalOffsetPx	The offset to use when keepCurrentOffset is false.

Returns

The current composite.

Exceptions

ArgumentException	Thrown when the child uses another render surface, mode, view, or scene layer.
InvalidOperationException	Thrown when the child already has another parent or would create a cycle.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 155 of file StackPanelWidget.cs.

AddWidget()

StackPanelWidget Gondwana.Widgets.Layout.StackPanelWidget.AddWidget

(

WidgetBase

widget

)

Adds a child widget and immediately recalculates layout.

Parameters

widget

The widget.

Returns

This instance for fluent chaining.

Definition at line 86 of file StackPanelWidget.cs.

Clear()

override DirectComposite Gondwana.Widgets.Layout.StackPanelWidget.Clear ( )

virtual

Removes every child without disposing them.

Returns

The current composite.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 176 of file StackPanelWidget.cs.

Relayout()

StackPanelWidget Gondwana.Widgets.Layout.StackPanelWidget.Relayout

(

)

Recalculates every child offset from the current orientation and spacing.

Returns

This instance for fluent chaining.

Definition at line 113 of file StackPanelWidget.cs.

Remove()

override DirectComposite Gondwana.Widgets.Layout.StackPanelWidget.Remove ( IDirectCompositeChild child )

virtual

Removes a child without disposing it.

Parameters

child

The child to detach.

Returns

The current composite.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 168 of file StackPanelWidget.cs.

RemoveWidget()

StackPanelWidget Gondwana.Widgets.Layout.StackPanelWidget.RemoveWidget	(	WidgetBase	widget,
		bool	dispose = false )

Removes a child widget and immediately recalculates layout.

Parameters

widget	The widget.
dispose	Whether to dispose the removed resource.

Returns

This instance for fluent chaining.

Definition at line 99 of file StackPanelWidget.cs.

Property Documentation

ContentSize

SizeF Gondwana.Widgets.Layout.StackPanelWidget.ContentSize

get

Gets the current laid-out content size.

Definition at line 79 of file StackPanelWidget.cs.

Orientation

WidgetOrientation Gondwana.Widgets.Layout.StackPanelWidget.Orientation

getset

Gets or sets the stacking direction.

Definition at line 47 of file StackPanelWidget.cs.

Spacing

float Gondwana.Widgets.Layout.StackPanelWidget.Spacing

getset

Gets or sets the number of pixels placed between adjacent child widgets.

Definition at line 63 of file StackPanelWidget.cs.
