Gondwana.Drawing.Direct.IDirectCompositeChild Interface Reference

Defines a movable direct drawable that may be owned by a DirectComposite. More...

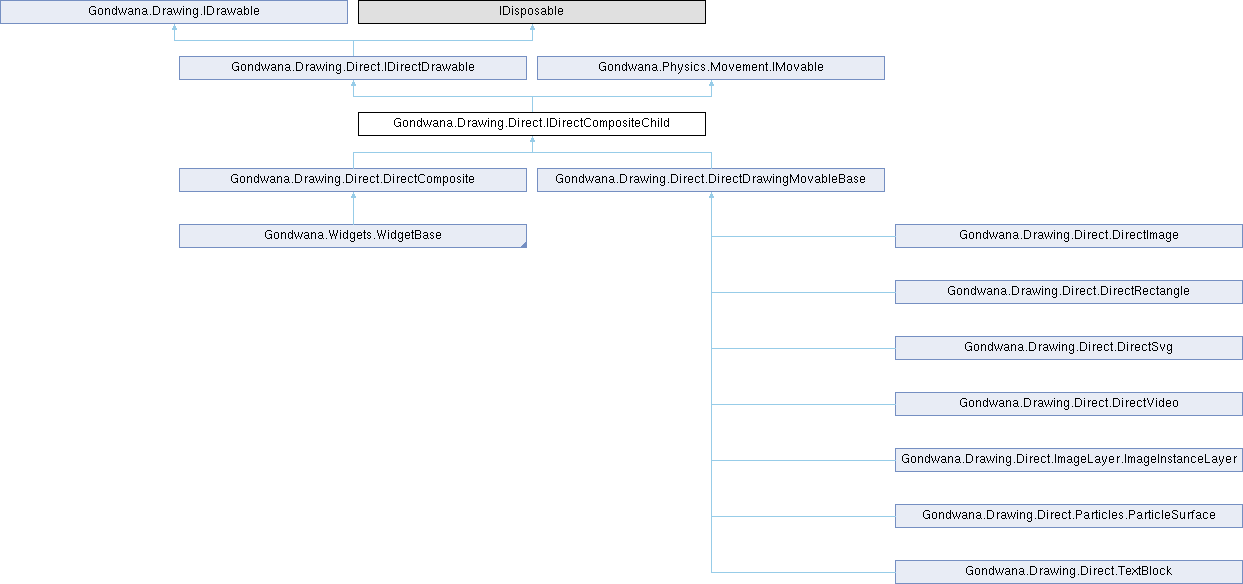

Inheritance diagram for Gondwana.Drawing.Direct.IDirectCompositeChild:

Public Member Functions
void	SetIsVisible (bool visible)
	Applies a visibility value to this child.
void	SetZOrder (int zOrder)
	Applies a Z-order value to this child.
void	SetOpacity (float opacity)
	Applies an opacity value to this child.
void	FadeTo (float targetOpacity, float durationSec)
	Fades this child to the requested opacity.
Public Member Functions inherited from Gondwana.Drawing.Direct.IDirectDrawable
void	Update (long tick)
	Updates the state of the object based on the specified tick value.
Public Member Functions inherited from Gondwana.Drawing.IDrawable
RectangleF	GetDrawLocationScreen (View view)
	Computes the object's destination rectangle in SCREEN pixels for rendering on the Backbuffer, using the provided View to project from world-space.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Draws the object to the Backbuffer using the provided SCREEN-space destination rectangle. The rectangle is assumed to already be projected into screen-space; no world-to-screen conversion should occur within this method.
Public Member Functions inherited from Gondwana.Physics.Movement.IMovable
Vector2	GetPosition ()
	Get the current position in the mover's PositionSpace.
void	SetPosition (Vector2 pos)
	Set the position in the mover's PositionSpace.

Properties
SceneLayer?	SceneLayer [get]
	Gets the scene layer used by a scene-layer child, or null for a view child.
View?	View [get]
	Gets the view used by a view child, or null for a scene-layer child.
Properties inherited from Gondwana.Drawing.Direct.IDirectDrawable
RenderSurfaceHostBase	RenderSurfaceHost [get]
	The rendering surface to which this drawable belongs.
DirectDrawingMode	Mode [get]
	Gets the drawing mode that determines where and how this drawable is rendered.
Rectangle	ScreenBounds [get]
	The bounding rectangle of this drawable in SCREEN space.
Rectangle	WorldBounds [get]
	The bounding rectangle of this drawable in WORLD space.
Properties inherited from Gondwana.Drawing.IDrawable
Guid	Id [get]
	Auto-assigned unique identifier for the object.
string?	Nickname [get]
	Optional human-readable name associated with the object.
bool	Visible [get]
	Gets a value indicating whether the object is visible.
int	ZOrder [get]
	Gets the z-order of the element, which determines its visual stacking order relative to other elements. Higher z-order values are drawn on top of lower ones.
Properties inherited from Gondwana.Physics.Movement.IMovable
MovementSpace	PositionSpace [get]
	Which unit system this mover uses for its position.

Additional Inherited Members
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Defines a movable direct drawable that may be owned by a DirectComposite.

The interface provides the coordinate target and visual operations required for recursive composition without requiring DirectComposite to recognize concrete child types.

Container implementations should apply visibility, Z-order, opacity, and fade operations recursively to their descendants.

Definition at line 22 of file IDirectCompositeChild.cs.

Member Function Documentation

FadeTo()

void Gondwana.Drawing.Direct.IDirectCompositeChild.FadeTo	(	float	targetOpacity,
		float	durationSec )

Fades this child to the requested opacity.

Parameters

targetOpacity	The target opacity in the range 0 through 1.
durationSec	The fade duration in seconds.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

SetIsVisible()

void Gondwana.Drawing.Direct.IDirectCompositeChild.SetIsVisible

(

bool

visible

)

Applies a visibility value to this child.

Parameters

visible

The visibility value to apply.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

SetOpacity()

void Gondwana.Drawing.Direct.IDirectCompositeChild.SetOpacity

(

float

opacity

)

Applies an opacity value to this child.

Parameters

opacity

The opacity value in the range 0 through 1.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

SetZOrder()

void Gondwana.Drawing.Direct.IDirectCompositeChild.SetZOrder

(

int

zOrder

)

Applies a Z-order value to this child.

Parameters

zOrder

The Z-order value to apply.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

Property Documentation

SceneLayer

SceneLayer? Gondwana.Drawing.Direct.IDirectCompositeChild.SceneLayer

get

Gets the scene layer used by a scene-layer child, or null for a view child.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

Definition at line 28 of file IDirectCompositeChild.cs.

View

View? Gondwana.Drawing.Direct.IDirectCompositeChild.View

get

Gets the view used by a view child, or null for a scene-layer child.

Implemented in Gondwana.Drawing.Direct.DirectComposite.

Definition at line 34 of file IDirectCompositeChild.cs.
