Gondwana.Widgets.Controls.TabControlWidget Class Reference

Provides a tabbed container whose pages own ordinary Gondwana widgets. More...

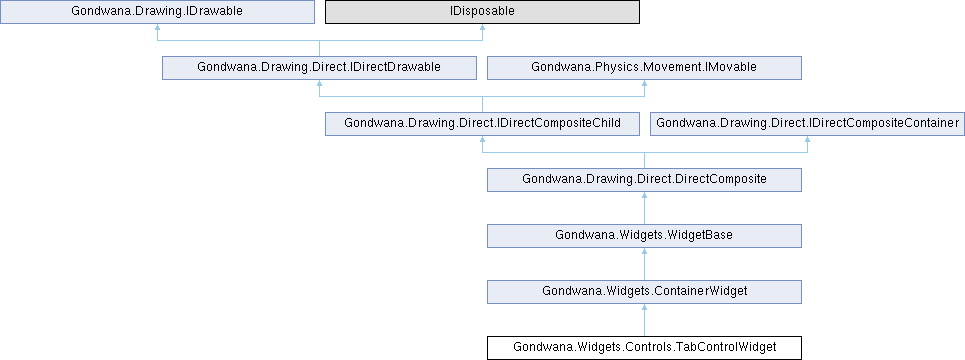

Inheritance diagram for Gondwana.Widgets.Controls.TabControlWidget:

Public Member Functions
	TabControlWidget (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle bounds, string? nickname=null)
	Creates a view-level tab control.
	TabControlWidget (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle bounds, string? nickname=null)
	Creates a scene-layer tab control.
TabPageWidget	AddTab (string title, char? mnemonic=null, string? nickname=null)
	Adds a page to the end of the tab strip.
bool	RemoveTab (TabPageWidget page, bool dispose=false)
	Removes a page from the tab control.
TabControlWidget	SelectTab (int index)
	Selects the page at the supplied tab index.
TabControlWidget	SelectTab (TabPageWidget page)
	Selects the supplied page.
TabControlWidget	MoveTab (int fromIndex, int toIndex)
	Moves one page to a different tab index.
TabControlWidget	MoveTab (TabPageWidget page, int toIndex)
	Moves the supplied page to a different tab index.
TabControlWidget	Relayout ()
	Recomputes header and page layout after changing a size or tab-layout setting.
TabControlWidget	SetTabColors (Color normal, Color hover, Color pressed, Color selected)
	Sets the tab header colors.
TabControlWidget	SetTabTextColor (Color color)
	Sets the color used by tab-header labels.
TabControlWidget	SetTabControlZOrder (int zOrder)
	Sets the base Z-order for all page and header visuals.
override void	Dispose ()
	Disposes the composite and every child it owns.
Public Member Functions inherited from Gondwana.Widgets.ContainerWidget
override DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child. Parameters child The child to add. keepCurrentOffset true to preserve the child's current offset from the composite anchor. explicitLocalOffsetPx The offset to use when keepCurrentOffset is false. Returns The current composite. Exceptions ArgumentException Thrown when the child uses another render surface, mode, view, or scene layer. InvalidOperationException Thrown when the child already has another parent or would create a cycle.
override DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it. Parameters child The child to detach. Returns The current composite.
override DirectComposite	Clear ()
	Removes every child without disposing them. Returns The current composite.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.

Protected Member Functions
override void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
override void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
override void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
override void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget. Parameters args The keyboard event data.
Protected Member Functions inherited from Gondwana.Widgets.ContainerWidget
	ContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the ContainerWidget class.
TWidget	Add< TWidget > (TWidget widget, Vector2 localOffsetPx)
	Adds a child widget at a local offset from this container's anchor.
bool	RemoveChild (WidgetBase widget, bool dispose=false)
	Removes a child widget from the container.
override void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added. Parameters child The child that was added. Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.
override void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite. Parameters child The child that was removed.
override void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked.
virtual void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.
virtual void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnCancelled ()
	Called when the widget is cancelled.
virtual void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds.
virtual void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds.
virtual void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget.
virtual void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget.
virtual void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget.
virtual void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget.
virtual void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.

Properties
Rectangle	Bounds [get]
	Gets the current control bounds in its native coordinate space.
Size	Size [get, set]
	Gets or sets the overall control size while preserving its anchor position.
IReadOnlyList< TabPageWidget >	Tabs [get]
	Gets the pages in their visible tab order.
int	SelectedIndex [get]
	Gets the selected tab index, or -1 when the control has no pages.
TabPageWidget?	SelectedTab [get]
	Gets the selected page, or null when the control has no pages.
int	TabHeight [get, set]
	Gets or sets the height of one tab header row in native pixels.
int	TabRowCount [get, set]
	Gets or sets the number of header rows reserved when AutoExpandRows is disabled.
bool	AutoExpandRows [get, set]
	Gets or sets whether the control adds rows as more tabs are added.
int	PreferredTabWidth [get, set]
	Gets or sets the preferred header width used when rows expand automatically.
int	DisplayedTabRowCount [get]
	Gets the number of header rows currently occupied or reserved by the control.
int	DisplayedTabColumnCount [get]
	Gets the number of tab cells displayed across each header row.
bool	IsTabReorderingEnabled [get, set]
	Gets or sets whether headers can be drag-reordered with a primary pointer.
float	TabReorderDragThresholdPx [get, set]
	Gets or sets the pointer movement required to begin a tab reordering drag.
Properties inherited from Gondwana.Widgets.ContainerWidget
IReadOnlyList< WidgetBase >	ChildWidgets [get]
	Gets a snapshot of the child widgets directly owned by this container.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Events
Action< TabPageWidget >?	SelectedTabChanged
	Occurs after the selected page changes.
Action< TabPageWidget, int, int >?	TabReordered
	Occurs after a page moves to a different tab index.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Provides a tabbed container whose pages own ordinary Gondwana widgets.

Add pages with AddTab(string,char?,string?). By default, all tab headers share one row and resize to fit the control width. Set AutoExpandRows to retain a preferred header width by adding rows as more tabs are added, or set TabRowCount to reserve a fixed number of rows. Pages can be selected with their headers or with an Alt mnemonic.

Definition at line 23 of file TabControlWidget.cs.

Constructor & Destructor Documentation

TabControlWidget() [1/2]

Gondwana.Widgets.Controls.TabControlWidget.TabControlWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	bounds,
		string?	nickname = null )

Creates a view-level tab control.

Parameters

renderSurfaceHost	The render surface host that owns the control.
view	The view that renders the control.
bounds	The control bounds in view pixels.
nickname	The optional diagnostic nickname.

Definition at line 72 of file TabControlWidget.cs.

TabControlWidget() [2/2]

Gondwana.Widgets.Controls.TabControlWidget.TabControlWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	bounds,
		string?	nickname = null )

Creates a scene-layer tab control.

Parameters

renderSurfaceHost	The render surface host that owns the control.
sceneLayer	The scene layer that renders the control.
bounds	The control bounds in world pixels.
nickname	The optional diagnostic nickname.

Definition at line 93 of file TabControlWidget.cs.

Member Function Documentation

AddTab()

TabPageWidget Gondwana.Widgets.Controls.TabControlWidget.AddTab	(	string	title,
		char?	mnemonic = null,
		string?	nickname = null )

Adds a page to the end of the tab strip.

Parameters

title	The text displayed in the new tab header.
mnemonic	The optional Alt-key mnemonic that selects the new page.
nickname	The optional diagnostic nickname for the page.

Returns

The newly created page, which can own other widgets.

Definition at line 296 of file TabControlWidget.cs.

Dispose()

override void Gondwana.Widgets.Controls.TabControlWidget.Dispose ( )

virtual

Disposes the composite and every child it owns.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 528 of file TabControlWidget.cs.

MoveTab() [1/2]

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.MoveTab	(	int	fromIndex,
		int	toIndex )

Moves one page to a different tab index.

Parameters

fromIndex	The zero-based index of the page to move.
toIndex	The zero-based destination index.

Returns

The current tab control.

Definition at line 402 of file TabControlWidget.cs.

MoveTab() [2/2]

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.MoveTab	(	TabPageWidget	page,
		int	toIndex )

Moves the supplied page to a different tab index.

Parameters

page	The page to move.
toIndex	The zero-based destination index.

Returns

The current tab control.

Definition at line 435 of file TabControlWidget.cs.

OnKeyboardInput()

override void Gondwana.Widgets.Controls.TabControlWidget.OnKeyboardInput ( WidgetKeyboardEventArgs args )

protectedvirtual

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 579 of file TabControlWidget.cs.

ProcessActivated()

override void Gondwana.Widgets.Controls.TabControlWidget.ProcessActivated ( )

protectedvirtual

Performs processing when the widget is activated before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 571 of file TabControlWidget.cs.

ProcessHidden()

override void Gondwana.Widgets.Controls.TabControlWidget.ProcessHidden ( )

protectedvirtual

Performs processing when the widget is hidden before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 564 of file TabControlWidget.cs.

ProcessShown()

override void Gondwana.Widgets.Controls.TabControlWidget.ProcessShown ( )

protectedvirtual

Performs processing when the widget is shown before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 556 of file TabControlWidget.cs.

Relayout()

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.Relayout

(

)

Recomputes header and page layout after changing a size or tab-layout setting.

Returns

The current tab control.

Definition at line 451 of file TabControlWidget.cs.

RemoveTab()

bool Gondwana.Widgets.Controls.TabControlWidget.RemoveTab	(	TabPageWidget	page,
		bool	dispose = false )

Removes a page from the tab control.

Parameters

page	The page to remove.
dispose	Whether to dispose the page and its header after removal.

Returns

true when the page was owned by this control; otherwise, false.

Definition at line 350 of file TabControlWidget.cs.

SelectTab() [1/2]

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.SelectTab

(

int

index

)

Selects the page at the supplied tab index.

Parameters

index

The zero-based tab index to select.

Returns

The current tab control.

Definition at line 362 of file TabControlWidget.cs.

SelectTab() [2/2]

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.SelectTab

(

TabPageWidget

page

)

Selects the supplied page.

Parameters

page	The page to select.

Returns

The current tab control.

Definition at line 385 of file TabControlWidget.cs.

SetTabColors()

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.SetTabColors	(	Color	normal,
		Color	hover,
		Color	pressed,
		Color	selected )

Sets the tab header colors.

Parameters

normal	The normal unselected color.
hover	The unselected hover color.
pressed	The unselected pressed color.
selected	The selected tab color.

Returns

The current tab control.

Definition at line 485 of file TabControlWidget.cs.

SetTabControlZOrder()

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.SetTabControlZOrder

(

int

zOrder

)

Sets the base Z-order for all page and header visuals.

Parameters

zOrder

The Z-order applied to page backgrounds.

Returns

The current tab control.

Definition at line 519 of file TabControlWidget.cs.

SetTabTextColor()

TabControlWidget Gondwana.Widgets.Controls.TabControlWidget.SetTabTextColor

(

Color

color

)

Sets the color used by tab-header labels.

Parameters

color

The new label color.

Returns

The current tab control.

Definition at line 504 of file TabControlWidget.cs.

Property Documentation

AutoExpandRows

bool Gondwana.Widgets.Controls.TabControlWidget.AutoExpandRows

getset

Gets or sets whether the control adds rows as more tabs are added.

When enabled, PreferredTabWidth determines how many tabs fit in one row. When disabled, TabRowCount controls the number of rows.

Definition at line 208 of file TabControlWidget.cs.

Bounds

Rectangle Gondwana.Widgets.Controls.TabControlWidget.Bounds

get

Gets the current control bounds in its native coordinate space.

Definition at line 110 of file TabControlWidget.cs.

DisplayedTabColumnCount

int Gondwana.Widgets.Controls.TabControlWidget.DisplayedTabColumnCount

get

Gets the number of tab cells displayed across each header row.

Definition at line 248 of file TabControlWidget.cs.

DisplayedTabRowCount

int Gondwana.Widgets.Controls.TabControlWidget.DisplayedTabRowCount

get

Gets the number of header rows currently occupied or reserved by the control.

Definition at line 243 of file TabControlWidget.cs.

IsTabReorderingEnabled

bool Gondwana.Widgets.Controls.TabControlWidget.IsTabReorderingEnabled

getset

Gets or sets whether headers can be drag-reordered with a primary pointer.

Definition at line 253 of file TabControlWidget.cs.

PreferredTabWidth

int Gondwana.Widgets.Controls.TabControlWidget.PreferredTabWidth

getset

Gets or sets the preferred header width used when rows expand automatically.

Definition at line 224 of file TabControlWidget.cs.

SelectedIndex

int Gondwana.Widgets.Controls.TabControlWidget.SelectedIndex

get

Gets the selected tab index, or -1 when the control has no pages.

Definition at line 149 of file TabControlWidget.cs.

SelectedTab

TabPageWidget? Gondwana.Widgets.Controls.TabControlWidget.SelectedTab

get

Gets the selected page, or null when the control has no pages.

Definition at line 154 of file TabControlWidget.cs.

Size

Size Gondwana.Widgets.Controls.TabControlWidget.Size

getset

Gets or sets the overall control size while preserving its anchor position.

Definition at line 126 of file TabControlWidget.cs.

TabHeight

int Gondwana.Widgets.Controls.TabControlWidget.TabHeight

getset

Gets or sets the height of one tab header row in native pixels.

Definition at line 161 of file TabControlWidget.cs.

TabReorderDragThresholdPx

float Gondwana.Widgets.Controls.TabControlWidget.TabReorderDragThresholdPx

getset

Gets or sets the pointer movement required to begin a tab reordering drag.

Definition at line 271 of file TabControlWidget.cs.

TabRowCount

int Gondwana.Widgets.Controls.TabControlWidget.TabRowCount

getset

Gets or sets the number of header rows reserved when AutoExpandRows is disabled.

The default is one row. A fixed row count distributes tabs across that many rows and leaves unused cells empty when fewer tabs are present.

Definition at line 184 of file TabControlWidget.cs.

Tabs

IReadOnlyList<TabPageWidget> Gondwana.Widgets.Controls.TabControlWidget.Tabs

get

Gets the pages in their visible tab order.

Definition at line 144 of file TabControlWidget.cs.

Event Documentation

SelectedTabChanged

Action<TabPageWidget>? Gondwana.Widgets.Controls.TabControlWidget.SelectedTabChanged

Occurs after the selected page changes.

Definition at line 58 of file TabControlWidget.cs.

TabReordered

Action<TabPageWidget, int, int>? Gondwana.Widgets.Controls.TabControlWidget.TabReordered

Occurs after a page moves to a different tab index.

Definition at line 63 of file TabControlWidget.cs.
