Provides a draggable container with panel, title-bar, close, keyboard, and result semantics. More...

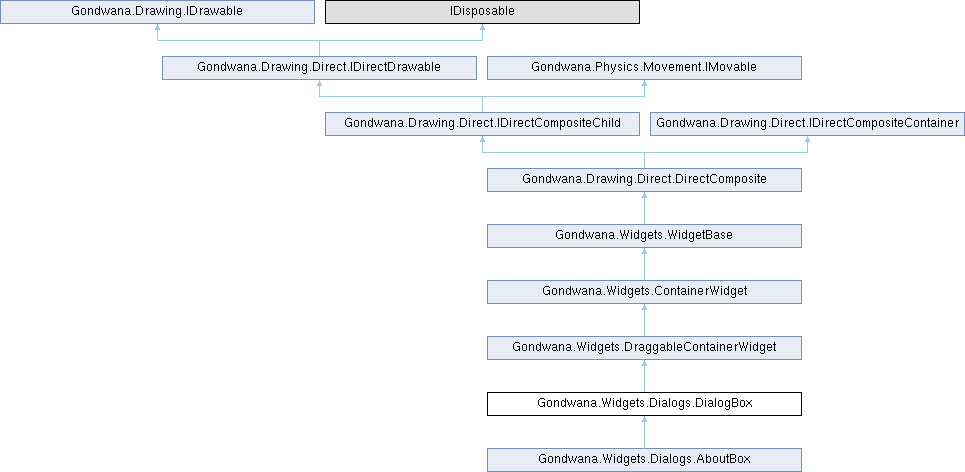

Inheritance diagram for Gondwana.Widgets.Dialogs.DialogBox:

Public Member Functions

void Close (DialogResult result=DialogResult.Close)

Closes the dialog with the specified result.

override void Dispose ()

Disposes the composite and every child it owns.

Public Member Functions inherited from Gondwana.Widgets.ContainerWidget

override DirectComposite Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)

Adds a composite-compatible direct drawable as a child.

Parameters

child	The child to add.
keepCurrentOffset	`true` to preserve the child's current offset from the composite anchor.
explicitLocalOffsetPx	The offset to use when keepCurrentOffset is `false`.

Returns: The current composite.

Exceptions

ArgumentException	Thrown when the child uses another render surface, mode, view, or scene layer.
InvalidOperationException	Thrown when the child already has another parent or would create a cycle.

override DirectComposite Remove (IDirectCompositeChild child)

Removes a child without disposing it.

Parameters

child The child to detach.

Returns: The current composite.

override DirectComposite Clear ()

Removes every child without disposing them.

Returns: The current composite.

Public Member Functions inherited from Gondwana.Widgets.WidgetBase

virtual bool HitTest (View view, Point screenPositionPx)

Determines whether the widget can be hit at the specified screen position within the specified view.

virtual bool HitTest (Point screenPositionPx)

Determines whether the widget can be hit at the specified screen position.

WidgetBase Show ()

Shows the widget and registers it for input routing.

WidgetBase Hide ()

Hides the widget and releases any routed input state.

WidgetBase Activate ()

Activates the widget and brings it to the front of the input order.

WidgetBase Cancel ()

Cancels the widget.

Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite

DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the DirectComposite class.

Vector2 GetPosition ()

Gets the current composite anchor.

void SetPosition (Vector2 position)

Sets the composite anchor and repositions all children from their stored offsets.

DirectComposite SetPosition (float x, float y)

Sets the composite anchor and repositions all children from their stored offsets.

DirectComposite SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)

Changes one child's local offset and reapplies its position.

DirectComposite SetZOrder (int zOrder)

Applies one Z-order to every descendant.

DirectComposite SetOpacity (float opacity)

Applies one opacity to every descendant.

DirectComposite SetIsVisible (bool visible)

Applies one visibility value to every descendant.

DirectComposite FadeTo (float targetOpacity, float durationSec)

Fades every descendant to the requested opacity.

DirectComposite FadeIn (float durationSec)

Fades every descendant to full opacity.

DirectComposite FadeOut (float durationSec)

Fades every descendant to zero opacity.

RectangleF GetDrawLocationScreen (View view)

Gets the union of all visible descendants as projected through a view.

void Draw (BackbufferBase backbuffer, RectangleF destRectScreen)

Performs no direct rendering because descendants render independently.

virtual void Update (long tick)

Advances composite movement.

Protected Member Functions

DialogBox (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle bounds, string title, bool showCloseButton=true, string? nickname=null)

Initializes a view-level dialog.

DialogBox (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle bounds, string title, bool showCloseButton=true, string? nickname=null)

Initializes a scene-layer dialog.

virtual void OnClosed (DialogResult result)

Called after the dialog closes.

virtual void OnAcceptRequested ()

Called when the accept key is pressed.

override void ProcessActivated ()

Performs processing when the widget is activated before notification callbacks are invoked.

override bool CanStartDrag (WidgetPointerEventArgs args)

Determines whether a pointer-down event may begin drag tracking.

Parameters

args	The event data.

Returns: true if the pointer event can begin a drag; otherwise, false.

override void OnKeyboardInput (WidgetKeyboardEventArgs args)

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

override void OnCancelled ()

Called when the widget is cancelled.

Protected Member Functions inherited from Gondwana.Widgets.DraggableContainerWidget

DraggableContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the DraggableContainerWidget class.

override void ProcessHidden ()

Performs processing when the widget is hidden before notification callbacks are invoked.

override void ProcessCancelled ()

Performs processing when the widget is cancelled before notification callbacks are invoked.

override void ProcessPointerDown (WidgetPointerEventArgs args)

Performs processing when a pointer press begins on the widget before notification callbacks are invoked.

Parameters

args	The pointer event data.

override void ProcessPointerMove (WidgetPointerEventArgs args)

Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.

Parameters

args	The pointer event data.

override void ProcessPointerUp (WidgetPointerEventArgs args)

Performs processing when a pointer press is released for the widget before notification callbacks are invoked.

Parameters

args	The pointer event data.

override bool ShouldDispatchPointerClick (WidgetPointerEventArgs args)

Determines whether a pointer-click event should be dispatched for the specified pointer event data.

Parameters

args	The pointer event data.

Returns: true if the pointer-click event should be dispatched; otherwise, false.

virtual Vector2 ConvertScreenDeltaToPositionDelta (Vector2 totalScreenDeltaPx, View view)

Converts total screen movement into this widget's coordinate space.

virtual Vector2 ConstrainDragPosition (Vector2 proposedPositionPx)

Constrains a proposed anchor position before it is applied.

virtual void OnDragStarted (WidgetDragEventArgs args)

Called when dragging begins.

virtual void OnDragged (WidgetDragEventArgs args)

Called after the container moves during dragging.

virtual void OnDragEnded (WidgetDragEventArgs args)

Called when dragging ends.

Protected Member Functions inherited from Gondwana.Widgets.ContainerWidget

ContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the ContainerWidget class.

TWidget Add< TWidget > (TWidget widget, Vector2 localOffsetPx)

Adds a child widget at a local offset from this container's anchor.

bool RemoveChild (WidgetBase widget, bool dispose=false)

Removes a child widget from the container.

override void OnChildAdded (IDirectCompositeChild child)

Called after a child has been successfully added.

Parameters

child The child that was added.

Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.

override void OnChildRemoved (IDirectCompositeChild child)

Called after a child has been removed from the composite.

Parameters

child The child that was removed.

override void ProcessShown ()

Performs processing when the widget is shown before notification callbacks are invoked.

Protected Member Functions inherited from Gondwana.Widgets.WidgetBase

WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the WidgetBase class.

virtual void ProcessPointerEnter (WidgetPointerEventArgs args)

Performs processing when a pointer enters the widget before notification callbacks are invoked.

virtual void ProcessPointerLeave (WidgetPointerEventArgs args)

Performs processing when a pointer leaves the widget before notification callbacks are invoked.

virtual void ProcessFocusGained ()

Performs processing when the widget gains focus before notification callbacks are invoked.

virtual void ProcessFocusLost ()

Performs processing when the widget loses focus before notification callbacks are invoked.

virtual void ProcessKeyboardInput (WidgetKeyboardEventArgs args)

Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.

virtual void OnShown ()

Called when the widget is shown.

virtual void OnHidden ()

Called when the widget is hidden.

virtual void OnActivated ()

Called when the widget is activated.

virtual void OnPointerEnter (WidgetPointerEventArgs args)

Called when a pointer enters the widget bounds.

virtual void OnPointerLeave (WidgetPointerEventArgs args)

Called when a pointer leaves the widget bounds.

virtual void OnPointerDown (WidgetPointerEventArgs args)

Called when a pointer press begins on the widget.

virtual void OnPointerMove (WidgetPointerEventArgs args)

Called when pointer movement is routed to the widget.

virtual void OnPointerUp (WidgetPointerEventArgs args)

Called when a pointer press is released for the widget.

virtual void OnMouseWheel (WidgetMouseWheelEventArgs args)

Called when mouse-wheel input is routed to the widget.

virtual void OnPointerClick (WidgetPointerEventArgs args)

Called when a pointer click is dispatched to the widget.

virtual void OnFocusGained ()

Called when the widget gains focus.

virtual void OnFocusLost ()

Called when the widget loses focus.

Static Protected Attributes
const int	DefaultTitleBarHeight = 36
	The default title bar height.
const int	DefaultCloseButtonSize = 28
	The default close button size.
static readonly Color	DefaultPanelColor = Color.FromArgb(245, 36, 36, 44)
	The default panel color.
static readonly Color	DefaultPanelBorderColor = Color.FromArgb(255, 140, 140, 155)
	The default panel border color.
static readonly Color	DefaultTitleBarColor = Color.FromArgb(255, 57, 57, 72)
	The default title bar color.

Properties
DirectRectangle	Panel `[get]`
	Gets the dialog panel.
DirectRectangle	TitleBar `[get]`
	Gets the title-bar rectangle.
TextBlock	TitleText `[get]`
	Gets the title text block.
ButtonWidget?	CloseButton `[get]`
	Gets the optional close button.
Size	DialogSize `[get]`
	Gets the dialog size.
bool	IsClosed `[get]`
	Gets whether the dialog has closed.
DialogResult	Result `[get]`
	Gets the result selected when the dialog closed.
bool	DisposeOnClose = true `[get, set]`
	Gets or sets whether closing the dialog disposes it.
int	AcceptKey = 13 `[get, set]`
	Gets or sets the key value used to accept the dialog.
int	CancelKey = 27 `[get, set]`
	Gets or sets the key value used to cancel the dialog.
Properties inherited from Gondwana.Widgets.DraggableContainerWidget
bool	IsDragEnabled `[get, set]`
	Gets or sets whether new drag operations may begin.
bool	IsDragging `[get]`
	Gets whether a drag operation is active.
float	DragThresholdPx `[get, set]`
	Gets or sets the minimum pointer movement required to begin dragging.
Properties inherited from Gondwana.Widgets.ContainerWidget
IReadOnlyList< WidgetBase >	ChildWidgets `[get]`
	Gets a snapshot of the child widgets directly owned by this container.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused `[get, set]`
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier of the composite.
string?	Nickname `[get]`
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode `[get]`
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer shared by all children in scene-layer mode.
View?	View `[get]`
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children `[get]`
	Gets the children owned by the composite.
MovementController	Movement `[get]`
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace `[get]`
	Gets the coordinate space used by the movement controller.
bool	Visible `[get, set]`
	Gets or sets the visibility of all descendants.
int	ZOrder `[get]`
	Gets the composite Z-order.
Rectangle	ScreenBounds `[get]`
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds `[get]`
	Gets the union of all visible descendants' world-space bounds.

Events
Action< DialogResult >?	Closed
	Occurs when the dialog closes.
Events inherited from Gondwana.Widgets.DraggableContainerWidget
Action< WidgetDragEventArgs >?	DragStarted
	Raised when pointer movement first crosses DragThresholdPx.
Action< WidgetDragEventArgs >?	Dragged
	Raised after the container is repositioned during an active drag.
Action< WidgetDragEventArgs >?	DragEnded
	Raised when an active drag ends.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Provides a draggable container with panel, title-bar, close, keyboard, and result semantics.

Definition at line 17 of file DialogBox.cs.

Constructor & Destructor Documentation

◆ DialogBox() [1/2]

Gondwana.Widgets.Dialogs.DialogBox.DialogBox	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	bounds,
		string	title,
		bool	showCloseButton = true,
		string?	nickname = null )

protected

Initializes a view-level dialog.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
bounds	The widget bounds in view-local pixels.
title	The title.
showCloseButton	Whether the dialog displays a close button.
nickname	An optional name used to identify the object.

Definition at line 65 of file DialogBox.cs.

◆ DialogBox() [2/2]

Gondwana.Widgets.Dialogs.DialogBox.DialogBox	(	RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	bounds,
		string	title,
		bool	showCloseButton = true,
		string?	nickname = null )

protected

Initializes a scene-layer dialog.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
bounds	The widget bounds in world pixels.
title	The title.
showCloseButton	Whether the dialog displays a close button.
nickname	An optional name used to identify the object.

Definition at line 105 of file DialogBox.cs.

Member Function Documentation

◆ CanStartDrag()

override bool Gondwana.Widgets.Dialogs.DialogBox.CanStartDrag ( WidgetPointerEventArgs args )

protectedvirtual

Determines whether a pointer-down event may begin drag tracking.

Parameters

args	The event data.

Returns: true if the pointer event can begin a drag; otherwise, false.

Reimplemented from Gondwana.Widgets.DraggableContainerWidget.

Definition at line 282 of file DialogBox.cs.

◆ Close()

void Gondwana.Widgets.Dialogs.DialogBox.Close ( DialogResult result = DialogResult::Close )

Closes the dialog with the specified result.

Parameters

result The result.

Definition at line 204 of file DialogBox.cs.

◆ Dispose()

override void Gondwana.Widgets.Dialogs.DialogBox.Dispose ( )

virtual

Disposes the composite and every child it owns.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 323 of file DialogBox.cs.

◆ OnAcceptRequested()

virtual void Gondwana.Widgets.Dialogs.DialogBox.OnAcceptRequested ( )

protectedvirtual

Called when the accept key is pressed.

Reimplemented in Gondwana.Widgets.Dialogs.AboutBox.

Definition at line 232 of file DialogBox.cs.

◆ OnCancelled()

override void Gondwana.Widgets.Dialogs.DialogBox.OnCancelled ( )

protectedvirtual

Called when the widget is cancelled.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 316 of file DialogBox.cs.

◆ OnClosed()

virtual void Gondwana.Widgets.Dialogs.DialogBox.OnClosed ( DialogResult result )

protectedvirtual

Called after the dialog closes.

Parameters

result The result.

Definition at line 225 of file DialogBox.cs.

◆ OnKeyboardInput()

override void Gondwana.Widgets.Dialogs.DialogBox.OnKeyboardInput ( WidgetKeyboardEventArgs args )

protectedvirtual

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 294 of file DialogBox.cs.

◆ ProcessActivated()

override void Gondwana.Widgets.Dialogs.DialogBox.ProcessActivated ( )

protectedvirtual

Performs processing when the widget is activated before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.ContainerWidget.

Definition at line 238 of file DialogBox.cs.

Member Data Documentation

◆ DefaultCloseButtonSize

const int Gondwana.Widgets.Dialogs.DialogBox.DefaultCloseButtonSize = 28

staticprotected

The default close button size.

Definition at line 26 of file DialogBox.cs.

◆ DefaultPanelBorderColor

readonly Color Gondwana.Widgets.Dialogs.DialogBox.DefaultPanelBorderColor = Color.FromArgb(255, 140, 140, 155)

staticprotected

The default panel border color.

Definition at line 35 of file DialogBox.cs.

◆ DefaultPanelColor

readonly Color Gondwana.Widgets.Dialogs.DialogBox.DefaultPanelColor = Color.FromArgb(245, 36, 36, 44)

staticprotected

The default panel color.

Definition at line 31 of file DialogBox.cs.

◆ DefaultTitleBarColor

readonly Color Gondwana.Widgets.Dialogs.DialogBox.DefaultTitleBarColor = Color.FromArgb(255, 57, 57, 72)

staticprotected

The default title bar color.

Definition at line 39 of file DialogBox.cs.

◆ DefaultTitleBarHeight

const int Gondwana.Widgets.Dialogs.DialogBox.DefaultTitleBarHeight = 36

staticprotected

The default title bar height.

Definition at line 22 of file DialogBox.cs.

Property Documentation

◆ AcceptKey

int Gondwana.Widgets.Dialogs.DialogBox.AcceptKey = 13

getset

Gets or sets the key value used to accept the dialog.

The default value is the conventional Enter virtual-key value, 13.

Definition at line 186 of file DialogBox.cs.

◆ CancelKey

int Gondwana.Widgets.Dialogs.DialogBox.CancelKey = 27

getset

Gets or sets the key value used to cancel the dialog.

The default value is the conventional Escape virtual-key value, 27.

Definition at line 194 of file DialogBox.cs.

◆ CloseButton

ButtonWidget? Gondwana.Widgets.Dialogs.DialogBox.CloseButton

get

Gets the optional close button.

Definition at line 158 of file DialogBox.cs.

◆ DialogSize

Size Gondwana.Widgets.Dialogs.DialogBox.DialogSize

get

Gets the dialog size.

Definition at line 163 of file DialogBox.cs.

◆ DisposeOnClose

bool Gondwana.Widgets.Dialogs.DialogBox.DisposeOnClose = true

getset

Gets or sets whether closing the dialog disposes it.

Definition at line 178 of file DialogBox.cs.

◆ IsClosed

bool Gondwana.Widgets.Dialogs.DialogBox.IsClosed

get

Gets whether the dialog has closed.

Definition at line 168 of file DialogBox.cs.

◆ Panel

DirectRectangle Gondwana.Widgets.Dialogs.DialogBox.Panel

get

Gets the dialog panel.

Definition at line 143 of file DialogBox.cs.

◆ Result

DialogResult Gondwana.Widgets.Dialogs.DialogBox.Result

get

Gets the result selected when the dialog closed.

Definition at line 173 of file DialogBox.cs.

◆ TitleBar

DirectRectangle Gondwana.Widgets.Dialogs.DialogBox.TitleBar

get

Gets the title-bar rectangle.

Definition at line 148 of file DialogBox.cs.

◆ TitleText

TextBlock Gondwana.Widgets.Dialogs.DialogBox.TitleText

get

Gets the title text block.

Definition at line 153 of file DialogBox.cs.

Event Documentation

◆ Closed

Action<DialogResult>? Gondwana.Widgets.Dialogs.DialogBox.Closed

Occurs when the dialog closes.

Definition at line 52 of file DialogBox.cs.

Public Member Functions

Protected Member Functions

Static Protected Attributes

Properties

Events

Detailed Description

Constructor & Destructor Documentation

◆ DialogBox() [1/2]

◆ DialogBox() [2/2]

Member Function Documentation

◆ CanStartDrag()

◆ Close()

◆ Dispose()

◆ OnAcceptRequested()

◆ OnCancelled()

◆ OnClosed()

◆ OnKeyboardInput()

◆ ProcessActivated()

Member Data Documentation

◆ DefaultCloseButtonSize

◆ DefaultPanelBorderColor

◆ DefaultPanelColor

◆ DefaultTitleBarColor

◆ DefaultTitleBarHeight

Property Documentation

◆ AcceptKey

◆ CancelKey

◆ CloseButton

◆ DialogSize

◆ DisposeOnClose

◆ IsClosed

◆ Panel

◆ Result

◆ TitleBar

◆ TitleText

Event Documentation

◆ Closed
