Provides a widget that can own other widgets through the inherited DirectComposite child system. More...

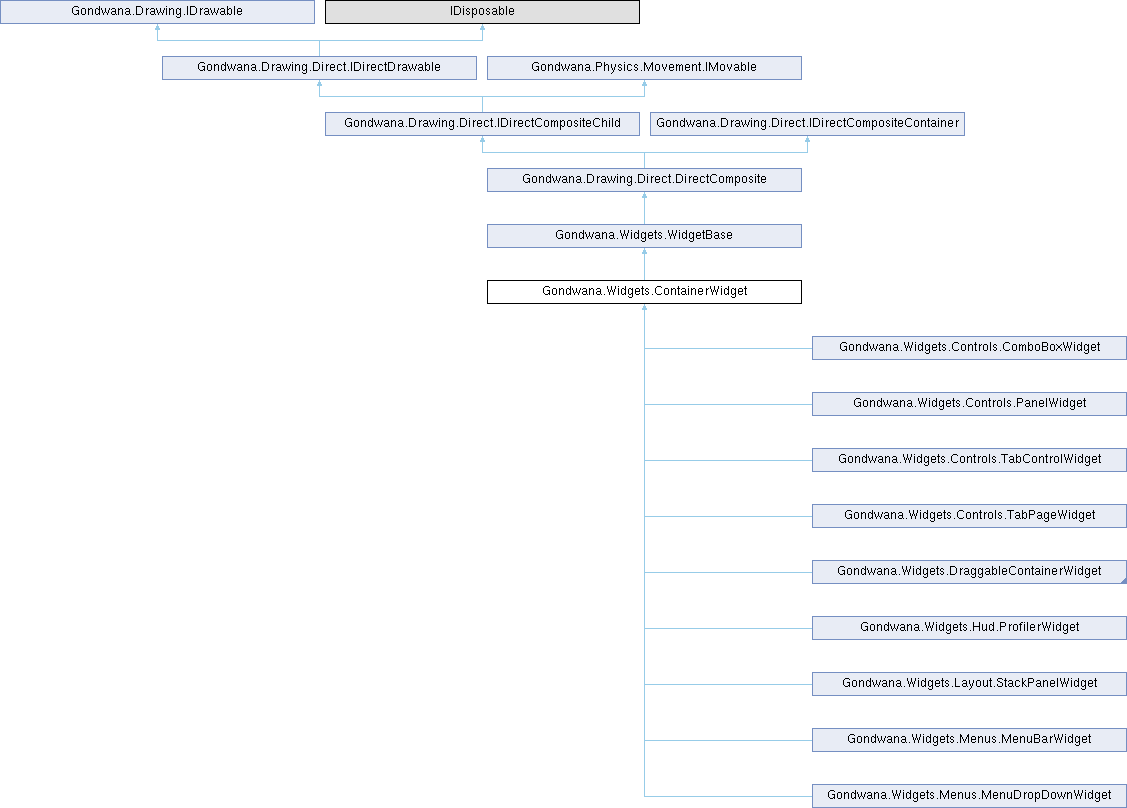

Inheritance diagram for Gondwana.Widgets.ContainerWidget:

Public Member Functions

override DirectComposite Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)

Adds a composite-compatible direct drawable as a child.

Parameters

child	The child to add.
keepCurrentOffset	`true` to preserve the child's current offset from the composite anchor.
explicitLocalOffsetPx	The offset to use when keepCurrentOffset is `false`.

Returns: The current composite.

Exceptions

ArgumentException	Thrown when the child uses another render surface, mode, view, or scene layer.
InvalidOperationException	Thrown when the child already has another parent or would create a cycle.

override DirectComposite Remove (IDirectCompositeChild child)

Removes a child without disposing it.

Parameters

child The child to detach.

Returns: The current composite.

override DirectComposite Clear ()

Removes every child without disposing them.

Returns: The current composite.

Public Member Functions inherited from Gondwana.Widgets.WidgetBase

virtual bool HitTest (View view, Point screenPositionPx)

Determines whether the widget can be hit at the specified screen position within the specified view.

virtual bool HitTest (Point screenPositionPx)

Determines whether the widget can be hit at the specified screen position.

WidgetBase Show ()

Shows the widget and registers it for input routing.

WidgetBase Hide ()

Hides the widget and releases any routed input state.

WidgetBase Activate ()

Activates the widget and brings it to the front of the input order.

WidgetBase Cancel ()

Cancels the widget.

Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite

DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the DirectComposite class.

Vector2 GetPosition ()

Gets the current composite anchor.

void SetPosition (Vector2 position)

Sets the composite anchor and repositions all children from their stored offsets.

DirectComposite SetPosition (float x, float y)

Sets the composite anchor and repositions all children from their stored offsets.

DirectComposite SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)

Changes one child's local offset and reapplies its position.

DirectComposite SetZOrder (int zOrder)

Applies one Z-order to every descendant.

DirectComposite SetOpacity (float opacity)

Applies one opacity to every descendant.

DirectComposite SetIsVisible (bool visible)

Applies one visibility value to every descendant.

DirectComposite FadeTo (float targetOpacity, float durationSec)

Fades every descendant to the requested opacity.

DirectComposite FadeIn (float durationSec)

Fades every descendant to full opacity.

DirectComposite FadeOut (float durationSec)

Fades every descendant to zero opacity.

RectangleF GetDrawLocationScreen (View view)

Gets the union of all visible descendants as projected through a view.

void Draw (BackbufferBase backbuffer, RectangleF destRectScreen)

Performs no direct rendering because descendants render independently.

virtual void Update (long tick)

Advances composite movement.

virtual void Dispose ()

Disposes the composite and every child it owns.

Protected Member Functions

ContainerWidget (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the ContainerWidget class.

TWidget Add< TWidget > (TWidget widget, Vector2 localOffsetPx)

Adds a child widget at a local offset from this container's anchor.

bool RemoveChild (WidgetBase widget, bool dispose=false)

Removes a child widget from the container.

override void OnChildAdded (IDirectCompositeChild child)

Called after a child has been successfully added.

Parameters

child The child that was added.

Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.

override void OnChildRemoved (IDirectCompositeChild child)

Called after a child has been removed from the composite.

Parameters

child The child that was removed.

override void ProcessShown ()

Performs processing when the widget is shown before notification callbacks are invoked.

override void ProcessHidden ()

Performs processing when the widget is hidden before notification callbacks are invoked.

override void ProcessActivated ()

Performs processing when the widget is activated before notification callbacks are invoked.

override void ProcessCancelled ()

Performs processing when the widget is cancelled before notification callbacks are invoked.

Protected Member Functions inherited from Gondwana.Widgets.WidgetBase

WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the WidgetBase class.

virtual void ProcessPointerEnter (WidgetPointerEventArgs args)

Performs processing when a pointer enters the widget before notification callbacks are invoked.

virtual void ProcessPointerLeave (WidgetPointerEventArgs args)

Performs processing when a pointer leaves the widget before notification callbacks are invoked.

virtual void ProcessPointerDown (WidgetPointerEventArgs args)

Performs processing when a pointer press begins on the widget before notification callbacks are invoked.

virtual void ProcessPointerMove (WidgetPointerEventArgs args)

Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.

virtual void ProcessPointerUp (WidgetPointerEventArgs args)

Performs processing when a pointer press is released for the widget before notification callbacks are invoked.

virtual void ProcessFocusGained ()

Performs processing when the widget gains focus before notification callbacks are invoked.

virtual void ProcessFocusLost ()

Performs processing when the widget loses focus before notification callbacks are invoked.

virtual void ProcessKeyboardInput (WidgetKeyboardEventArgs args)

Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.

virtual bool ShouldDispatchPointerClick (WidgetPointerEventArgs args)

Determines whether a pointer-click event should be dispatched for the specified pointer event data.

virtual void OnShown ()

Called when the widget is shown.

virtual void OnHidden ()

Called when the widget is hidden.

virtual void OnActivated ()

Called when the widget is activated.

virtual void OnCancelled ()

Called when the widget is cancelled.

virtual void OnPointerEnter (WidgetPointerEventArgs args)

Called when a pointer enters the widget bounds.

virtual void OnPointerLeave (WidgetPointerEventArgs args)

Called when a pointer leaves the widget bounds.

virtual void OnPointerDown (WidgetPointerEventArgs args)

Called when a pointer press begins on the widget.

virtual void OnPointerMove (WidgetPointerEventArgs args)

Called when pointer movement is routed to the widget.

virtual void OnPointerUp (WidgetPointerEventArgs args)

Called when a pointer press is released for the widget.

virtual void OnMouseWheel (WidgetMouseWheelEventArgs args)

Called when mouse-wheel input is routed to the widget.

virtual void OnPointerClick (WidgetPointerEventArgs args)

Called when a pointer click is dispatched to the widget.

virtual void OnFocusGained ()

Called when the widget gains focus.

virtual void OnFocusLost ()

Called when the widget loses focus.

virtual void OnKeyboardInput (WidgetKeyboardEventArgs args)

Called when keyboard input is routed to the widget.

Properties
IReadOnlyList< WidgetBase >	ChildWidgets `[get]`
	Gets a snapshot of the child widgets directly owned by this container.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused `[get, set]`
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier of the composite.
string?	Nickname `[get]`
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode `[get]`
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer shared by all children in scene-layer mode.
View?	View `[get]`
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children `[get]`
	Gets the children owned by the composite.
MovementController	Movement `[get]`
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace `[get]`
	Gets the coordinate space used by the movement controller.
bool	Visible `[get, set]`
	Gets or sets the visibility of all descendants.
int	ZOrder `[get]`
	Gets the composite Z-order.
Rectangle	ScreenBounds `[get]`
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds `[get]`
	Gets the union of all visible descendants' world-space bounds.

Additional Inherited Members
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Provides a widget that can own other widgets through the inherited DirectComposite child system.

Direct-drawing children and widget children share the same composite anchor, offset storage, target validation, movement, and disposal ownership. Widget children additionally participate in lifecycle propagation and keyboard-input bubbling.

Definition at line 18 of file ContainerWidget.cs.

Constructor & Destructor Documentation

◆ ContainerWidget()

Gondwana.Widgets.ContainerWidget.ContainerWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		DirectDrawingMode	mode,
		PointF	anchor = default,
		string?	nickname = null )

protected

Initializes a new instance of the ContainerWidget class.

Parameters

renderSurfaceHost	The render surface host that owns the widget.
mode	The drawing mode used by the widget and its children.
anchor	The widget anchor in mode-appropriate pixels.
nickname	An optional diagnostic nickname.

Definition at line 39 of file ContainerWidget.cs.

Member Function Documentation

◆ Add()

override DirectComposite Gondwana.Widgets.ContainerWidget.Add	(	IDirectCompositeChild	child,
		bool	keepCurrentOffset = true,
		Vector2?	explicitLocalOffsetPx = null )

virtual

Adds a composite-compatible direct drawable as a child.

Parameters

child	The child to add.
keepCurrentOffset	`true` to preserve the child's current offset from the composite anchor.
explicitLocalOffsetPx	The offset to use when keepCurrentOffset is `false`.

Returns: The current composite.

Exceptions

ArgumentException	Thrown when the child uses another render surface, mode, view, or scene layer.
InvalidOperationException	Thrown when the child already has another parent or would create a cycle.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Reimplemented in Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 61 of file ContainerWidget.cs.

◆ Add< TWidget >()

TWidget Gondwana.Widgets.ContainerWidget.Add< TWidget >	(	TWidget	widget,
		Vector2	localOffsetPx )

protected

Adds a child widget at a local offset from this container's anchor.

Template Parameters

TWidget The child widget type.

Parameters

widget	The widget to add.
localOffsetPx	The local offset from the container anchor.

Returns: The added widget.

Type Constraints

TWidget

:

WidgetBase

Definition at line 130 of file ContainerWidget.cs.

◆ Clear()

override DirectComposite Gondwana.Widgets.ContainerWidget.Clear ( )

virtual

Removes every child without disposing them.

Returns: The current composite.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Reimplemented in Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 102 of file ContainerWidget.cs.

◆ OnChildAdded()

override void Gondwana.Widgets.ContainerWidget.OnChildAdded ( IDirectCompositeChild child )

protectedvirtual

Called after a child has been successfully added.

Parameters

child The child that was added.

Overrides should perform only non-throwing bookkeeping. Derived types that need additional validation should override Add, perform that validation before calling the base implementation, and then allow this callback to perform the resulting bookkeeping.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 177 of file ContainerWidget.cs.

◆ OnChildRemoved()

override void Gondwana.Widgets.ContainerWidget.OnChildRemoved ( IDirectCompositeChild child )

protectedvirtual

Called after a child has been removed from the composite.

Parameters

child The child that was removed.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Definition at line 187 of file ContainerWidget.cs.

◆ ProcessActivated()

override void Gondwana.Widgets.ContainerWidget.ProcessActivated ( )

protectedvirtual

Performs processing when the widget is activated before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Reimplemented in Gondwana.Widgets.Controls.TabControlWidget, and Gondwana.Widgets.Dialogs.DialogBox.

Definition at line 219 of file ContainerWidget.cs.

◆ ProcessCancelled()

override void Gondwana.Widgets.ContainerWidget.ProcessCancelled ( )

protectedvirtual

Performs processing when the widget is cancelled before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Reimplemented in Gondwana.Widgets.DraggableContainerWidget.

Definition at line 230 of file ContainerWidget.cs.

◆ ProcessHidden()

override void Gondwana.Widgets.ContainerWidget.ProcessHidden ( )

protectedvirtual

Performs processing when the widget is hidden before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Reimplemented in Gondwana.Widgets.Controls.TabControlWidget, Gondwana.Widgets.DraggableContainerWidget, Gondwana.Widgets.Hud.ProfilerWidget, Gondwana.Widgets.Menus.MenuBarWidget, and Gondwana.Widgets.Menus.MenuDropDownWidget.

Definition at line 208 of file ContainerWidget.cs.

◆ ProcessShown()

override void Gondwana.Widgets.ContainerWidget.ProcessShown ( )

protectedvirtual

Performs processing when the widget is shown before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Reimplemented in Gondwana.Widgets.Controls.TabControlWidget, Gondwana.Widgets.Hud.ProfilerWidget, Gondwana.Widgets.Menus.MenuBarWidget, and Gondwana.Widgets.Menus.MenuDropDownWidget.

Definition at line 197 of file ContainerWidget.cs.

◆ Remove()

override DirectComposite Gondwana.Widgets.ContainerWidget.Remove ( IDirectCompositeChild child )

virtual

Removes a child without disposing it.

Parameters

child The child to detach.

Returns: The current composite.

Reimplemented from Gondwana.Drawing.Direct.DirectComposite.

Reimplemented in Gondwana.Widgets.Layout.StackPanelWidget.

Definition at line 86 of file ContainerWidget.cs.

◆ RemoveChild()

bool Gondwana.Widgets.ContainerWidget.RemoveChild	(	WidgetBase	widget,
		bool	dispose = false )

protected

Removes a child widget from the container.

Parameters

widget	The widget to remove.
dispose	`true` to dispose the child after detaching it; otherwise, `false`.

Returns: true when the widget was a direct child; otherwise, false.

Definition at line 159 of file ContainerWidget.cs.

Property Documentation

◆ ChildWidgets

IReadOnlyList<WidgetBase> Gondwana.Widgets.ContainerWidget.ChildWidgets

get

Gets a snapshot of the child widgets directly owned by this container.

Definition at line 54 of file ContainerWidget.cs.

Public Member Functions

Protected Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ContainerWidget()

Member Function Documentation

◆ Add()

◆ Add< TWidget >()

◆ Clear()

◆ OnChildAdded()

◆ OnChildRemoved()

◆ ProcessActivated()

◆ ProcessCancelled()

◆ ProcessHidden()

◆ ProcessShown()

◆ Remove()

◆ RemoveChild()

Property Documentation

◆ ChildWidgets
