Gondwana.Drawing.Direct.TextBlock Class Reference

A retained-mode text drawable with wrapping, multi-line (
) support, horizontal/vertical alignment, padding, optional shadow/outline effects, and auto-shrink to fit. More...

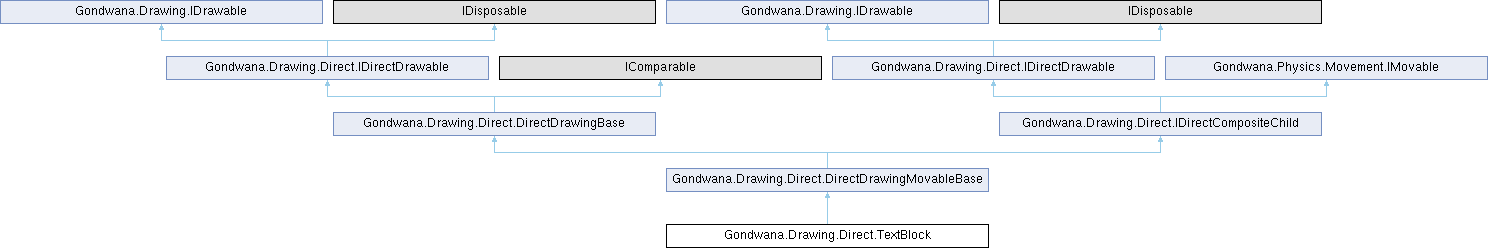

Inheritance diagram for Gondwana.Drawing.Direct.TextBlock:

Public Types
enum	VerticalAlign { Top , Center , Bottom }
	Vertical alignment options for multi-line text within the control's bounds. More...
enum	PulseWave { Sine , Triangle }
	Selects the waveform used by PulseColor(Color, Color, float, bool, bool). More...
enum	TextRevealMode { None , CharactersPerSecond , WordsPerSecond , ManualCount }
	Describes the mode used for revealing text over time. More...
Public Types inherited from Gondwana.Drawing.Direct.DirectDrawingBase
enum	RevealDirection { LeftToRight , RightToLeft , TopToBottom , BottomToTop }
	Defines the direction from which a reveal animation progressively displays the direct drawing. More...

Public Member Functions
	TextBlock (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, View? view, Rectangle worldBounds, string? nickname=null)
	Creates a new TextBlock that draws in world space on the specified scene layer.
	TextBlock (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? nickname=null)
	Creates a new TextBlock that draws in screen space relative to a view.
float	MeasureMaximumVerticalScrollOffsetPx ()
	Measures the maximum vertical scroll offset required to expose all currently laid-out text.
TextBlock	SetPadding (float horizontal, float vertical)
	Sets symmetric horizontal and vertical padding and invalidates cached layout.
TextBlock	SetSize (Size size)
	Sets the text-block size while preserving its current position and invalidates cached layout.
TextBlock	SetText (string text)
	Sets the current text content and rebuilds layout as needed. If no reveal animation is active, the text is shown fully. If a reveal animation is active, the target length is synced to the new text.
TextBlock	SetFont (SKTypeface typeface, float size, float? minSize=null)
	Sets the font face and size (and optional minimum size for auto-shrink).
TextBlock	SetColors (SKColor fg, SKColor bg)
	Sets the foreground (text) and background colors using Skia colors.
TextBlock	SetColors (Color fg, Color bg)
	Sets the foreground (text) and background colors using System.Drawing colors.
TextBlock	SetAlignment (SKTextAlign h, VerticalAlign v)
	Sets the horizontal and vertical alignment used when drawing the laid-out lines within the bounds.
TextBlock	UseShadow (bool enable=true)
	Enables or disables drawing a drop shadow behind the text (parameters are configured via SetShadow(float, float, byte, float)).
TextBlock	SetShadow (float dx, float dy, byte alpha=128, float blurSigma=1.5f)
	Configures the drop shadow effect for text rendering.
TextBlock	UseOutline (bool enable=true)
	Enables or disables a 1-pixel outline stroke around the text glyphs.
TextBlock	EnableWrapping (bool enable=true)
	Enables or disables word wrapping when laying out paragraphs.
TextBlock	SetMaxLines (int? maxLines)
	Sets a maximum number of lines to draw. If null, all laid-out lines are drawn.
TextBlock	PulseColor (Color from, Color to, float periodSec, bool enabled=true, bool triangle=false)
	Animates the text color between from and to over periodSec seconds.
TextBlock	StopColorPulse ()
	Stops text color pulsing and restores the base foreground color.
TextBlock	StartTypewriter (float charsPerSecond, int? maxChars=null, bool enablePauses=true, float longPauseSec=0.25f, float shortPauseSec=0.10f)
	Begins a character-by-character reveal (typewriter effect).
TextBlock	StartWordReveal (float wordsPerSecond, bool enablePauses=true, float longPauseSec=0.25f, float shortPauseSec=0.10f)
	Begins a word-by-word reveal. Words are detected by \S+\s* and include their trailing whitespace/punctuation.
TextBlock	SetPunctuationPauses (bool enabled, float longPauseSec=0.25f, float shortPauseSec=0.10f)
	Configures punctuation pause behavior used by the current or next reveal animation.
TextBlock	RevealSetCount (int charCount)
	Sets the currently revealed character count directly (manual mode).
TextBlock	RevealStop ()
	Stops any active reveal animation and shows the full text immediately.
override void	Update (long tick)
	Advances internal animations (pulse, typewriter/word reveal) based on the current tick, and then allows the base class to progress fade and bookkeeping. Called once per frame.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
Vector2	GetPosition ()
	Gets the current position of this direct drawing in pixel coordinates.
void	SetPosition (Vector2 p)
	Sets the position of this direct drawing to the specified pixel coordinates.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
RectangleF	GetDrawLocationScreen (View view)
	Gets the screen-space drawing location for this direct drawing as seen from the specified view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders this direct drawing to the backbuffer at the specified screen location.
DirectDrawingBase	SetOpacity (float opacity)
	Instantly sets the opacity to the specified value without animation.
DirectDrawingBase	FadeTo (float targetOpacity, float durationSec)
	Initiates a smooth fade transition to the specified target opacity over the given duration.
DirectDrawingBase	FadeIn (float durationSec)
	Fades this direct drawing from its current opacity to fully opaque over the specified duration.
DirectDrawingBase	FadeOut (float durationSec)
	Fades this direct drawing from its current opacity to fully transparent over the specified duration.
DirectDrawingBase	CancelFade ()
	Cancels any active fade transition, leaving the opacity at its current value.
DirectDrawingBase	SetReveal (float t01)
	Instantly sets the reveal progress to the specified value without animation.
DirectDrawingBase	SetRevealDirection (RevealDirection dir)
	Sets the direction from which the reveal animation progresses.
DirectDrawingBase	RevealTo (float t01, float durationSec, Func< float, float >? easing=null)
	Initiates a smooth reveal animation to the specified target progress over the given duration, optionally using a custom easing function.
DirectDrawingBase	CancelReveal ()
	Stops an active reveal animation at its current progress.
int	CompareTo (DirectDrawingBase? other)
	Compares this direct drawing to another for sorting by ZOrder.
void	Dispose ()
	Releases all resources used by this DirectDrawingBase instance.
override bool	Equals (object? obj)
	Determines whether the specified object is equal to the current direct drawing.
override int	GetHashCode ()
	Returns a hash code for this direct drawing.

Protected Member Functions
override void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Draws the laid-out text block contents into the destination rectangle.
override void	Dispose (bool disposing)
	Releases managed resources used by the text block.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
	DirectDrawingMovableBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? name=null)
	Initializes a new instance of the DirectDrawingMovableBase class with integrated movement capabilities.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs the concrete drawing for this direct drawing to the backbuffer.
	DirectDrawingBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? nickname=null)
	Initializes a new instance of the DirectDrawingBase class.

Properties
float	LineSpacingMultiplier = 1.0f [get, set]
	Gets or sets a scale factor applied to the computed line height (1.0 = natural spacing).
float	HorizontalPadding = 0f [get, set]
	Gets or sets the horizontal padding (in pixels) on both left and right sides of the text.
float	VerticalPadding = 0f [get, set]
	Gets or sets the vertical padding (in pixels) on both top and bottom sides of the text.
float	VerticalScrollOffsetPx [get, set]
	Gets or sets the vertical text-content scroll offset in native pixels.
float	VerticalScrollEndPaddingPx [get, set]
	Gets or sets extra scrollable space after the final laid-out line.
string	Text [get]
	Gets the current raw text content.
List< string >	Lines [get]
	Gets the laid-out lines (after wrapping and paragraph processing).
float	LineHeight [get]
	Gets the measured line height (in pixels) used for drawing.
SKColor	ForeColor [get]
	Gets the configured foreground (text) color.
SKColor	BackColor [get]
	Gets the configured background color.
float	FontSize [get]
	Gets the requested font size (before any auto-shrink adjustments).
float?	MinFontSize [get]
	Gets the optional minimum font size used by auto-shrink (or null if disabled).
SKTypeface?	TypeFace [get]
	Gets the configured typeface (or null to use SKTypeface.Default).
bool	OutlineEnabled [get]
	Gets a value indicating whether an outline stroke is enabled.
bool	WrapText [get]
	Gets a value indicating whether word wrapping is enabled.
int?	MaxLines [get]
	Gets the optional maximum number of lines to draw (or null for no limit).
bool	ShadowEnabled [get]
	Gets a value indicating whether a drop shadow is enabled.
float	ShadowDx [get]
	Gets the horizontal shadow offset (in pixels).
float	ShadowDy [get]
	Gets the vertical shadow offset (in pixels).
byte	ShadowAlpha [get]
	Gets the shadow opacity (0-255).
float	ShadowBlurSigma [get]
	Gets the blur radius for the shadow (sigma, in pixels).
SKTextAlign	AlignHoriz [get]
	Gets the horizontal alignment used when drawing lines.
VerticalAlign	AlignVert [get]
	Gets the vertical alignment used when drawing lines.
bool	PulseTextEnabled [get]
	Gets a value indicating whether color pulsing is enabled.
SKColor	PulseFrom [get]
	Gets the starting color for the pulse effect.
SKColor	PulseTo [get]
	Gets the ending color for the pulse effect.
float	PulsePeriodSec [get]
	Gets the pulse period in seconds.
PulseWave	PulseWaveValue [get]
	Gets the pulse waveform currently in use.
TextRevealMode	TextRevealModeValue [get]
	Gets the active text reveal mode.
float	TextRevealRate [get]
	Gets the configured reveal rate (characters/sec or words/sec depending on mode).
bool	PuctuationPauseEnabled [get]
	Gets a value indicating whether punctuation pauses are enabled.
float	PunctuationPauseLongSec [get]
	Gets the long punctuation pause duration (seconds) used for '.', '!', '?'.
float	PunctuationPauseShortSec [get]
	Gets the short punctuation pause duration (seconds) used for ',', ';', ':'.
SKColor	ResolvedForeColor [get]
	Gets the currently resolved (effective) foreground color used for drawing.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
MovementController	Movement [get]
	Gets the movement controller responsible for changing this direct drawing's position over time.
MovementSpace	PositionSpace [get]
	Gets the coordinate space in which this movable object's position is expressed.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingBase
bool	HideWhenFullyTransparent = true [get, set]
	Gets or sets a value indicating whether this direct drawing should be automatically hidden when its opacity reaches zero during fade transitions.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host that manages this direct drawing's rendering pipeline.
DirectDrawingMode	Mode [get]
	Gets the drawing mode that determines how this direct drawing is positioned and transformed.
SceneLayer?	SceneLayer [get]
	Gets the scene layer to which this direct drawing is attached, or null if the drawing is in view mode.
View?	View [get]
	Gets the view to which this direct drawing is attached, or null if the drawing is in scene-layer mode.
Rectangle	ScreenBounds [get, set]
	Gets or sets the screen-space bounds of this direct drawing in pixels.
Rectangle	WorldBounds [get, set]
	Gets or sets the world-space bounds of this direct drawing in pixels.
TypedValueBag	ValueBag = new() [get]
	Gets the extensible value bag for storing arbitrary key-value data associated with this direct drawing.
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier for this direct drawing.
string?	Nickname [get]
	Gets the optional human-readable name for this direct drawing.
int	ZOrder [get, set]
	Gets or sets the Z-order (depth) used for sorting this direct drawing relative to other drawables.
bool	Visible [get, set]
	Gets or sets a value indicating whether this direct drawing is visible and should be rendered.
float	Opacity [get, set]
	Gets or sets the current opacity of this direct drawing.
Properties inherited from Gondwana.Drawing.Direct.IDirectCompositeChild
SceneLayer?	SceneLayer [get]
	Gets the scene layer used by a scene-layer child, or null for a view child.
View?	View [get]
	Gets the view used by a view child, or null for a scene-layer child.

Events
Action< string >?	TextRevealed
	Raised whenever the revealed text portion advances. The argument is the cumulative text currently revealed (substring from start to visible character count).
Action< string >?	TextRevealComplete
	Raised once when the reveal completes. Argument is the full text content. Note: when the final chunk is revealed this class will raise TextRevealed first, then TextRevealComplete.
Events inherited from Gondwana.Drawing.Direct.DirectDrawingBase
EventHandler< IDirectDrawable >?	Disposing
	Occurs when this direct drawing is being disposed.
EventHandler< DirectDrawingBase >?	FadeToCompleted
	Occurs when a fade transition initiated by FadeTo, FadeIn, or FadeOut completes.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Additional Inherited Members
Static Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
static bool	operator== (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are equal using reference equality.
static bool	operator!= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are not equal using reference equality.
static bool	operator< (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than the right.
static bool	operator<= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than or equal to the right.
static bool	operator> (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than the right.
static bool	operator>= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than or equal to the right.
Protected Attributes inherited from Gondwana.Drawing.Direct.DirectDrawingBase
readonly RenderSurfaceHostBase	_renderSurfaceHost
	The render surface host that manages this direct drawing's rendering pipeline.
Rectangle	_screenBounds
	The current screen-space bounds for view-mode direct drawings, in pixels.
Rectangle	_worldBounds
	The current world-space bounds for scene-layer-mode direct drawings, in pixels.
int	_zOrder
	The Z-order used for draw sorting. Higher values draw later (on top).
bool	_visible
	Indicates whether this direct drawing is currently visible and should be rendered.
long	_lastTick = HighResTimer.GetCurrentTick()
	The last engine tick value used for delta-time calculations in Update.

Detailed Description

A retained-mode text drawable with wrapping, multi-line (
) support, horizontal/vertical alignment, padding, optional shadow/outline effects, and auto-shrink to fit.

TextBlock caches a line layout derived from the current text, font, bounds, and wrapping settings, and only rebuilds when any of those change. Newlines (
) are respected as hard breaks; long lines wrap to the available width when wrapping is enabled.

Horizontal alignment (left/center/right) and vertical alignment (top/center/bottom) are applied per frame. Optional background fill, shadow, and outline can be enabled for readability. When a minimum font size is specified, the control will step down from the requested size until the text fits within the height or the minimum is reached.

// Centered, wrapped headline with shadow and outline var headline = new TextBlock(surface, new Rectangle(0, 0, 640, 140)) .SetText("Gondwana welcomes you\n- render boldly.") .SetFont(SKTypeface.Default, 28f, minSize: 16f) .SetColors(SKColors.White, SKColors.Transparent) .SetAlignment(SKTextAlign.Center, TextBlock.VerticalAlign.Center) .EnableWrapping(true) .SetMaxLines(3) .UseShadow(true) .UseOutline(true);

Definition at line 43 of file TextBlock.cs.

Member Enumeration Documentation

PulseWave

enum Gondwana.Drawing.Direct.TextBlock.PulseWave

Selects the waveform used by PulseColor(Color, Color, float, bool, bool).

Enumerator
Sine	Sine wave: smooth continuous pulse between colors.
Triangle	Triangle wave: linear fade-in/out between colors.

Definition at line 1244 of file TextBlock.cs.

TextRevealMode

enum Gondwana.Drawing.Direct.TextBlock.TextRevealMode

Describes the mode used for revealing text over time.

Enumerator
None	No reveal is active; all text is shown.
CharactersPerSecond	Reveal advances by characters per second.
WordsPerSecond	Reveal advances by words per second.
ManualCount	Reveal amount is controlled directly via RevealSetCount(int).

Definition at line 1255 of file TextBlock.cs.

VerticalAlign

enum Gondwana.Drawing.Direct.TextBlock.VerticalAlign

Vertical alignment options for multi-line text within the control's bounds.

Enumerator
Top	Align text to the top of the inner content area.
Center	Center text vertically within the inner content area.
Bottom	Align text to the bottom of the inner content area.

Definition at line 48 of file TextBlock.cs.

Constructor & Destructor Documentation

TextBlock() [1/2]

Gondwana.Drawing.Direct.TextBlock.TextBlock	(	RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		View?	view,
		Rectangle	worldBounds,
		string?	nickname = null )

Creates a new TextBlock that draws in world space on the specified scene layer.

Parameters

renderSurfaceHost	The render surface host that owns this direct drawing.
sceneLayer	The scene layer used for world-space positioning and refresh.
view	The optional view associated with the text block.
worldBounds	The text block bounds in world coordinates.
nickname	An optional nickname used to identify the text block.

Definition at line 161 of file TextBlock.cs.

TextBlock() [2/2]

Gondwana.Drawing.Direct.TextBlock.TextBlock	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	nickname = null )

Creates a new TextBlock that draws in screen space relative to a view.

Parameters

renderSurfaceHost	The render surface host that owns this direct drawing.
view	The view the text block is associated with.
screenBounds	The text block bounds in screen coordinates.
nickname	An optional nickname used to identify the text block.

Definition at line 182 of file TextBlock.cs.

Member Function Documentation

Dispose()

override void Gondwana.Drawing.Direct.TextBlock.Dispose ( bool disposing )

protectedvirtual

Releases managed resources used by the text block.

Parameters

disposing

true when disposing managed resources; otherwise, false.

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingBase.

Definition at line 1273 of file TextBlock.cs.

EnableWrapping()

TextBlock Gondwana.Drawing.Direct.TextBlock.EnableWrapping

(

bool

enable = true

)

Enables or disables word wrapping when laying out paragraphs.

Parameters

enable

True to wrap text to the available width; false to keep each paragraph on one line.

Returns

The current TextBlock for chaining.

Definition at line 503 of file TextBlock.cs.

MeasureMaximumVerticalScrollOffsetPx()

float Gondwana.Drawing.Direct.TextBlock.MeasureMaximumVerticalScrollOffsetPx

(

)

Measures the maximum vertical scroll offset required to expose all currently laid-out text.

Returns

The maximum scroll offset in the text block's native coordinate units, or zero when the laid-out text fits within the available content height.

Definition at line 263 of file TextBlock.cs.

OnDraw()

override void Gondwana.Drawing.Direct.TextBlock.OnDraw ( BackbufferBase backbuffer, RectangleF destRectScreen )

protected

Draws the laid-out text block contents into the destination rectangle.

Parameters

backbuffer	The backbuffer that provides the target drawing surface.
destRectScreen	The destination rectangle in screen space.

Definition at line 826 of file TextBlock.cs.

PulseColor()

TextBlock Gondwana.Drawing.Direct.TextBlock.PulseColor	(	Color	from,
		Color	to,
		float	periodSec,
		bool	enabled = true,
		bool	triangle = false )

Animates the text color between from and to over periodSec seconds.

Parameters

from	Starting text color.
to	Ending text color.
periodSec	Time in seconds for one full pulse cycle.
enabled	True to enable pulsing; false to disable.
triangle	True to use a triangle waveform; otherwise a sine wave is used.

Returns

The current TextBlock for chaining.

Definition at line 532 of file TextBlock.cs.

RevealSetCount()

TextBlock Gondwana.Drawing.Direct.TextBlock.RevealSetCount

(

int

charCount

)

Sets the currently revealed character count directly (manual mode).

Parameters

charCount

The number of characters (from the start of the text) to show.

Returns

The current TextBlock for chaining.

Definition at line 647 of file TextBlock.cs.

RevealStop()

TextBlock Gondwana.Drawing.Direct.TextBlock.RevealStop

(

)

Stops any active reveal animation and shows the full text immediately.

Returns

The current TextBlock for chaining.

Definition at line 660 of file TextBlock.cs.

SetAlignment()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetAlignment	(	SKTextAlign	h,
		VerticalAlign	v )

Sets the horizontal and vertical alignment used when drawing the laid-out lines within the bounds.

Parameters

h	Horizontal alignment (Left, Center, Right).
v	Vertical alignment (Top, Center, Bottom).

Returns

The current TextBlock for chaining.

Definition at line 433 of file TextBlock.cs.

SetColors() [1/2]

TextBlock Gondwana.Drawing.Direct.TextBlock.SetColors	(	Color	fg,
		Color	bg )

Sets the foreground (text) and background colors using System.Drawing colors.

Parameters

fg	Text color.
bg	Background color (drawn as a solid rect if alpha > 0).

Returns

The current TextBlock for chaining.

SetColors() [2/2]

TextBlock Gondwana.Drawing.Direct.TextBlock.SetColors	(	SKColor	fg,
		SKColor	bg )

Sets the foreground (text) and background colors using Skia colors.

Parameters

fg	Text color.
bg	Background color (drawn as a solid rect if alpha > 0).

Returns

The current TextBlock for chaining.

Definition at line 410 of file TextBlock.cs.

SetFont()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetFont	(	SKTypeface	typeface,
		float	size,
		float?	minSize = null )

Sets the font face and size (and optional minimum size for auto-shrink).

Parameters

typeface	Typeface to use; defaults to SKTypeface.Default if null.
size	Requested font size in pixels.
minSize	Optional minimum size for auto-shrink; if set, layout will step down to fit height.

Returns

The current TextBlock for chaining.

Definition at line 394 of file TextBlock.cs.

SetMaxLines()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetMaxLines

(

int?

maxLines

)

Sets a maximum number of lines to draw. If null, all laid-out lines are drawn.

Parameters

maxLines

Maximum visible lines, or null for no limit.

Returns

The current TextBlock for chaining.

Definition at line 516 of file TextBlock.cs.

SetPadding()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetPadding	(	float	horizontal,
		float	vertical )

Sets symmetric horizontal and vertical padding and invalidates cached layout.

Parameters

horizontal	Horizontal padding in pixels for both left and right sides.
vertical	Vertical padding in pixels for both top and bottom sides.

Returns

The current TextBlock for chaining.

Definition at line 317 of file TextBlock.cs.

SetPunctuationPauses()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetPunctuationPauses	(	bool	enabled,
		float	longPauseSec = 0::25f,
		float	shortPauseSec = 0::10f )

Configures punctuation pause behavior used by the current or next reveal animation.

Parameters

enabled	True to enable punctuation pauses; false to disable.
longPauseSec	Pause after '.', '!', or '?' (seconds).
shortPauseSec	Pause after ',', ';', or ':' (seconds).

Returns

The current TextBlock for chaining.

Definition at line 634 of file TextBlock.cs.

SetShadow()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetShadow	(	float	dx,
		float	dy,
		byte	alpha = 128,
		float	blurSigma = 1::5f )

Configures the drop shadow effect for text rendering.

Parameters

dx	Horizontal offset in pixels for the shadow. Positive values move the shadow right, negative left.
dy	Vertical offset in pixels for the shadow. Positive values move the shadow down, negative up.
alpha	Opacity of the shadow (0-255). Higher values make the shadow darker and more opaque.
blurSigma	Blur radius in pixels for the shadow's softness. Set to 0 for a hard shadow. Typical range: 1.0-3.0.

Call this after UseShadow(bool) to fine-tune the offset, opacity, and blur strength of the text shadow. This method sets the internal paint values and marks the text block as dirty so it will be redrawn on the next render pass.

Returns

The current TextBlock instance for method chaining.

Definition at line 476 of file TextBlock.cs.

SetSize()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetSize

(

Size

size

)

Sets the text-block size while preserving its current position and invalidates cached layout.

Parameters

size	The new text-block size.

Returns

The current TextBlock for chaining.

Definition at line 336 of file TextBlock.cs.

SetText()

TextBlock Gondwana.Drawing.Direct.TextBlock.SetText

(

string

text

)

Sets the current text content and rebuilds layout as needed. If no reveal animation is active, the text is shown fully. If a reveal animation is active, the target length is synced to the new text.

Parameters

text	The new text to display (null is treated as an empty string).

Returns

The current TextBlock for chaining.

Definition at line 358 of file TextBlock.cs.

StartTypewriter()

TextBlock Gondwana.Drawing.Direct.TextBlock.StartTypewriter	(	float	charsPerSecond,
		int?	maxChars = null,
		bool	enablePauses = true,
		float	longPauseSec = 0::25f,
		float	shortPauseSec = 0::10f )

Begins a character-by-character reveal (typewriter effect).

Parameters

charsPerSecond	Characters per second to reveal.
maxChars	Optional cap on total characters to reveal; defaults to the full text length.
enablePauses	True to add punctuation pauses during reveal; false for uniform pacing.
longPauseSec	Pause added after '.', '!', or '?' characters (seconds).
shortPauseSec	Pause added after ',', ';', or ':' characters (seconds).

Returns

The current TextBlock for chaining.

Definition at line 567 of file TextBlock.cs.

StartWordReveal()

TextBlock Gondwana.Drawing.Direct.TextBlock.StartWordReveal	(	float	wordsPerSecond,
		bool	enablePauses = true,
		float	longPauseSec = 0::25f,
		float	shortPauseSec = 0::10f )

Begins a word-by-word reveal. Words are detected by \S+\s* and include their trailing whitespace/punctuation.

Parameters

wordsPerSecond	Words per second to reveal.
enablePauses	True to add punctuation pauses during reveal; false for uniform pacing.
longPauseSec	Pause added after '.', '!', or '?' characters (seconds).
shortPauseSec	Pause added after ',', ';', or ':' characters (seconds).

Returns

The current TextBlock for chaining.

Definition at line 599 of file TextBlock.cs.

StopColorPulse()

TextBlock Gondwana.Drawing.Direct.TextBlock.StopColorPulse

(

)

Stops text color pulsing and restores the base foreground color.

Returns

The current TextBlock for chaining.

Definition at line 550 of file TextBlock.cs.

Update()

override void Gondwana.Drawing.Direct.TextBlock.Update ( long tick )

virtual

Advances internal animations (pulse, typewriter/word reveal) based on the current tick, and then allows the base class to progress fade and bookkeeping. Called once per frame.

Parameters

tick	High-resolution tick value for this frame.

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingMovableBase.

Definition at line 690 of file TextBlock.cs.

UseOutline()

TextBlock Gondwana.Drawing.Direct.TextBlock.UseOutline

(

bool

enable = true

)

Enables or disables a 1-pixel outline stroke around the text glyphs.

Parameters

enable

True to enable an outline; false to disable.

Returns

The current TextBlock for chaining.

Definition at line 491 of file TextBlock.cs.

UseShadow()

TextBlock Gondwana.Drawing.Direct.TextBlock.UseShadow

(

bool

enable = true

)

Enables or disables drawing a drop shadow behind the text (parameters are configured via SetShadow(float, float, byte, float)).

Parameters

enable

True to enable the shadow; false to disable.

Returns

The current TextBlock for chaining.

Definition at line 446 of file TextBlock.cs.

Property Documentation

AlignHoriz

SKTextAlign Gondwana.Drawing.Direct.TextBlock.AlignHoriz

get

Gets the horizontal alignment used when drawing lines.

Definition at line 1201 of file TextBlock.cs.

AlignVert

VerticalAlign Gondwana.Drawing.Direct.TextBlock.AlignVert

get

Gets the vertical alignment used when drawing lines.

Definition at line 1204 of file TextBlock.cs.

BackColor

SKColor Gondwana.Drawing.Direct.TextBlock.BackColor

get

Gets the configured background color.

Definition at line 1165 of file TextBlock.cs.

FontSize

float Gondwana.Drawing.Direct.TextBlock.FontSize

get

Gets the requested font size (before any auto-shrink adjustments).

Definition at line 1168 of file TextBlock.cs.

ForeColor

SKColor Gondwana.Drawing.Direct.TextBlock.ForeColor

get

Gets the configured foreground (text) color.

Definition at line 1162 of file TextBlock.cs.

HorizontalPadding

float Gondwana.Drawing.Direct.TextBlock.HorizontalPadding = 0f

getset

Gets or sets the horizontal padding (in pixels) on both left and right sides of the text.

Definition at line 203 of file TextBlock.cs.

LineHeight

float Gondwana.Drawing.Direct.TextBlock.LineHeight

get

Gets the measured line height (in pixels) used for drawing.

Definition at line 1159 of file TextBlock.cs.

Lines

List<string> Gondwana.Drawing.Direct.TextBlock.Lines

get

Gets the laid-out lines (after wrapping and paragraph processing).

Definition at line 1156 of file TextBlock.cs.

LineSpacingMultiplier

float Gondwana.Drawing.Direct.TextBlock.LineSpacingMultiplier = 1.0f

getset

Gets or sets a scale factor applied to the computed line height (1.0 = natural spacing).

Definition at line 198 of file TextBlock.cs.

MaxLines

int? Gondwana.Drawing.Direct.TextBlock.MaxLines

get

Gets the optional maximum number of lines to draw (or null for no limit).

Definition at line 1183 of file TextBlock.cs.

MinFontSize

float? Gondwana.Drawing.Direct.TextBlock.MinFontSize

get

Gets the optional minimum font size used by auto-shrink (or null if disabled).

Definition at line 1171 of file TextBlock.cs.

OutlineEnabled

bool Gondwana.Drawing.Direct.TextBlock.OutlineEnabled

get

Gets a value indicating whether an outline stroke is enabled.

Definition at line 1177 of file TextBlock.cs.

PuctuationPauseEnabled

bool Gondwana.Drawing.Direct.TextBlock.PuctuationPauseEnabled

get

Gets a value indicating whether punctuation pauses are enabled.

Definition at line 1228 of file TextBlock.cs.

PulseFrom

SKColor Gondwana.Drawing.Direct.TextBlock.PulseFrom

get

Gets the starting color for the pulse effect.

Definition at line 1210 of file TextBlock.cs.

PulsePeriodSec

float Gondwana.Drawing.Direct.TextBlock.PulsePeriodSec

get

Gets the pulse period in seconds.

Definition at line 1216 of file TextBlock.cs.

PulseTextEnabled

bool Gondwana.Drawing.Direct.TextBlock.PulseTextEnabled

get

Gets a value indicating whether color pulsing is enabled.

Definition at line 1207 of file TextBlock.cs.

PulseTo

SKColor Gondwana.Drawing.Direct.TextBlock.PulseTo

get

Gets the ending color for the pulse effect.

Definition at line 1213 of file TextBlock.cs.

PulseWaveValue

PulseWave Gondwana.Drawing.Direct.TextBlock.PulseWaveValue

get

Gets the pulse waveform currently in use.

Definition at line 1219 of file TextBlock.cs.

PunctuationPauseLongSec

float Gondwana.Drawing.Direct.TextBlock.PunctuationPauseLongSec

get

Gets the long punctuation pause duration (seconds) used for '.', '!', '?'.

Definition at line 1231 of file TextBlock.cs.

PunctuationPauseShortSec

float Gondwana.Drawing.Direct.TextBlock.PunctuationPauseShortSec

get

Gets the short punctuation pause duration (seconds) used for ',', ';', ':'.

Definition at line 1234 of file TextBlock.cs.

ResolvedForeColor

SKColor Gondwana.Drawing.Direct.TextBlock.ResolvedForeColor

get

Gets the currently resolved (effective) foreground color used for drawing.

Definition at line 1237 of file TextBlock.cs.

ShadowAlpha

byte Gondwana.Drawing.Direct.TextBlock.ShadowAlpha

get

Gets the shadow opacity (0-255).

Definition at line 1195 of file TextBlock.cs.

ShadowBlurSigma

float Gondwana.Drawing.Direct.TextBlock.ShadowBlurSigma

get

Gets the blur radius for the shadow (sigma, in pixels).

Definition at line 1198 of file TextBlock.cs.

ShadowDx

float Gondwana.Drawing.Direct.TextBlock.ShadowDx

get

Gets the horizontal shadow offset (in pixels).

Definition at line 1189 of file TextBlock.cs.

ShadowDy

float Gondwana.Drawing.Direct.TextBlock.ShadowDy

get

Gets the vertical shadow offset (in pixels).

Definition at line 1192 of file TextBlock.cs.

ShadowEnabled

bool Gondwana.Drawing.Direct.TextBlock.ShadowEnabled

get

Gets a value indicating whether a drop shadow is enabled.

Definition at line 1186 of file TextBlock.cs.

Text

string Gondwana.Drawing.Direct.TextBlock.Text

get

Gets the current raw text content.

Definition at line 1153 of file TextBlock.cs.

TextRevealModeValue

TextRevealMode Gondwana.Drawing.Direct.TextBlock.TextRevealModeValue

get

Gets the active text reveal mode.

Definition at line 1222 of file TextBlock.cs.

TextRevealRate

float Gondwana.Drawing.Direct.TextBlock.TextRevealRate

get

Gets the configured reveal rate (characters/sec or words/sec depending on mode).

Definition at line 1225 of file TextBlock.cs.

TypeFace

SKTypeface? Gondwana.Drawing.Direct.TextBlock.TypeFace

get

Gets the configured typeface (or null to use SKTypeface.Default).

Definition at line 1174 of file TextBlock.cs.

VerticalPadding

float Gondwana.Drawing.Direct.TextBlock.VerticalPadding = 0f

getset

Gets or sets the vertical padding (in pixels) on both top and bottom sides of the text.

Definition at line 208 of file TextBlock.cs.

VerticalScrollEndPaddingPx

float Gondwana.Drawing.Direct.TextBlock.VerticalScrollEndPaddingPx

getsetadd

Gets or sets extra scrollable space after the final laid-out line.

Applied only when the text already exceeds the available height. This lets dense diagnostics and log views move the final glyph descent clear of the clip edge.

Definition at line 240 of file TextBlock.cs.

VerticalScrollOffsetPx

float Gondwana.Drawing.Direct.TextBlock.VerticalScrollOffsetPx

getset

Gets or sets the vertical text-content scroll offset in native pixels.

The offset is applied after text layout and is clipped to this text block's bounds. Use MeasureMaximumVerticalScrollOffsetPx to determine the valid upper bound.

Definition at line 217 of file TextBlock.cs.

WrapText

bool Gondwana.Drawing.Direct.TextBlock.WrapText

get

Gets a value indicating whether word wrapping is enabled.

Definition at line 1180 of file TextBlock.cs.

Event Documentation

TextRevealComplete

Action<string>? Gondwana.Drawing.Direct.TextBlock.TextRevealComplete

Raised once when the reveal completes. Argument is the full text content. Note: when the final chunk is revealed this class will raise TextRevealed first, then TextRevealComplete.

Definition at line 71 of file TextBlock.cs.

TextRevealed

Action<string>? Gondwana.Drawing.Direct.TextBlock.TextRevealed

Raised whenever the revealed text portion advances. The argument is the cumulative text currently revealed (substring from start to visible character count).

Definition at line 64 of file TextBlock.cs.
