Provides a single-line editable text box with keyboard caret navigation. More...

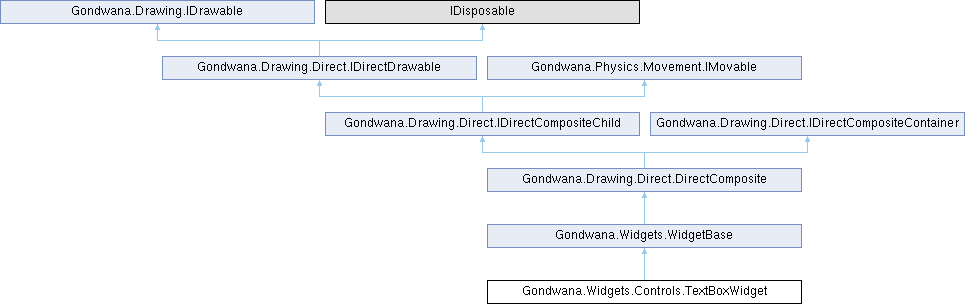

Inheritance diagram for Gondwana.Widgets.Controls.TextBoxWidget:

Public Member Functions
	TextBoxWidget (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle bounds, string text="", string? placeholder=null, string? nickname=null)
	Creates a view-level text box.
	TextBoxWidget (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle bounds, string text="", string? placeholder=null, string? nickname=null)
	Creates a scene-layer text box.
TextBoxWidget	SetText (string? text)
	Replaces the text and moves the caret to the end.
TextBoxWidget	InsertText (string? text)
	Inserts text at the current caret position.
TextBoxWidget	Backspace ()
	Removes the character before the caret when possible.
TextBoxWidget	Delete ()
	Removes the character at the caret when possible.
TextBoxWidget	MoveCaret (int delta)
	Moves the caret by the specified character delta.
TextBoxWidget	SetColors (Color background, Color border, Color focusedBorder)
	Sets the background and border colors used for normal and focused states.
TextBoxWidget	SetTextColors (SKColor text, SKColor placeholder)
	Sets the text and placeholder colors.
TextBoxWidget	SetTextBoxZOrder (int zOrder)
	Sets the base Z-order used by the text-box visuals.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
virtual DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child.
virtual DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it.
virtual DirectComposite	Clear ()
	Removes every child without disposing them.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.
virtual void	Dispose ()
	Disposes the composite and every child it owns.

Protected Member Functions

override void OnPointerClick (WidgetPointerEventArgs args)

Called when a pointer click is dispatched to the widget.

Parameters

args	The pointer event data.

override void OnFocusGained ()

Called when the widget gains focus.

override void OnFocusLost ()

Called when the widget loses focus.

override void OnKeyboardInput (WidgetKeyboardEventArgs args)

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

Protected Member Functions inherited from Gondwana.Widgets.WidgetBase

WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)

Initializes a new instance of the WidgetBase class.

virtual void ProcessShown ()

Performs processing when the widget is shown before notification callbacks are invoked.

virtual void ProcessHidden ()

Performs processing when the widget is hidden before notification callbacks are invoked.

virtual void ProcessActivated ()

Performs processing when the widget is activated before notification callbacks are invoked.

virtual void ProcessCancelled ()

Performs processing when the widget is cancelled before notification callbacks are invoked.

virtual void ProcessPointerEnter (WidgetPointerEventArgs args)

Performs processing when a pointer enters the widget before notification callbacks are invoked.

virtual void ProcessPointerLeave (WidgetPointerEventArgs args)

Performs processing when a pointer leaves the widget before notification callbacks are invoked.

virtual void ProcessPointerDown (WidgetPointerEventArgs args)

Performs processing when a pointer press begins on the widget before notification callbacks are invoked.

virtual void ProcessPointerMove (WidgetPointerEventArgs args)

Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.

virtual void ProcessPointerUp (WidgetPointerEventArgs args)

Performs processing when a pointer press is released for the widget before notification callbacks are invoked.

virtual void ProcessFocusGained ()

Performs processing when the widget gains focus before notification callbacks are invoked.

virtual void ProcessFocusLost ()

Performs processing when the widget loses focus before notification callbacks are invoked.

virtual void ProcessKeyboardInput (WidgetKeyboardEventArgs args)

Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.

virtual bool ShouldDispatchPointerClick (WidgetPointerEventArgs args)

Determines whether a pointer-click event should be dispatched for the specified pointer event data.

virtual void OnShown ()

Called when the widget is shown.

virtual void OnHidden ()

Called when the widget is hidden.

virtual void OnActivated ()

Called when the widget is activated.

virtual void OnCancelled ()

Called when the widget is cancelled.

virtual void OnPointerEnter (WidgetPointerEventArgs args)

Called when a pointer enters the widget bounds.

virtual void OnPointerLeave (WidgetPointerEventArgs args)

Called when a pointer leaves the widget bounds.

virtual void OnPointerDown (WidgetPointerEventArgs args)

Called when a pointer press begins on the widget.

virtual void OnPointerMove (WidgetPointerEventArgs args)

Called when pointer movement is routed to the widget.

virtual void OnPointerUp (WidgetPointerEventArgs args)

Called when a pointer press is released for the widget.

virtual void OnMouseWheel (WidgetMouseWheelEventArgs args)

Called when mouse-wheel input is routed to the widget.

Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite

virtual void OnChildAdded (IDirectCompositeChild child)

Called after a child has been successfully added.

virtual void OnChildRemoved (IDirectCompositeChild child)

Called after a child has been removed from the composite.

Properties
DirectRectangle	Background `[get]`
	Gets the text-box background and border drawing.
TextBlock	TextBlock `[get]`
	Gets the text drawing used by the text box.
string	Text `[get, set]`
	Gets or sets the current text.
string	Placeholder `[get, set]`
	Gets or sets placeholder text shown while the control is empty and unfocused.
int	CaretIndex `[get, set]`
	Gets or sets the caret position in the range zero through Text length.
int?	MaxLength `[get, set]`
	Gets or sets the maximum permitted text length. A null value means unlimited.
double	InitialKeyRepeatDelaySeconds `[get, set]`
	Gets or sets the delay, in seconds, before a held key begins repeating. Pressed events remain immediate.
double	RepeatedKeyIntervalSeconds `[get, set]`
	Gets or sets the minimum interval, in seconds, between repeated held-key actions after InitialKeyRepeatDelaySeconds has elapsed. Pressed events remain immediate.
bool	IsReadOnly `[get, set]`
	Gets or sets whether user editing is disabled.
Rectangle	Bounds `[get]`
	Gets the text-box bounds in its native coordinate space.
int	SubmitKey = 13 `[get, set]`
	Gets or sets the key code used to submit the text. Defaults to Enter (13).
int	BackspaceKey = 8 `[get, set]`
	Gets or sets the key code used for backspace. Defaults to 8.
int	DeleteKey = 46 `[get, set]`
	Gets or sets the key code used for Delete. Defaults to 46.
int	LeftKey = 37 `[get, set]`
	Gets or sets the key code used to move left. Defaults to 37.
int	RightKey = 39 `[get, set]`
	Gets or sets the key code used to move right. Defaults to 39.
int	HomeKey = 36 `[get, set]`
	Gets or sets the key code used to move to the beginning. Defaults to 36.
int	EndKey = 35 `[get, set]`
	Gets or sets the key code used to move to the end. Defaults to 35.
Func< WidgetKeyboardEventArgs, char?>	CharacterResolver `[get, set]`
	Gets or sets the function used to convert routed key events into printable characters.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus `[get, set]`
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused `[get, set]`
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier of the composite.
string?	Nickname `[get]`
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode `[get]`
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer shared by all children in scene-layer mode.
View?	View `[get]`
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children `[get]`
	Gets the children owned by the composite.
MovementController	Movement `[get]`
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace `[get]`
	Gets the coordinate space used by the movement controller.
bool	Visible `[get, set]`
	Gets or sets the visibility of all descendants.
int	ZOrder `[get]`
	Gets the composite Z-order.
Rectangle	ScreenBounds `[get]`
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds `[get]`
	Gets the union of all visible descendants' world-space bounds.

Events
Action< string >?	TextChanged
	Occurs when the text changes.
Action< string >?	Submitted
	Occurs when the configured submit key is pressed.
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Provides a single-line editable text box with keyboard caret navigation.

Gondwana keyboard events expose host key codes. The default key bindings and character resolver use Windows virtual-key values, matching the existing widget keyboard conventions. Other hosts can replace CharacterResolver and the configurable special-key properties without subclassing the widget. Text can also be supplied directly through InsertText(string?).

Definition at line 22 of file TextBoxWidget.cs.

Constructor & Destructor Documentation

◆ TextBoxWidget() [1/2]

Gondwana.Widgets.Controls.TextBoxWidget.TextBoxWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	bounds,
		string	text = "",
		string?	placeholder = null,
		string?	nickname = null )

Creates a view-level text box.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
bounds	The widget bounds in view-local pixels.
text	The text to display.
placeholder	The placeholder text displayed when the input is empty.
nickname	An optional name used to identify the object.

Definition at line 60 of file TextBoxWidget.cs.

◆ TextBoxWidget() [2/2]

Gondwana.Widgets.Controls.TextBoxWidget.TextBoxWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	bounds,
		string	text = "",
		string?	placeholder = null,
		string?	nickname = null )

Creates a scene-layer text box.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
bounds	The widget bounds in world pixels.
text	The text to display.
placeholder	The placeholder text displayed when the input is empty.
nickname	An optional name used to identify the object.

Definition at line 92 of file TextBoxWidget.cs.

Member Function Documentation

◆ Backspace()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.Backspace ( )

Removes the character before the caret when possible.

Returns: This instance for fluent chaining.

Definition at line 328 of file TextBoxWidget.cs.

◆ Delete()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.Delete ( )

Removes the character at the caret when possible.

Returns: This instance for fluent chaining.

Definition at line 344 of file TextBoxWidget.cs.

◆ InsertText()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.InsertText ( string? text )

Inserts text at the current caret position.

Parameters

text	The text to display.

Returns: This instance for fluent chaining.

Definition at line 298 of file TextBoxWidget.cs.

◆ MoveCaret()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.MoveCaret ( int delta )

Moves the caret by the specified character delta.

Parameters

delta The delta.

Returns: This instance for fluent chaining.

Definition at line 360 of file TextBoxWidget.cs.

◆ OnFocusGained()

override void Gondwana.Widgets.Controls.TextBoxWidget.OnFocusGained ( )

protectedvirtual

Called when the widget gains focus.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 427 of file TextBoxWidget.cs.

◆ OnFocusLost()

override void Gondwana.Widgets.Controls.TextBoxWidget.OnFocusLost ( )

protectedvirtual

Called when the widget loses focus.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 436 of file TextBoxWidget.cs.

◆ OnKeyboardInput()

override void Gondwana.Widgets.Controls.TextBoxWidget.OnKeyboardInput ( WidgetKeyboardEventArgs args )

protectedvirtual

Called when keyboard input is routed to the widget.

Parameters

args	The keyboard event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 446 of file TextBoxWidget.cs.

◆ OnPointerClick()

override void Gondwana.Widgets.Controls.TextBoxWidget.OnPointerClick ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer click is dispatched to the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 414 of file TextBoxWidget.cs.

◆ SetColors()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.SetColors	(	Color	background,
		Color	border,
		Color	focusedBorder )

Sets the background and border colors used for normal and focused states.

Parameters

background	The background.
border	The border.
focusedBorder	The focused border.

Returns: This instance for fluent chaining.

Definition at line 373 of file TextBoxWidget.cs.

◆ SetText()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.SetText ( string? text )

Replaces the text and moves the caret to the end.

Parameters

text	The text to display.

Returns: This instance for fluent chaining.

Definition at line 272 of file TextBoxWidget.cs.

◆ SetTextBoxZOrder()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.SetTextBoxZOrder ( int zOrder )

Sets the base Z-order used by the text-box visuals.

Parameters

zOrder The drawing order relative to other content.

Returns: This instance for fluent chaining.

Definition at line 406 of file TextBoxWidget.cs.

◆ SetTextColors()

TextBoxWidget Gondwana.Widgets.Controls.TextBoxWidget.SetTextColors	(	SKColor	text,
		SKColor	placeholder )

Sets the text and placeholder colors.

Parameters

text	The text to display.
placeholder	The placeholder text displayed when the input is empty.

Returns: This instance for fluent chaining.

Definition at line 393 of file TextBoxWidget.cs.

Property Documentation

◆ Background

DirectRectangle Gondwana.Widgets.Controls.TextBoxWidget.Background

get

Gets the text-box background and border drawing.

Definition at line 118 of file TextBoxWidget.cs.

◆ BackspaceKey

int Gondwana.Widgets.Controls.TextBoxWidget.BackspaceKey = 8

getset

Gets or sets the key code used for backspace. Defaults to 8.

Definition at line 231 of file TextBoxWidget.cs.

◆ Bounds

Rectangle Gondwana.Widgets.Controls.TextBoxWidget.Bounds

get

Gets the text-box bounds in its native coordinate space.

Definition at line 219 of file TextBoxWidget.cs.

◆ CaretIndex

int Gondwana.Widgets.Controls.TextBoxWidget.CaretIndex

getset

Gets or sets the caret position in the range zero through Text length.

Definition at line 150 of file TextBoxWidget.cs.

◆ CharacterResolver

Func<WidgetKeyboardEventArgs, char?> Gondwana.Widgets.Controls.TextBoxWidget.CharacterResolver

getset

Gets or sets the function used to convert routed key events into printable characters.

Definition at line 261 of file TextBoxWidget.cs.

◆ DeleteKey

int Gondwana.Widgets.Controls.TextBoxWidget.DeleteKey = 46

getset

Gets or sets the key code used for Delete. Defaults to 46.

Definition at line 236 of file TextBoxWidget.cs.

◆ EndKey

int Gondwana.Widgets.Controls.TextBoxWidget.EndKey = 35

getset

Gets or sets the key code used to move to the end. Defaults to 35.

Definition at line 256 of file TextBoxWidget.cs.

◆ HomeKey

int Gondwana.Widgets.Controls.TextBoxWidget.HomeKey = 36

getset

Gets or sets the key code used to move to the beginning. Defaults to 36.

Definition at line 251 of file TextBoxWidget.cs.

◆ InitialKeyRepeatDelaySeconds

double Gondwana.Widgets.Controls.TextBoxWidget.InitialKeyRepeatDelaySeconds

getset

Gets or sets the delay, in seconds, before a held key begins repeating. Pressed events remain immediate.

Definition at line 182 of file TextBoxWidget.cs.

◆ IsReadOnly

bool Gondwana.Widgets.Controls.TextBoxWidget.IsReadOnly

getset

Gets or sets whether user editing is disabled.

Definition at line 214 of file TextBoxWidget.cs.

◆ LeftKey

int Gondwana.Widgets.Controls.TextBoxWidget.LeftKey = 37

getset

Gets or sets the key code used to move left. Defaults to 37.

Definition at line 241 of file TextBoxWidget.cs.

◆ MaxLength

int? Gondwana.Widgets.Controls.TextBoxWidget.MaxLength

getset

Gets or sets the maximum permitted text length. A null value means unlimited.

Definition at line 163 of file TextBoxWidget.cs.

◆ Placeholder

string Gondwana.Widgets.Controls.TextBoxWidget.Placeholder

getset

Gets or sets placeholder text shown while the control is empty and unfocused.

Definition at line 137 of file TextBoxWidget.cs.

◆ RepeatedKeyIntervalSeconds

double Gondwana.Widgets.Controls.TextBoxWidget.RepeatedKeyIntervalSeconds

getset

Gets or sets the minimum interval, in seconds, between repeated held-key actions after InitialKeyRepeatDelaySeconds has elapsed. Pressed events remain immediate.

Definition at line 199 of file TextBoxWidget.cs.

◆ RightKey

int Gondwana.Widgets.Controls.TextBoxWidget.RightKey = 39

getset

Gets or sets the key code used to move right. Defaults to 39.

Definition at line 246 of file TextBoxWidget.cs.

◆ SubmitKey

int Gondwana.Widgets.Controls.TextBoxWidget.SubmitKey = 13

getset

Gets or sets the key code used to submit the text. Defaults to Enter (13).

Definition at line 226 of file TextBoxWidget.cs.

◆ Text

string Gondwana.Widgets.Controls.TextBoxWidget.Text

getset

Gets or sets the current text.

Definition at line 128 of file TextBoxWidget.cs.

◆ TextBlock

TextBlock Gondwana.Widgets.Controls.TextBoxWidget.TextBlock

get

Gets the text drawing used by the text box.

Definition at line 123 of file TextBoxWidget.cs.

Event Documentation

◆ Submitted

Action<string>? Gondwana.Widgets.Controls.TextBoxWidget.Submitted

Occurs when the configured submit key is pressed.

Definition at line 49 of file TextBoxWidget.cs.

◆ TextChanged

Action<string>? Gondwana.Widgets.Controls.TextBoxWidget.TextChanged

Occurs when the text changes.

Definition at line 44 of file TextBoxWidget.cs.

Public Member Functions

Protected Member Functions

Properties

Events

Detailed Description

Constructor & Destructor Documentation

◆ TextBoxWidget() [1/2]

◆ TextBoxWidget() [2/2]

Member Function Documentation

◆ Backspace()

◆ Delete()

◆ InsertText()

◆ MoveCaret()

◆ OnFocusGained()

◆ OnFocusLost()

◆ OnKeyboardInput()

◆ OnPointerClick()

◆ SetColors()

◆ SetText()

◆ SetTextBoxZOrder()

◆ SetTextColors()

Property Documentation

◆ Background

◆ BackspaceKey

◆ Bounds

◆ CaretIndex

◆ CharacterResolver

◆ DeleteKey

◆ EndKey

◆ HomeKey

◆ InitialKeyRepeatDelaySeconds

◆ IsReadOnly

◆ LeftKey

◆ MaxLength

◆ Placeholder

◆ RepeatedKeyIntervalSeconds

◆ RightKey

◆ SubmitKey

◆ Text

◆ TextBlock

Event Documentation

◆ Submitted

◆ TextChanged
