Gondwana.Widgets.Controls.LabelWidget Class Reference

Displays retained-mode text as a reusable Gondwana widget. More...

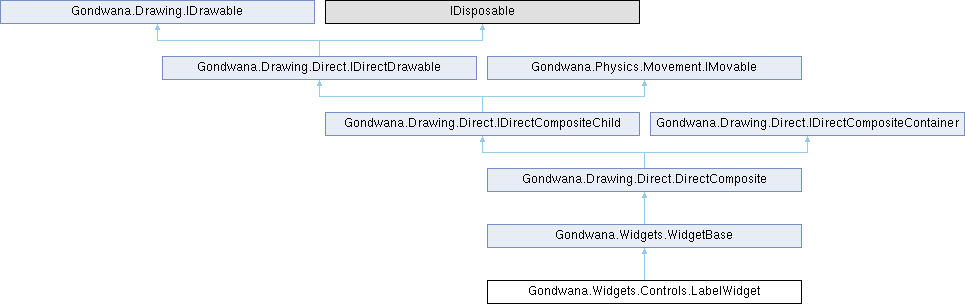

Inheritance diagram for Gondwana.Widgets.Controls.LabelWidget:

Public Member Functions
	LabelWidget (RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle bounds, string text="", string? nickname=null)
	Creates a view-level label.
	LabelWidget (RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle bounds, string text="", string? nickname=null)
	Creates a scene-layer label.
LabelWidget	SetText (string text)
	Changes the displayed text.
LabelWidget	SetFont (SKTypeface typeface, float size, float? minSize=null)
	Configures the label typeface and size.
LabelWidget	SetColors (SKColor foreground, SKColor background)
	Sets foreground and background colors.
LabelWidget	SetTextColor (SKColor color)
	Sets the foreground text color while preserving the background color.
LabelWidget	SetBackgroundColor (SKColor color)
	Sets the text-block background color while preserving the foreground color.
LabelWidget	SetAlignment (SKTextAlign horizontal, TextBlock.VerticalAlign vertical)
	Configures horizontal and vertical text alignment.
LabelWidget	EnableWrapping (bool enabled=true)
	Enables or disables wrapping.
LabelWidget	SetPadding (float horizontal, float vertical)
	Sets symmetric horizontal and vertical padding.
LabelWidget	SetLabelZOrder (int zOrder)
	Sets the base Z-order used by the label text and optional scrollbar.
Public Member Functions inherited from Gondwana.Widgets.WidgetBase
virtual bool	HitTest (View view, Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position within the specified view.
virtual bool	HitTest (Point screenPositionPx)
	Determines whether the widget can be hit at the specified screen position.
WidgetBase	Show ()
	Shows the widget and registers it for input routing.
WidgetBase	Hide ()
	Hides the widget and releases any routed input state.
WidgetBase	Activate ()
	Activates the widget and brings it to the front of the input order.
WidgetBase	Cancel ()
	Cancels the widget.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current composite anchor.
void	SetPosition (Vector2 position)
	Sets the composite anchor and repositions all children from their stored offsets.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor and repositions all children from their stored offsets.
virtual DirectComposite	Add (IDirectCompositeChild child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a composite-compatible direct drawable as a child.
virtual DirectComposite	Remove (IDirectCompositeChild child)
	Removes a child without disposing it.
virtual DirectComposite	Clear ()
	Removes every child without disposing them.
DirectComposite	SetLocalOffset (IDirectCompositeChild child, Vector2 newLocalOffsetPx)
	Changes one child's local offset and reapplies its position.
DirectComposite	SetZOrder (int zOrder)
	Applies one Z-order to every descendant.
DirectComposite	SetOpacity (float opacity)
	Applies one opacity to every descendant.
DirectComposite	SetIsVisible (bool visible)
	Applies one visibility value to every descendant.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades every descendant to the requested opacity.
DirectComposite	FadeIn (float durationSec)
	Fades every descendant to full opacity.
DirectComposite	FadeOut (float durationSec)
	Fades every descendant to zero opacity.
RectangleF	GetDrawLocationScreen (View view)
	Gets the union of all visible descendants as projected through a view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs no direct rendering because descendants render independently.
virtual void	Update (long tick)
	Advances composite movement.
virtual void	Dispose ()
	Disposes the composite and every child it owns.

Protected Member Functions
override void	ProcessShown ()
	Performs processing when the widget is shown before notification callbacks are invoked.
override void	ProcessHidden ()
	Performs processing when the widget is hidden before notification callbacks are invoked.
override void	OnPointerDown (WidgetPointerEventArgs args)
	Called when a pointer press begins on the widget. Parameters args The pointer event data.
override void	OnPointerMove (WidgetPointerEventArgs args)
	Called when pointer movement is routed to the widget. Parameters args The pointer event data.
override void	OnPointerUp (WidgetPointerEventArgs args)
	Called when a pointer press is released for the widget. Parameters args The pointer event data.
override void	OnMouseWheel (WidgetMouseWheelEventArgs args)
	Called when mouse-wheel input is routed to the widget. Parameters args The event data.
Protected Member Functions inherited from Gondwana.Widgets.WidgetBase
	WidgetBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the WidgetBase class.
virtual void	ProcessActivated ()
	Performs processing when the widget is activated before notification callbacks are invoked.
virtual void	ProcessCancelled ()
	Performs processing when the widget is cancelled before notification callbacks are invoked.
virtual void	ProcessPointerEnter (WidgetPointerEventArgs args)
	Performs processing when a pointer enters the widget before notification callbacks are invoked.
virtual void	ProcessPointerLeave (WidgetPointerEventArgs args)
	Performs processing when a pointer leaves the widget before notification callbacks are invoked.
virtual void	ProcessPointerDown (WidgetPointerEventArgs args)
	Performs processing when a pointer press begins on the widget before notification callbacks are invoked.
virtual void	ProcessPointerMove (WidgetPointerEventArgs args)
	Performs processing when pointer movement is routed to the widget before notification callbacks are invoked.
virtual void	ProcessPointerUp (WidgetPointerEventArgs args)
	Performs processing when a pointer press is released for the widget before notification callbacks are invoked.
virtual void	ProcessFocusGained ()
	Performs processing when the widget gains focus before notification callbacks are invoked.
virtual void	ProcessFocusLost ()
	Performs processing when the widget loses focus before notification callbacks are invoked.
virtual void	ProcessKeyboardInput (WidgetKeyboardEventArgs args)
	Performs processing when keyboard input is routed to the widget before notification callbacks are invoked.
virtual bool	ShouldDispatchPointerClick (WidgetPointerEventArgs args)
	Determines whether a pointer-click event should be dispatched for the specified pointer event data.
virtual void	OnShown ()
	Called when the widget is shown.
virtual void	OnHidden ()
	Called when the widget is hidden.
virtual void	OnActivated ()
	Called when the widget is activated.
virtual void	OnCancelled ()
	Called when the widget is cancelled.
virtual void	OnPointerEnter (WidgetPointerEventArgs args)
	Called when a pointer enters the widget bounds.
virtual void	OnPointerLeave (WidgetPointerEventArgs args)
	Called when a pointer leaves the widget bounds.
virtual void	OnPointerClick (WidgetPointerEventArgs args)
	Called when a pointer click is dispatched to the widget.
virtual void	OnFocusGained ()
	Called when the widget gains focus.
virtual void	OnFocusLost ()
	Called when the widget loses focus.
virtual void	OnKeyboardInput (WidgetKeyboardEventArgs args)
	Called when keyboard input is routed to the widget.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectComposite
virtual void	OnChildAdded (IDirectCompositeChild child)
	Called after a child has been successfully added.
virtual void	OnChildRemoved (IDirectCompositeChild child)
	Called after a child has been removed from the composite.

Properties
TextBlock	TextBlock [get]
	Gets the underlying text drawing.
DirectRectangle	VerticalScrollBarTrack [get]
	Gets the vertical scrollbar track drawing.
DirectRectangle	VerticalScrollBarThumb [get]
	Gets the vertical scrollbar thumb drawing.
string	Text [get]
	Gets the current label text.
Rectangle	Bounds [get]
	Gets the label bounds in its native coordinate space.
Size	Size [get, set]
	Gets or sets the label size while preserving its current position.
ScrollBarVisibility	VerticalScrollBarVisibility [get, set]
	Gets or sets when the label displays its vertical scrollbar.
bool	IsVerticalScrollBarVisible [get]
	Gets whether the vertical scrollbar is currently visible.
int	MouseWheelScrollPixels [get, set]
	Gets or sets the number of native pixels scrolled for one mouse-wheel notch.
float	VerticalScrollEndPaddingPx [get, set]
	Gets or sets additional space exposed after the last line when scrolled fully down.
float	VerticalScrollOffsetPx [get, set]
	Gets or sets the current vertical text-content scroll offset.
float	MaximumVerticalScrollOffsetPx [get]
	Gets the maximum vertical text-content scroll offset for the current layout.
Properties inherited from Gondwana.Widgets.WidgetBase
bool	IsInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can participate in input routing.
bool	IsPointerInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive pointer input.
bool	IsKeyboardInputEnabled [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard input.
bool	CanReceiveFocus [get, set]
	Gets or sets a value indicating whether the widget can receive keyboard focus.
bool	IsFocused [get, set]
	Gets a value indicating whether the widget currently has keyboard focus.
Properties inherited from Gondwana.Drawing.Direct.DirectComposite
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier of the composite.
string?	Nickname [get]
	Gets the optional diagnostic nickname of the composite.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host shared by the composite and its children.
DirectDrawingMode	Mode [get]
	Gets the coordinate mode shared by the composite and its children.
SceneLayer?	SceneLayer [get]
	Gets the scene layer shared by all children in scene-layer mode.
View?	View [get]
	Gets the view shared by all children in view mode.
ReadOnlyCollection< IDirectCompositeChild >	Children [get]
	Gets the children owned by the composite.
MovementController	Movement [get]
	Gets the movement controller used to move the composite anchor.
MovementSpace	PositionSpace [get]
	Gets the coordinate space used by the movement controller.
bool	Visible [get, set]
	Gets or sets the visibility of all descendants.
int	ZOrder [get]
	Gets the composite Z-order.
Rectangle	ScreenBounds [get]
	Gets the union of all visible descendants' screen-space bounds.
Rectangle	WorldBounds [get]
	Gets the union of all visible descendants' world-space bounds.

Additional Inherited Members
Events inherited from Gondwana.Widgets.WidgetBase
Action?	Shown
	Occurs when the widget is shown.
Action?	Hidden
	Occurs when the widget is hidden.
Action?	Activated
	Occurs when the widget is activated.
Action?	Cancelled
	Occurs when the widget is cancelled.
Action< WidgetPointerEventArgs >?	PointerEnter
	Occurs when a pointer enters the widget bounds.
Action< WidgetPointerEventArgs >?	PointerLeave
	Occurs when a pointer leaves the widget bounds.
Action< WidgetPointerEventArgs >?	PointerDown
	Occurs when a pointer button or touch press begins on the widget.
Action< WidgetPointerEventArgs >?	PointerMove
	Occurs when a pointer moves while routed to the widget.
Action< WidgetPointerEventArgs >?	PointerUp
	Occurs when a pointer button or touch press is released for the widget.
Action< WidgetPointerEventArgs >?	PointerClick
	Occurs when a pointer press and release completes as a click on the widget.
Action< WidgetMouseWheelEventArgs >?	MouseWheel
	Occurs when mouse-wheel input is routed to the widget while the pointer is over it.
Action?	FocusGained
	Occurs when the widget gains keyboard focus.
Action?	FocusLost
	Occurs when the widget loses keyboard focus.
Action< WidgetKeyboardEventArgs >?	KeyboardInput
	Occurs when keyboard input is routed to the widget.
Events inherited from Gondwana.Drawing.Direct.DirectComposite
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Displays retained-mode text as a reusable Gondwana widget.

Definition at line 14 of file LabelWidget.cs.

Constructor & Destructor Documentation

LabelWidget() [1/2]

Gondwana.Widgets.Controls.LabelWidget.LabelWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	bounds,
		string	text = "",
		string?	nickname = null )

Creates a view-level label.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
bounds	The widget bounds in view-local pixels.
text	The text to display.
nickname	An optional name used to identify the object.

Definition at line 41 of file LabelWidget.cs.

LabelWidget() [2/2]

Gondwana.Widgets.Controls.LabelWidget.LabelWidget	(	RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	bounds,
		string	text = "",
		string?	nickname = null )

Creates a scene-layer label.

Parameters

renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
bounds	The widget bounds in world pixels.
text	The text to display.
nickname	An optional name used to identify the object.

Definition at line 72 of file LabelWidget.cs.

Member Function Documentation

EnableWrapping()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.EnableWrapping

(

bool

enabled = true

)

Enables or disables wrapping.

Parameters

enabled

Whether the feature is enabled.

Returns

This instance for fluent chaining.

Definition at line 299 of file LabelWidget.cs.

OnMouseWheel()

override void Gondwana.Widgets.Controls.LabelWidget.OnMouseWheel ( WidgetMouseWheelEventArgs args )

protectedvirtual

Called when mouse-wheel input is routed to the widget.

Parameters

args	The event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 419 of file LabelWidget.cs.

OnPointerDown()

override void Gondwana.Widgets.Controls.LabelWidget.OnPointerDown ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer press begins on the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 351 of file LabelWidget.cs.

OnPointerMove()

override void Gondwana.Widgets.Controls.LabelWidget.OnPointerMove ( WidgetPointerEventArgs args )

protectedvirtual

Called when pointer movement is routed to the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 380 of file LabelWidget.cs.

OnPointerUp()

override void Gondwana.Widgets.Controls.LabelWidget.OnPointerUp ( WidgetPointerEventArgs args )

protectedvirtual

Called when a pointer press is released for the widget.

Parameters

args	The pointer event data.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 406 of file LabelWidget.cs.

ProcessHidden()

override void Gondwana.Widgets.Controls.LabelWidget.ProcessHidden ( )

protectedvirtual

Performs processing when the widget is hidden before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 343 of file LabelWidget.cs.

ProcessShown()

override void Gondwana.Widgets.Controls.LabelWidget.ProcessShown ( )

protectedvirtual

Performs processing when the widget is shown before notification callbacks are invoked.

Reimplemented from Gondwana.Widgets.WidgetBase.

Definition at line 336 of file LabelWidget.cs.

SetAlignment()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetAlignment	(	SKTextAlign	horizontal,
		TextBlock.VerticalAlign	vertical )

Configures horizontal and vertical text alignment.

Parameters

horizontal	The horizontal.
vertical	The vertical.

Returns

This instance for fluent chaining.

Definition at line 288 of file LabelWidget.cs.

SetBackgroundColor()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetBackgroundColor

(

SKColor

color

)

Sets the text-block background color while preserving the foreground color.

Parameters

color

The color to apply.

Returns

This instance for fluent chaining.

Definition at line 275 of file LabelWidget.cs.

SetColors()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetColors	(	SKColor	foreground,
		SKColor	background )

Sets foreground and background colors.

Parameters

foreground	The foreground.
background	The background.

Returns

This instance for fluent chaining.

Definition at line 250 of file LabelWidget.cs.

SetFont()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetFont	(	SKTypeface	typeface,
		float	size,
		float?	minSize = null )

Configures the label typeface and size.

Parameters

typeface	The typeface used to render text.
size	The size.
minSize	The min size.

Returns

This instance for fluent chaining.

Definition at line 236 of file LabelWidget.cs.

SetLabelZOrder()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetLabelZOrder

(

int

zOrder

)

Sets the base Z-order used by the label text and optional scrollbar.

Parameters

zOrder

The drawing order relative to other content.

Returns

This instance for fluent chaining.

Definition at line 327 of file LabelWidget.cs.

SetPadding()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetPadding	(	float	horizontal,
		float	vertical )

Sets symmetric horizontal and vertical padding.

Parameters

horizontal	The horizontal.
vertical	The vertical.

Returns

This instance for fluent chaining.

Definition at line 312 of file LabelWidget.cs.

SetText()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetText

(

string

text

)

Changes the displayed text.

Parameters

text	The text to display.

Returns

This instance for fluent chaining.

Definition at line 221 of file LabelWidget.cs.

SetTextColor()

LabelWidget Gondwana.Widgets.Controls.LabelWidget.SetTextColor

(

SKColor

color

)

Sets the foreground text color while preserving the background color.

Parameters

color

The color to apply.

Returns

This instance for fluent chaining.

Definition at line 263 of file LabelWidget.cs.

Property Documentation

Bounds

Rectangle Gondwana.Widgets.Controls.LabelWidget.Bounds

get

Gets the label bounds in its native coordinate space.

Definition at line 114 of file LabelWidget.cs.

IsVerticalScrollBarVisible

bool Gondwana.Widgets.Controls.LabelWidget.IsVerticalScrollBarVisible

get

Gets whether the vertical scrollbar is currently visible.

Definition at line 164 of file LabelWidget.cs.

MaximumVerticalScrollOffsetPx

float Gondwana.Widgets.Controls.LabelWidget.MaximumVerticalScrollOffsetPx

get

Gets the maximum vertical text-content scroll offset for the current layout.

Definition at line 214 of file LabelWidget.cs.

MouseWheelScrollPixels

int Gondwana.Widgets.Controls.LabelWidget.MouseWheelScrollPixels

getset

Gets or sets the number of native pixels scrolled for one mouse-wheel notch.

Definition at line 167 of file LabelWidget.cs.

Size

Size Gondwana.Widgets.Controls.LabelWidget.Size

getset

Gets or sets the label size while preserving its current position.

Definition at line 130 of file LabelWidget.cs.

Text

string Gondwana.Widgets.Controls.LabelWidget.Text

get

Gets the current label text.

Definition at line 109 of file LabelWidget.cs.

TextBlock

TextBlock Gondwana.Widgets.Controls.LabelWidget.TextBlock

get

Gets the underlying text drawing.

Definition at line 98 of file LabelWidget.cs.

VerticalScrollBarThumb

DirectRectangle Gondwana.Widgets.Controls.LabelWidget.VerticalScrollBarThumb

get

Gets the vertical scrollbar thumb drawing.

Definition at line 104 of file LabelWidget.cs.

VerticalScrollBarTrack

DirectRectangle Gondwana.Widgets.Controls.LabelWidget.VerticalScrollBarTrack

get

Gets the vertical scrollbar track drawing.

Definition at line 101 of file LabelWidget.cs.

VerticalScrollBarVisibility

ScrollBarVisibility Gondwana.Widgets.Controls.LabelWidget.VerticalScrollBarVisibility

getset

Gets or sets when the label displays its vertical scrollbar.

The default is ScrollBarVisibility.Never, preserving the traditional non-interactive label behavior. Set this to ScrollBarVisibility.Auto or ScrollBarVisibility.Always to enable pointer scrolling.

Definition at line 147 of file LabelWidget.cs.

VerticalScrollEndPaddingPx

float Gondwana.Widgets.Controls.LabelWidget.VerticalScrollEndPaddingPx

getsetadd

Gets or sets additional space exposed after the last line when scrolled fully down.

The default is zero. A small positive value is useful for dense diagnostic/log views so font descent and rasterization rounding never leave the final line touching the clip edge. It does not create a scrollbar when the text otherwise fits.

Definition at line 183 of file LabelWidget.cs.

VerticalScrollOffsetPx

float Gondwana.Widgets.Controls.LabelWidget.VerticalScrollOffsetPx

getset

Gets or sets the current vertical text-content scroll offset.

Definition at line 201 of file LabelWidget.cs.
