Gondwana.Drawing.Tile Class Reference

Represents an abstract base class for drawable tiles in the Gondwana engine. Provides core functionality for rendering, animation, collision detection, and scene layer integration. More...

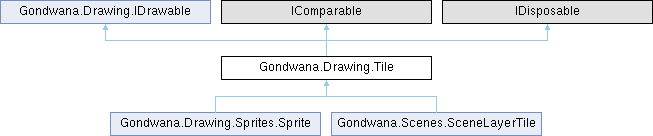

Inheritance diagram for Gondwana.Drawing.Tile:

Public Member Functions
virtual RectangleF	GetDrawLocationScreen (View view)
	Converts the tile's world location to screen coordinates based on the specified view.
virtual RectangleF	GetCollisionAreaScreen (View view)
	Converts the tile's collision area from world coordinates to screen coordinates.
virtual void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders the tile to the specified backbuffer at the given screen location.
int	CompareTo (Tile? tile)
	Compares this tile to another tile for sorting purposes. Fixed-position tiles are rendered first, followed by tiles sorted by Y-coordinate, Z-order, and X-coordinate.
virtual void	Dispose ()
	Releases all resources used by the tile, including removing it from animation tracking, disposing its animator, and clearing collision references.

Protected Attributes
bool	pauseAnimation
ICollider?	_collider

Properties
static List< Tile >	TilesAnimating = new() [get]
	Gets the collection of all tiles that are currently animating in the scene. Used to track and update animated tiles during the render cycle.
bool	IsPositionFixed [get]
	Gets a value indicating whether the tile's position is fixed in screen space (e.g., UI elements) or moves with the world (e.g., game objects).
Rectangle	DrawLocationWorld [get]
	Gets the tile's draw location in world coordinates as a rectangle. This represents the area occupied by the tile in the game world.
PointF	SceneLayerCoordinates [get]
	Gets the tile's position within its scene layer using the layer's coordinate system.
SceneLayer	SceneLayer [get]
	Gets the scene layer that contains this tile.
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier for this tile instance.
string?	Nickname [get, set]
	Gets or sets an optional friendly name for the tile, useful for debugging and identification.
virtual bool	Visible [get, set]
	Gets or sets a value indicating whether the tile is visible and should be rendered. Setting this property triggers a refresh of the tile's screen area.
virtual int	ZOrder [get, set]
	Gets or sets the Z-order (depth) of the tile for rendering priority. Higher values are drawn later (on top of lower values). Setting this property triggers a refresh of the tile's screen area.
virtual Overhang	OverhangPixels [get]
	Gets the overhang dimensions (in pixels) that extend beyond the tile's primary area. This is typically used for tiles with visual elements that exceed their logical boundaries.
virtual Frame	CurrentFrame [get, set]
	Gets or sets the current frame being displayed for this tile. Setting this property triggers a refresh of both the old and new tile areas to handle size changes.
virtual Animator	TileAnimator [get]
	Gets the animator responsible for managing frame transitions and animation sequences for this tile.
virtual bool	PauseAnimation [get, set]
	Gets or sets a value indicating whether the tile's animation is currently paused.
virtual ? ICollider	Collider [get]
	Gets the collider used for collision detection with this tile. Returns null if the tile has no collision detection.
virtual Rectangle	CollisionArea [get]
	Gets the effective collision area of the tile in world coordinates, incorporating any adjustments specified by AdjustCollisionArea.
virtual bool	EnableFog [get, set]
	Gets or sets a value indicating whether fog of war rendering is enabled for this tile. Setting this property triggers a refresh of the tile's screen area.
virtual Point[]	OutlinePointsWorld [get]
	Used to determine polygonal area when drawing grid lines or fog. Override this property in a derived class to define custom areas for these effects.
virtual CollisionDetectionAdjustment	AdjustCollisionArea = CollisionDetectionAdjustment.None [get, set]
	Gets or sets the collision area adjustment values that modify the tile's collision boundaries. Use this to fine-tune the collision detection area relative to the tile's visual bounds.
bool	CollisionsEnabled [get, set]
	Gets or sets a value indicating whether collision detection is enabled for this tile. When set to true, the tile's collider is registered with the scene layer's collision system. When set to false, the collider is unregistered and collisions will not be detected.
TypedValueBag	ValueBag = new() [get]
	Gets the value bag for storing arbitrary typed values associated with this tile. Useful for attaching custom game-specific data without subclassing.

Detailed Description

Represents an abstract base class for drawable tiles in the Gondwana engine. Provides core functionality for rendering, animation, collision detection, and scene layer integration.

Member Function Documentation

CompareTo()

int Gondwana.Drawing.Tile.CompareTo

(

Tile?

tile

)

Compares this tile to another tile for sorting purposes. Fixed-position tiles are rendered first, followed by tiles sorted by Y-coordinate, Z-order, and X-coordinate.

Parameters

tile	The tile to compare with this instance.

Returns

A negative value if this tile should be drawn before the other tile, zero if they have the same draw order, or a positive value if this tile should be drawn after the other tile.

Dispose()

virtual void Gondwana.Drawing.Tile.Dispose ( )

virtual

Releases all resources used by the tile, including removing it from animation tracking, disposing its animator, and clearing collision references.

Reimplemented in Gondwana.Drawing.Sprites.Sprite.

Draw()

virtual void Gondwana.Drawing.Tile.Draw ( BackbufferBase backbuffer, RectangleF destRectScreen )

virtual

Renders the tile to the specified backbuffer at the given screen location.

Parameters

backbuffer	The backbuffer to render to.
destRectScreen	The destination rectangle in screen coordinates where the tile should be drawn.

Implements Gondwana.Drawing.IDrawable.

GetCollisionAreaScreen()

virtual RectangleF Gondwana.Drawing.Tile.GetCollisionAreaScreen ( View view )

virtual

Converts the tile's collision area from world coordinates to screen coordinates.

Parameters

view	The view containing camera and viewport information for the transformation.

Returns

The tile's collision area in screen space as a rectangle.

GetDrawLocationScreen()

virtual RectangleF Gondwana.Drawing.Tile.GetDrawLocationScreen ( View view )

virtual

Converts the tile's world location to screen coordinates based on the specified view.

Parameters

view	The view containing camera and viewport information for the transformation.

Returns

The tile's location in screen space as a rectangle.

Implements Gondwana.Drawing.IDrawable.

Member Data Documentation

_collider

ICollider? Gondwana.Drawing.Tile._collider

protected

pauseAnimation

bool Gondwana.Drawing.Tile.pauseAnimation

protected

Property Documentation

AdjustCollisionArea

virtual CollisionDetectionAdjustment Gondwana.Drawing.Tile.AdjustCollisionArea = CollisionDetectionAdjustment.None

getset

Gets or sets the collision area adjustment values that modify the tile's collision boundaries. Use this to fine-tune the collision detection area relative to the tile's visual bounds.

Collider

virtual ? ICollider Gondwana.Drawing.Tile.Collider

get

Gets the collider used for collision detection with this tile. Returns null if the tile has no collision detection.

CollisionArea

virtual Rectangle Gondwana.Drawing.Tile.CollisionArea

get

Gets the effective collision area of the tile in world coordinates, incorporating any adjustments specified by AdjustCollisionArea.

Implements Gondwana.Collisions.ICollisionEntity.

CollisionsEnabled

bool Gondwana.Drawing.Tile.CollisionsEnabled

getset

Gets or sets a value indicating whether collision detection is enabled for this tile. When set to true, the tile's collider is registered with the scene layer's collision system. When set to false, the collider is unregistered and collisions will not be detected.

CurrentFrame

virtual Frame Gondwana.Drawing.Tile.CurrentFrame

getset

Gets or sets the current frame being displayed for this tile. Setting this property triggers a refresh of both the old and new tile areas to handle size changes.

DrawLocationWorld

Rectangle Gondwana.Drawing.Tile.DrawLocationWorld

getabstract

Gets the tile's draw location in world coordinates as a rectangle. This represents the area occupied by the tile in the game world.

EnableFog

virtual bool Gondwana.Drawing.Tile.EnableFog

getset

Gets or sets a value indicating whether fog of war rendering is enabled for this tile. Setting this property triggers a refresh of the tile's screen area.

Id

Guid Gondwana.Drawing.Tile.Id = Guid.NewGuid()

get

Gets the unique identifier for this tile instance.

Implements Gondwana.Drawing.IDrawable.

IsPositionFixed

bool Gondwana.Drawing.Tile.IsPositionFixed

getabstract

Gets a value indicating whether the tile's position is fixed in screen space (e.g., UI elements) or moves with the world (e.g., game objects).

Nickname

string? Gondwana.Drawing.Tile.Nickname

getset

Gets or sets an optional friendly name for the tile, useful for debugging and identification.

Implements Gondwana.Drawing.IDrawable.

OutlinePointsWorld

virtual Point [] Gondwana.Drawing.Tile.OutlinePointsWorld

get

Used to determine polygonal area when drawing grid lines or fog. Override this property in a derived class to define custom areas for these effects.

OverhangPixels

virtual Overhang Gondwana.Drawing.Tile.OverhangPixels

get

Gets the overhang dimensions (in pixels) that extend beyond the tile's primary area. This is typically used for tiles with visual elements that exceed their logical boundaries.

PauseAnimation

virtual bool Gondwana.Drawing.Tile.PauseAnimation

getset

Gets or sets a value indicating whether the tile's animation is currently paused.

SceneLayer

SceneLayer Gondwana.Drawing.Tile.SceneLayer

getabstract

Gets the scene layer that contains this tile.

SceneLayerCoordinates

PointF Gondwana.Drawing.Tile.SceneLayerCoordinates

getabstract

Gets the tile's position within its scene layer using the layer's coordinate system.

TileAnimator

virtual Animator Gondwana.Drawing.Tile.TileAnimator

get

Gets the animator responsible for managing frame transitions and animation sequences for this tile.

TilesAnimating

List<Tile> Gondwana.Drawing.Tile.TilesAnimating = new()

staticget

Gets the collection of all tiles that are currently animating in the scene. Used to track and update animated tiles during the render cycle.

ValueBag

TypedValueBag Gondwana.Drawing.Tile.ValueBag = new()

get

Gets the value bag for storing arbitrary typed values associated with this tile. Useful for attaching custom game-specific data without subclassing.

Visible

virtual bool Gondwana.Drawing.Tile.Visible

getset

Gets or sets a value indicating whether the tile is visible and should be rendered. Setting this property triggers a refresh of the tile's screen area.

Implements Gondwana.Drawing.IDrawable.

ZOrder

virtual int Gondwana.Drawing.Tile.ZOrder

getset

Gets or sets the Z-order (depth) of the tile for rendering priority. Higher values are drawn later (on top of lower values). Setting this property triggers a refresh of the tile's screen area.

Implements Gondwana.Drawing.IDrawable.
