Gondwana.Rendering.Backbuffers.BackbufferBase Class Reference

Represents a base class for managing a graphical backbuffer, and is the in-memory surface where rendering operations are performed before being presented to the display. More...

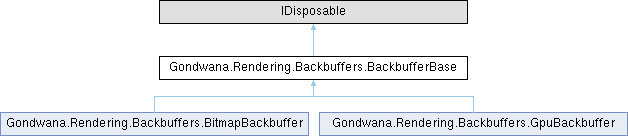

Inheritance diagram for Gondwana.Rendering.Backbuffers.BackbufferBase:

Public Member Functions
virtual byte[]	ToByteArray (SKEncodedImageFormat format=SKEncodedImageFormat.Png, int quality=100)
	Converts the current image to a byte array in the specified format and quality.
virtual void	Dispose ()
	Releases all resources used by the BackbufferBase instance.

Protected Member Functions
	BackbufferBase (int width, int height)
	Initializes a new instance of the BackbufferBase class with the specified dimensions.
void	UpdateSize (int width, int height)
	Updates the stored backbuffer dimensions and raises the SizeChanged event.

Protected Attributes
readonly SKPaint	_fillPaint

Properties
SKCanvas	Canvas [get]
	Gets the SkiaSharp canvas used for drawing operations on this backbuffer.
SKPaint	FogPaint [get, set]
	Gets or sets the paint object used to render fog effects.
SKPaint	GridLinePaint [get, set]
	Gets or sets the paint settings used to render grid lines.
SKPaint	CollisionBoxPaint [get, set]
	Gets or sets the paint settings used to render collision boxes.
int	Width [get]
	Gets the current Backbuffer width in a thread-safe manner.
int	Height [get]
	Gets the current Backbuffer height in a thread-safe manner.
SKColor	ClearColor [get, set]
	Gets or sets the color used to clear the drawing surface.

Detailed Description

Represents a base class for managing a graphical backbuffer, and is the in-memory surface where rendering operations are performed before being presented to the display.

This abstract class serves as the foundation for backbuffer implementations, offering methods and properties to facilitate rendering operations, manage graphical state, and interact with graphical elements such as tiles. Derived classes must implement the Canvas, DrawTileFrame(Tile, RectangleF), and Snapshot members to define specific rendering behavior.

Constructor & Destructor Documentation

BackbufferBase()

Gondwana.Rendering.Backbuffers.BackbufferBase.BackbufferBase ( int width, int height )

protected

Initializes a new instance of the BackbufferBase class with the specified dimensions.

Parameters

width	The width of the backbuffer in pixels.
height	The height of the backbuffer in pixels.

This constructor establishes the initial size of the backbuffer. Derived classes can override RequestResize to implement dynamic resizing behavior if needed.

Member Function Documentation

Dispose()

virtual void Gondwana.Rendering.Backbuffers.BackbufferBase.Dispose ( )

virtual

Releases all resources used by the BackbufferBase instance.

This method disposes of managed resources including paint objects used for fog effects, grid lines, collision boxes, and fill operations. Derived classes can override this method to dispose of additional resources but should call the base implementation to ensure proper cleanup of base class resources.

After disposal, the backbuffer should not be used for further rendering operations.

Reimplemented in Gondwana.Rendering.Backbuffers.BitmapBackbuffer, and Gondwana.Rendering.Backbuffers.GpuBackbuffer.

ToByteArray()

virtual byte[] Gondwana.Rendering.Backbuffers.BackbufferBase.ToByteArray ( SKEncodedImageFormat format = SKEncodedImageFormat::Png, int quality = 100 )

virtual

Converts the current image to a byte array in the specified format and quality.

This method creates a snapshot of the current image and encodes it into the specified format. The resulting byte array can be used for saving the image to a file, transmitting it over a network, or other purposes requiring a binary representation of the image.

Parameters

format	The format to encode the image in. The default is SKEncodedImageFormat.Png.
quality	The quality of the encoded image, ranging from 0 (lowest quality) to 100 (highest quality). This parameter is ignored for formats that do not support quality settings. The default is 100.

Returns

A byte array containing the encoded image data.

UpdateSize()

void Gondwana.Rendering.Backbuffers.BackbufferBase.UpdateSize ( int width, int height )

protected

Updates the stored backbuffer dimensions and raises the SizeChanged event.

Parameters

width	The new width in pixels.
height	The new height in pixels.

This method should be called by derived classes after successfully resizing the backbuffer to ensure that the Width and Height properties are updated in a thread-safe manner and subscribers are notified of the size change.

The method uses volatile writes to ensure visibility across threads and raises the SizeChanged event with the new dimensions.

Member Data Documentation

_fillPaint

readonly SKPaint Gondwana.Rendering.Backbuffers.BackbufferBase._fillPaint

protected

Initial value:

= new()
    {
        IsAntialias = false,
        BlendMode = SKBlendMode.Src,
        Style = SKPaintStyle.Fill,
        FilterQuality = SKFilterQuality.None,
    }

Property Documentation

Canvas

SKCanvas Gondwana.Rendering.Backbuffers.BackbufferBase.Canvas

getabstract

Gets the SkiaSharp canvas used for drawing operations on this backbuffer.

An SKCanvas instance that provides the drawing surface for rendering operations.

Derived classes must implement this property to provide access to the underlying drawing canvas. All rendering operations, including tiles, sprites, and direct drawing instances, are performed on this canvas.

The canvas should be configured with appropriate coordinate transformations, clipping regions, and rendering states before drawing operations begin.

ClearColor

SKColor Gondwana.Rendering.Backbuffers.BackbufferBase.ClearColor

getset

Gets or sets the color used to clear the drawing surface.

CollisionBoxPaint

SKPaint Gondwana.Rendering.Backbuffers.BackbufferBase.CollisionBoxPaint

getset

Initial value:

= new()
    {
        Color = SKColors.Green,
        IsStroke = true,
        StrokeWidth = 1
    }

Gets or sets the paint settings used to render collision boxes.

FogPaint

SKPaint Gondwana.Rendering.Backbuffers.BackbufferBase.FogPaint

getset

Initial value:

= new()
    {
        Color = new SKColor(0, 0, 0, 128),
        IsAntialias = true
    }

Gets or sets the paint object used to render fog effects.

GridLinePaint

SKPaint Gondwana.Rendering.Backbuffers.BackbufferBase.GridLinePaint

getset

Initial value:

= new()
    {
        Color = SKColors.White,
        IsStroke = true,
        StrokeWidth = 1
    }

Gets or sets the paint settings used to render grid lines.

Height

int Gondwana.Rendering.Backbuffers.BackbufferBase.Height

get

Gets the current Backbuffer height in a thread-safe manner.

Width

int Gondwana.Rendering.Backbuffers.BackbufferBase.Width

get

Gets the current Backbuffer width in a thread-safe manner.
