Provides shared Windows Forms host behavior for Gondwana game hosts. More...

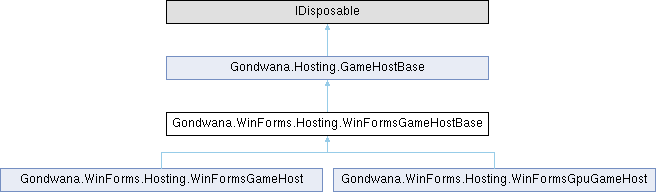

Inheritance diagram for Gondwana.WinForms.Hosting.WinFormsGameHostBase:

Protected Member Functions
	WinFormsGameHostBase (Control renderSurface, Action< Scene, bool > bindScene)
	Initializes a new instance of the WinFormsGameHostBase class.
override void	ConfigurePlatform ()
	Configures Windows Forms-specific platform features, including audio format support.
override void	ConfigureKeyboard ()
	Configures the keyboard adapter for the Windows Forms render surface.
override void	ConfigureMouse ()
	Configures the mouse adapter for the Windows Forms render surface.
override void	ConfigureGamepads ()
	Configures gamepad support. By default, this method initializes the XInput gamepad manager, but it can be overridden in derived classes to provide custom gamepad configuration.
override void	ConfigureTouch ()
	Configures touch input. By default, this method does not perform any actions, but it can be overridden in derived classes to set up touch input handling.
override void	BindScene ()
	Binds the current scene to the render surface host.
override void	OnSceneBound ()
	Called after the current scene has been bound to the Windows Forms render surface host.
virtual void	OnConfigurePlatform ()
	Provides a hook for configuring platform-specific settings during initialization.
virtual void	OnKeyboardAdapterInitialized ()
	Called after the keyboard adapter has been initialized. Override to perform additional keyboard setup.
virtual void	OnMouseAdapterInitialized ()
	Called after the mouse adapter has been initialized. Override to perform additional mouse setup.
virtual void	OnGamepadManagerInitialized ()
	Called after the gamepad manager has been initialized. Override to perform additional gamepad setup.
virtual void	OnTouchAdapterInitialized ()
	Called after the touch adapter has been initialized. Override to perform additional touch setup, such as attaching gesture recognizers.
Protected Member Functions inherited from Gondwana.Hosting.GameHostBase
void	InitializeWidgetInput (RenderSurfaceHostBase renderSurfaceHost)
	Initializes widget input routing for the supplied render surface host.
virtual void	OnInitializing ()
	Runs before the host initialization sequence begins.
void	ConfigureLogging (LogLevel logLevel)
	Configures the logging level used by Gondwana.
void	ConfigurePlatform ()
	Configures platform-specific services, adapters, and render infrastructure.
void	ConfigureInput ()
	Configures keyboard, mouse, gamepad, and touch input.
virtual void	OnInputConfigured ()
	Runs after all input devices have been configured.
void	InitializeGameContent ()
	Initializes game-specific content, the scene graph, and scene objects.
void	LoadContent ()
	Loads assets, tilesheets, and animation cycles.
virtual void	LoadAssets ()
	Loads textures, sounds, and other game assets.
virtual void	LoadTilesheets ()
	Loads tilesheet definitions.
virtual void	LoadAnimationCycles ()
	Loads animation cycle definitions.
void	CreateSceneGraph ()
	Creates the initial scene and its views.
virtual void	OnSceneGraphCreated ()
	Runs after the scene graph has been created but before the scene is bound.
virtual Scene	CreateInitialScene ()
	Creates the initial scene for the game.
virtual void	CreateInitialViews ()
	Creates the initial views and viewports used to render the scene.
void	InitializeSceneObjects ()
	Creates sprites and direct drawings for the current scene.
virtual void	CreateSprites ()
	Creates sprite objects for the current scene.
virtual void	CreateDirectDrawings ()
	Creates direct drawings and widgets for the current scene.
void	InitializeEngine (string? configPath, bool? autoSaveConfig)
	Initializes the Gondwana engine using the default file-backed configuration store.
void	InitializeEngine (string? configPath, bool? autoSaveConfig, IEngineConfigurationStore? configurationStore)
	Initializes the Gondwana engine.
virtual void	OnEngineInitialized ()
	Runs after the engine has been initialized but before it has been started.
void	StartEngine ()
	Starts the engine using the synchronization context returned by GetSynchronizationContext.
virtual void	StartEngineCore (SynchronizationContext syncContext)
	Starts the engine using the supplied synchronization context.
virtual ? SynchronizationContext	GetSynchronizationContext ()
	Gets the synchronization context used to start the engine.
virtual void	OnEngineStarted ()
	Runs after the engine has been started.
virtual void	OnInitialized ()
	Runs after the full host initialization sequence has completed.
virtual void	UnhookEvents ()
	Unhooks custom event handlers during disposal.
void	StopEngine ()
	Stops the engine during host disposal.
virtual void	StopEngineCore ()
	Performs platform-specific engine shutdown work.
void	DisposeEngine ()
	Disposes the engine instance.
virtual void	OnDisposing ()
	Runs before managed resources are disposed.
virtual void	OnDisposed ()
	Runs after managed resources have been disposed.
void	EnsureNotInitialized ()
	Ensures that the host has not already been initialized.
void	EnsureNotDisposed ()
	Ensures that the host has not been disposed.

Additional Inherited Members
Public Member Functions inherited from Gondwana.Hosting.GameHostBase
void	Initialize (string? configPath=null, bool? autoSaveConfig=null, LogLevel logLevel=LogLevel.Warning)
	Initializes the game host by configuring logging, platform services, input, game content, and the Gondwana engine.
void	InitializeWithConfigurationStore (IEngineConfigurationStore configurationStore, bool? autoSaveConfig=null, LogLevel logLevel=LogLevel.Warning)
	Initializes the game host using a caller-supplied configuration persistence store.
void	Dispose ()
	Releases resources owned by the game host.
Properties inherited from Gondwana.Hosting.GameHostBase
Engine	Engine `[get]`
	Gets the singleton instance of the Gondwana engine.
Scene?	Scene `[get, protected set]`
	Gets the current active scene.
WidgetInputRouter?	WidgetInputRouter `[get]`
	Gets the widget input router, if widget input has been initialized.

Detailed Description

Provides shared Windows Forms host behavior for Gondwana game hosts.

Definition at line 10 of file WinFormsGameHostBase.cs.

Constructor & Destructor Documentation

◆ WinFormsGameHostBase()

Gondwana.WinForms.Hosting.WinFormsGameHostBase.WinFormsGameHostBase	(	Control	renderSurface,
		Action< Scene, bool >	bindScene )

protected

Initializes a new instance of the WinFormsGameHostBase class.

Parameters

renderSurface	The control used for input handling.
bindScene	The scene-binding callback for the render surface host.

Exceptions

ArgumentNullException Thrown when renderSurface or bindScene is null.

Definition at line 21 of file WinFormsGameHostBase.cs.

Member Function Documentation

◆ BindScene()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.BindScene ( )

sealedprotectedvirtual

Binds the current scene to the render surface host.

Exceptions

InvalidOperationException Thrown when no scene has been created.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 77 of file WinFormsGameHostBase.cs.

◆ ConfigureGamepads()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.ConfigureGamepads ( )

protectedvirtual

Configures gamepad support. By default, this method initializes the XInput gamepad manager, but it can be overridden in derived classes to provide custom gamepad configuration.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 58 of file WinFormsGameHostBase.cs.

◆ ConfigureKeyboard()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.ConfigureKeyboard ( )

sealedprotectedvirtual

Configures the keyboard adapter for the Windows Forms render surface.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 39 of file WinFormsGameHostBase.cs.

◆ ConfigureMouse()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.ConfigureMouse ( )

sealedprotectedvirtual

Configures the mouse adapter for the Windows Forms render surface.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 48 of file WinFormsGameHostBase.cs.

◆ ConfigurePlatform()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.ConfigurePlatform ( )

sealedprotected

Configures Windows Forms-specific platform features, including audio format support.

Definition at line 30 of file WinFormsGameHostBase.cs.

◆ ConfigureTouch()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.ConfigureTouch ( )

protectedvirtual

Configures touch input. By default, this method does not perform any actions, but it can be overridden in derived classes to set up touch input handling.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 68 of file WinFormsGameHostBase.cs.

◆ OnConfigurePlatform()

virtual void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnConfigurePlatform ( )

protectedvirtual

Provides a hook for configuring platform-specific settings during initialization.

Definition at line 96 of file WinFormsGameHostBase.cs.

◆ OnGamepadManagerInitialized()

virtual void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnGamepadManagerInitialized ( )

protectedvirtual

Called after the gamepad manager has been initialized. Override to perform additional gamepad setup.

Definition at line 111 of file WinFormsGameHostBase.cs.

◆ OnKeyboardAdapterInitialized()

virtual void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnKeyboardAdapterInitialized ( )

protectedvirtual

Called after the keyboard adapter has been initialized. Override to perform additional keyboard setup.

Definition at line 101 of file WinFormsGameHostBase.cs.

◆ OnMouseAdapterInitialized()

virtual void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnMouseAdapterInitialized ( )

protectedvirtual

Called after the mouse adapter has been initialized. Override to perform additional mouse setup.

Definition at line 106 of file WinFormsGameHostBase.cs.

◆ OnSceneBound()

override void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnSceneBound ( )

protectedvirtual

Called after the current scene has been bound to the Windows Forms render surface host.

Reimplemented from Gondwana.Hosting.GameHostBase.

Definition at line 88 of file WinFormsGameHostBase.cs.

◆ OnTouchAdapterInitialized()

virtual void Gondwana.WinForms.Hosting.WinFormsGameHostBase.OnTouchAdapterInitialized ( )

protectedvirtual

Called after the touch adapter has been initialized. Override to perform additional touch setup, such as attaching gesture recognizers.

Definition at line 117 of file WinFormsGameHostBase.cs.
