Draws video frames provided by IVideoPlayer onto the backbuffer. Audio is handled by the IVideoPlayer implementation (e.g., VLC system output on desktop). Construct, control, update, draw and dispose on the engine/UI thread. More...

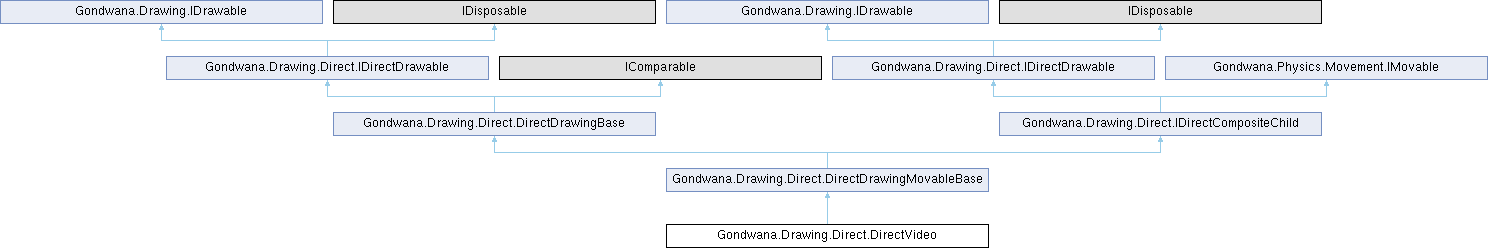

Inheritance diagram for Gondwana.Drawing.Direct.DirectVideo:

Public Member Functions
	DirectVideo (IVideoPlayer player, Uri source, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? name=null)
	Creates a world-space video with required presentation bounds. Owns the player.
	DirectVideo (IVideoPlayer player, Uri source, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? name=null)
	Creates a screen-space video with required presentation bounds. Owns the player.
	DirectVideo (Func< IVideoPlayer > playerFactory, Uri source, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? name=null)
	Creates a world-space video using an owned player from the factory.
	DirectVideo (Func< IVideoPlayer > playerFactory, Uri source, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? name=null)
	Creates a screen-space video using an owned player from the factory.
	DirectVideo (IVideoPlayer player, VideoSource source, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? name=null)
	Creates a world-space URI/stream/GAF video and starts playback. Owns the player.
	DirectVideo (IVideoPlayer player, VideoSource source, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? name=null)
	Creates a screen-space URI/stream/GAF video and starts playback. Owns the player.
	DirectVideo (Func< IVideoPlayer > playerFactory, VideoSource source, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? name=null)
	Creates a world-space URI/stream/GAF video using an owned player from the factory.
	DirectVideo (Func< IVideoPlayer > playerFactory, VideoSource source, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? name=null)
	Creates a screen-space URI/stream/GAF video using an owned player from the factory.
void	Open (VideoSource source)
	Replaces the source and starts playback. Call on the engine/UI thread.
void	Open (Uri source)
	Replaces the URI source and starts playback on the engine/UI thread.
override void	Update (long tick)
	Consumes the latest decoded frame on the engine thread, then advances fades.
void	Play ()
	Starts or resumes video playback.
void	Pause ()
	Pauses video playback at the current position.
void	Stop ()
	Stops video playback and resets the playback position to the beginning.
void	Seek (TimeSpan position)
	Seeks to a specific position in the video timeline.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
Vector2	GetPosition ()
	Gets the current position of this direct drawing in pixel coordinates.
void	SetPosition (Vector2 p)
	Sets the position of this direct drawing to the specified pixel coordinates.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
RectangleF	GetDrawLocationScreen (View view)
	Gets the screen-space drawing location for this direct drawing as seen from the specified view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders this direct drawing to the backbuffer at the specified screen location.
DirectDrawingBase	SetOpacity (float opacity)
	Instantly sets the opacity to the specified value without animation.
DirectDrawingBase	FadeTo (float targetOpacity, float durationSec)
	Initiates a smooth fade transition to the specified target opacity over the given duration.
DirectDrawingBase	FadeIn (float durationSec)
	Fades this direct drawing from its current opacity to fully opaque over the specified duration.
DirectDrawingBase	FadeOut (float durationSec)
	Fades this direct drawing from its current opacity to fully transparent over the specified duration.
DirectDrawingBase	CancelFade ()
	Cancels any active fade transition, leaving the opacity at its current value.
DirectDrawingBase	SetReveal (float t01)
	Instantly sets the reveal progress to the specified value without animation.
DirectDrawingBase	SetRevealDirection (RevealDirection dir)
	Sets the direction from which the reveal animation progresses.
DirectDrawingBase	RevealTo (float t01, float durationSec, Func< float, float >? easing=null)
	Initiates a smooth reveal animation to the specified target progress over the given duration, optionally using a custom easing function.
DirectDrawingBase	CancelReveal ()
	Stops an active reveal animation at its current progress.
int	CompareTo (DirectDrawingBase? other)
	Compares this direct drawing to another for sorting by ZOrder.
void	Dispose ()
	Releases all resources used by this DirectDrawingBase instance.
override bool	Equals (object? obj)
	Determines whether the specified object is equal to the current direct drawing.
override int	GetHashCode ()
	Returns a hash code for this direct drawing.

Public Attributes
int	width
	Decoded source dimensions, or (0,0) until known.

Protected Member Functions
override void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders the current video frame to the backbuffer at the specified destination rectangle.
override void	Dispose (bool disposing)
	Releases the unmanaged resources used by the DirectVideo and optionally releases the managed resources.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
	DirectDrawingMovableBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? name=null)
	Initializes a new instance of the DirectDrawingMovableBase class with integrated movement capabilities.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs the concrete drawing for this direct drawing to the backbuffer.
	DirectDrawingBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? nickname=null)
	Initializes a new instance of the DirectDrawingBase class.

Properties
StretchMode	Stretch `[get, set]`
	Gets or sets the stretch mode that determines how the video frame is scaled to fit within the destination bounds.
double	PlaybackRate `[get, set]`
	Gets or sets the playback speed multiplier.
bool	Loop `[get, set]`
	Gets or sets a value indicating whether the video should automatically restart from the beginning when it reaches the end.
VideoMetadata	Metadata `[get]`
	Metadata snapshot for the active source; Pending values are not authoritative.
int int height	NaturalSize `[get]`
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
MovementController	Movement `[get]`
	Gets the movement controller responsible for changing this direct drawing's position over time.
MovementSpace	PositionSpace `[get]`
	Gets the coordinate space in which this movable object's position is expressed.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingBase
bool	HideWhenFullyTransparent = true `[get, set]`
	Gets or sets a value indicating whether this direct drawing should be automatically hidden when its opacity reaches zero during fade transitions.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host that manages this direct drawing's rendering pipeline.
DirectDrawingMode	Mode `[get]`
	Gets the drawing mode that determines how this direct drawing is positioned and transformed.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer to which this direct drawing is attached, or `null` if the drawing is in view mode.
View?	View `[get]`
	Gets the view to which this direct drawing is attached, or `null` if the drawing is in scene-layer mode.
Rectangle	ScreenBounds `[get, set]`
	Gets or sets the screen-space bounds of this direct drawing in pixels.
Rectangle	WorldBounds `[get, set]`
	Gets or sets the world-space bounds of this direct drawing in pixels.
TypedValueBag	ValueBag = new() `[get]`
	Gets the extensible value bag for storing arbitrary key-value data associated with this direct drawing.
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier for this direct drawing.
string?	Nickname `[get]`
	Gets the optional human-readable name for this direct drawing.
int	ZOrder `[get, set]`
	Gets or sets the Z-order (depth) used for sorting this direct drawing relative to other drawables.
bool	Visible `[get, set]`
	Gets or sets a value indicating whether this direct drawing is visible and should be rendered.
float	Opacity `[get, set]`
	Gets or sets the current opacity of this direct drawing.
Properties inherited from Gondwana.Drawing.Direct.IDirectCompositeChild
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer used by a scene-layer child, or `null` for a view child.
View?	View `[get]`
	Gets the view used by a view child, or `null` for a scene-layer child.

Additional Inherited Members
Public Types inherited from Gondwana.Drawing.Direct.DirectDrawingBase
enum	RevealDirection { LeftToRight , RightToLeft , TopToBottom , BottomToTop }
	Defines the direction from which a reveal animation progressively displays the direct drawing. More...
Static Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
static bool	operator== (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are equal using reference equality.
static bool	operator!= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are not equal using reference equality.
static bool	operator< (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than the right.
static bool	operator<= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than or equal to the right.
static bool	operator> (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than the right.
static bool	operator>= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than or equal to the right.
Protected Attributes inherited from Gondwana.Drawing.Direct.DirectDrawingBase
readonly RenderSurfaceHostBase	_renderSurfaceHost
	The render surface host that manages this direct drawing's rendering pipeline.
Rectangle	_screenBounds
	The current screen-space bounds for view-mode direct drawings, in pixels.
Rectangle	_worldBounds
	The current world-space bounds for scene-layer-mode direct drawings, in pixels.
int	_zOrder
	The Z-order used for draw sorting. Higher values draw later (on top).
bool	_visible
	Indicates whether this direct drawing is currently visible and should be rendered.
long	_lastTick = HighResTimer.GetCurrentTick()
	The last engine tick value used for delta-time calculations in Update.
Events inherited from Gondwana.Drawing.Direct.DirectDrawingBase
EventHandler< IDirectDrawable >?	Disposing
	Occurs when this direct drawing is being disposed.
EventHandler< DirectDrawingBase >?	FadeToCompleted
	Occurs when a fade transition initiated by FadeTo, FadeIn, or FadeOut completes.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Draws video frames provided by IVideoPlayer onto the backbuffer. Audio is handled by the IVideoPlayer implementation (e.g., VLC system output on desktop). Construct, control, update, draw and dispose on the engine/UI thread.

Definition at line 16 of file DirectVideo.cs.

Constructor & Destructor Documentation

◆ DirectVideo() [1/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	IVideoPlayer	player,
		Uri	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	name = null )

Creates a world-space video with required presentation bounds. Owns the player.

Parameters

player	The media player to use.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
worldBounds	The bounds in world pixels.
name	The name.

Definition at line 98 of file DirectVideo.cs.

◆ DirectVideo() [2/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	IVideoPlayer	player,
		Uri	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	name = null )

Creates a screen-space video with required presentation bounds. Owns the player.

Parameters

player	The media player to use.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
screenBounds	The bounds in screen pixels.
name	The name.

Definition at line 109 of file DirectVideo.cs.

◆ DirectVideo() [3/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	Func< IVideoPlayer >	playerFactory,
		Uri	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	name = null )

Creates a world-space video using an owned player from the factory.

Parameters

playerFactory	The factory used to create the video player.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
worldBounds	The bounds in world pixels.
name	The name.

Definition at line 120 of file DirectVideo.cs.

◆ DirectVideo() [4/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	Func< IVideoPlayer >	playerFactory,
		Uri	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	name = null )

Creates a screen-space video using an owned player from the factory.

Parameters

playerFactory	The factory used to create the video player.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
screenBounds	The bounds in screen pixels.
name	The name.

Definition at line 131 of file DirectVideo.cs.

◆ DirectVideo() [5/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	IVideoPlayer	player,
		VideoSource	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	name = null )

Creates a world-space URI/stream/GAF video and starts playback. Owns the player.

Parameters

player	The media player to use.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
worldBounds	The bounds in world pixels.
name	The name.

Definition at line 142 of file DirectVideo.cs.

◆ DirectVideo() [6/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	IVideoPlayer	player,
		VideoSource	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	name = null )

Creates a screen-space URI/stream/GAF video and starts playback. Owns the player.

Parameters

player	The media player to use.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
screenBounds	The bounds in screen pixels.
name	The name.

Definition at line 153 of file DirectVideo.cs.

◆ DirectVideo() [7/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	Func< IVideoPlayer >	playerFactory,
		VideoSource	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	name = null )

Creates a world-space URI/stream/GAF video using an owned player from the factory.

Parameters

playerFactory	The factory used to create the video player.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
worldBounds	The bounds in world pixels.
name	The name.

Definition at line 164 of file DirectVideo.cs.

◆ DirectVideo() [8/8]

Gondwana.Drawing.Direct.DirectVideo.DirectVideo	(	Func< IVideoPlayer >	playerFactory,
		VideoSource	source,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	name = null )

Creates a screen-space URI/stream/GAF video using an owned player from the factory.

Parameters

playerFactory	The factory used to create the video player.
source	The source.
renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
screenBounds	The bounds in screen pixels.
name	The name.

Definition at line 175 of file DirectVideo.cs.

Member Function Documentation

◆ Dispose()

override void Gondwana.Drawing.Direct.DirectVideo.Dispose ( bool disposing )

protectedvirtual

Releases the unmanaged resources used by the DirectVideo and optionally releases the managed resources.

Parameters

disposing true to release both managed and unmanaged resources; false to release only unmanaged resources.

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingBase.

Definition at line 384 of file DirectVideo.cs.

◆ OnDraw()

override void Gondwana.Drawing.Direct.DirectVideo.OnDraw	(	BackbufferBase	backbuffer,
		RectangleF	destRectScreen )

protected

Renders the current video frame to the backbuffer at the specified destination rectangle.

Parameters

backbuffer	The backbuffer to draw onto.
destRectScreen	The destination rectangle in screen coordinates.

Definition at line 242 of file DirectVideo.cs.

◆ Open() [1/2]

void Gondwana.Drawing.Direct.DirectVideo.Open ( Uri source )

Replaces the URI source and starts playback on the engine/UI thread.

Parameters

source The source.

◆ Open() [2/2]

void Gondwana.Drawing.Direct.DirectVideo.Open ( VideoSource source )

Replaces the source and starts playback. Call on the engine/UI thread.

Parameters

source The source.

Definition at line 209 of file DirectVideo.cs.

◆ Pause()

void Gondwana.Drawing.Direct.DirectVideo.Pause ( )

Pauses video playback at the current position.

While paused, the current frame remains visible on screen. Call Play to resume playback from the paused position.

◆ Play()

void Gondwana.Drawing.Direct.DirectVideo.Play ( )

Starts or resumes video playback.

If the video is paused, this method resumes playback from the current position. If the video has not yet started, this method begins playback from the beginning. This method is called automatically during initialization.

◆ Seek()

void Gondwana.Drawing.Direct.DirectVideo.Seek ( TimeSpan position )

Seeks to a specific position in the video timeline.

Parameters

position The target position to seek to, specified as a TimeSpan from the beginning of the video.

Seeking may not be frame-accurate depending on the video codec and player implementation. Most players will seek to the nearest keyframe before or at the specified position.

This method can be called while the video is playing or paused.

// Seek to 30 seconds into the video
video.Seek(TimeSpan.FromSeconds(30));

// Seek to 2 minutes and 15 seconds
video.Seek(new TimeSpan(0, 2, 15));

◆ Stop()

void Gondwana.Drawing.Direct.DirectVideo.Stop ( )

Stops video playback and resets the playback position to the beginning.

The last consumed frame remains visible until another frame arrives or the source changes. Call Play to start playback again from the beginning.

◆ Update()

override void Gondwana.Drawing.Direct.DirectVideo.Update ( long tick )

virtual

Consumes the latest decoded frame on the engine thread, then advances fades.

Parameters

tick	The current engine tick.

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingMovableBase.

Definition at line 315 of file DirectVideo.cs.

Member Data Documentation

◆ width

int Gondwana.Drawing.Direct.DirectVideo.width

Decoded source dimensions, or (0,0) until known.

Definition at line 227 of file DirectVideo.cs.

Property Documentation

◆ Loop

bool Gondwana.Drawing.Direct.DirectVideo.Loop

getset

Gets or sets a value indicating whether the video should automatically restart from the beginning when it reaches the end.

When set to true, the video will continuously play in a loop. When set to false, playback stops when the video reaches its end.

true to enable looping; otherwise, false.

Definition at line 85 of file DirectVideo.cs.

◆ Metadata

VideoMetadata Gondwana.Drawing.Direct.DirectVideo.Metadata

get

Metadata snapshot for the active source; Pending values are not authoritative.

Definition at line 224 of file DirectVideo.cs.

◆ NaturalSize

int int height Gondwana.Drawing.Direct.DirectVideo.NaturalSize

get

Definition at line 227 of file DirectVideo.cs.

◆ PlaybackRate

double Gondwana.Drawing.Direct.DirectVideo.PlaybackRate

getset

Gets or sets the playback speed multiplier.

This property controls the rate at which the video plays relative to its normal speed. Setting this value updates the underlying IVideoPlayer immediately.

Common values:

0.5 - Half speed (slow motion)
1.0 - Normal speed
1.5 - 50% faster
2.0 - Double speed

A multiplier for playback speed. The default value is 1.0 (normal speed).

Definition at line 66 of file DirectVideo.cs.

◆ Stretch

StretchMode Gondwana.Drawing.Direct.DirectVideo.Stretch

getset

Gets or sets the stretch mode that determines how the video frame is scaled to fit within the destination bounds.

StretchMode.None - Video displays at its native resolution.
StretchMode.Fill - Video fills the entire bounds, ignoring aspect ratio.
StretchMode.Uniform - Video scales to fit inside bounds while preserving aspect ratio (letterboxing/pillarboxing as needed).
StretchMode.UniformToFill - Video scales to fill the entire bounds while preserving aspect ratio (cropping as needed).

The default value is StretchMode.Fill.

Definition at line 39 of file DirectVideo.cs.

Public Member Functions

Public Attributes

Protected Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DirectVideo() [1/8]

◆ DirectVideo() [2/8]

◆ DirectVideo() [3/8]

◆ DirectVideo() [4/8]

◆ DirectVideo() [5/8]

◆ DirectVideo() [6/8]

◆ DirectVideo() [7/8]

◆ DirectVideo() [8/8]

Member Function Documentation

◆ Dispose()

◆ OnDraw()

◆ Open() [1/2]

◆ Open() [2/2]

◆ Pause()

◆ Play()

◆ Seek()

◆ Stop()

◆ Update()

Member Data Documentation

◆ width

Property Documentation

◆ Loop

◆ Metadata

◆ NaturalSize

◆ PlaybackRate

◆ Stretch
