Gondwana.Drawing.Direct.DirectSvg Class Reference

Renders an SVG resource directly by rasterizing lazily and caching the bitmap per destination size. More...

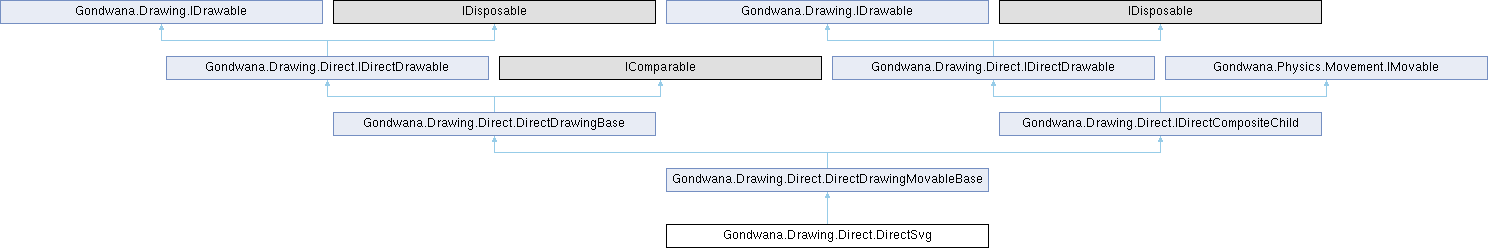

Inheritance diagram for Gondwana.Drawing.Direct.DirectSvg:

Public Member Functions
	DirectSvg (SvgResource svgResource, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? nickname=null)
	Initializes a new world-space DirectSvg.
	DirectSvg (SvgResource svgResource, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? nickname=null)
	Initializes a new screen-space DirectSvg.
DirectSvg	SetFilterQuality (SKFilterQuality quality)
	Sets the filter quality used when drawing the cached SVG bitmap.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
Vector2	GetPosition ()
	Gets the current position of this direct drawing in pixel coordinates.
void	SetPosition (Vector2 p)
	Sets the position of this direct drawing to the specified pixel coordinates.
override void	Update (long tick)
	Advances this direct drawing's movement using the elapsed time since its previous update, then performs the standard direct-drawing update logic.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
RectangleF	GetDrawLocationScreen (View view)
	Gets the screen-space drawing location for this direct drawing as seen from the specified view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders this direct drawing to the backbuffer at the specified screen location.
DirectDrawingBase	SetOpacity (float opacity)
	Instantly sets the opacity to the specified value without animation.
DirectDrawingBase	FadeTo (float targetOpacity, float durationSec)
	Initiates a smooth fade transition to the specified target opacity over the given duration.
DirectDrawingBase	FadeIn (float durationSec)
	Fades this direct drawing from its current opacity to fully opaque over the specified duration.
DirectDrawingBase	FadeOut (float durationSec)
	Fades this direct drawing from its current opacity to fully transparent over the specified duration.
DirectDrawingBase	CancelFade ()
	Cancels any active fade transition, leaving the opacity at its current value.
DirectDrawingBase	SetReveal (float t01)
	Instantly sets the reveal progress to the specified value without animation.
DirectDrawingBase	SetRevealDirection (RevealDirection dir)
	Sets the direction from which the reveal animation progresses.
DirectDrawingBase	RevealTo (float t01, float durationSec, Func< float, float >? easing=null)
	Initiates a smooth reveal animation to the specified target progress over the given duration, optionally using a custom easing function.
DirectDrawingBase	CancelReveal ()
	Stops an active reveal animation at its current progress.
int	CompareTo (DirectDrawingBase? other)
	Compares this direct drawing to another for sorting by ZOrder.
void	Dispose ()
	Releases all resources used by this DirectDrawingBase instance.
override bool	Equals (object? obj)
	Determines whether the specified object is equal to the current direct drawing.
override int	GetHashCode ()
	Returns a hash code for this direct drawing.

Protected Member Functions
override void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
override void	Dispose (bool disposing)
	Releases resources used by this DirectDrawingBase instance. Parameters disposing true to release both managed and unmanaged resources; false to release only unmanaged resources (called from finalizer). When disposing is true, this method: Marks affected regions as dirty by calling ForceRefresh. Raises the Disposing event. Clears all event handlers to prevent memory leaks.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
	DirectDrawingMovableBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? name=null)
	Initializes a new instance of the DirectDrawingMovableBase class with integrated movement capabilities.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs the concrete drawing for this direct drawing to the backbuffer.
	DirectDrawingBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? nickname=null)
	Initializes a new instance of the DirectDrawingBase class.

Additional Inherited Members
Public Types inherited from Gondwana.Drawing.Direct.DirectDrawingBase
enum	RevealDirection { LeftToRight , RightToLeft , TopToBottom , BottomToTop }
	Defines the direction from which a reveal animation progressively displays the direct drawing. More...
Static Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
static bool	operator== (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are equal using reference equality.
static bool	operator!= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are not equal using reference equality.
static bool	operator< (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than the right.
static bool	operator<= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than or equal to the right.
static bool	operator> (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than the right.
static bool	operator>= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than or equal to the right.
Protected Attributes inherited from Gondwana.Drawing.Direct.DirectDrawingBase
readonly RenderSurfaceHostBase	_renderSurfaceHost
	The render surface host that manages this direct drawing's rendering pipeline.
Rectangle	_screenBounds
	The current screen-space bounds for view-mode direct drawings, in pixels.
Rectangle	_worldBounds
	The current world-space bounds for scene-layer-mode direct drawings, in pixels.
int	_zOrder
	The Z-order used for draw sorting. Higher values draw later (on top).
bool	_visible
	Indicates whether this direct drawing is currently visible and should be rendered.
long	_lastTick = HighResTimer.GetCurrentTick()
	The last engine tick value used for delta-time calculations in Update.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
MovementController	Movement [get]
	Gets the movement controller responsible for changing this direct drawing's position over time.
MovementSpace	PositionSpace [get]
	Gets the coordinate space in which this movable object's position is expressed.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingBase
bool	HideWhenFullyTransparent = true [get, set]
	Gets or sets a value indicating whether this direct drawing should be automatically hidden when its opacity reaches zero during fade transitions.
RenderSurfaceHostBase	RenderSurfaceHost [get]
	Gets the render surface host that manages this direct drawing's rendering pipeline.
DirectDrawingMode	Mode [get]
	Gets the drawing mode that determines how this direct drawing is positioned and transformed.
SceneLayer?	SceneLayer [get]
	Gets the scene layer to which this direct drawing is attached, or null if the drawing is in view mode.
View?	View [get]
	Gets the view to which this direct drawing is attached, or null if the drawing is in scene-layer mode.
Rectangle	ScreenBounds [get, set]
	Gets or sets the screen-space bounds of this direct drawing in pixels.
Rectangle	WorldBounds [get, set]
	Gets or sets the world-space bounds of this direct drawing in pixels.
TypedValueBag	ValueBag = new() [get]
	Gets the extensible value bag for storing arbitrary key-value data associated with this direct drawing.
Guid	Id = Guid.NewGuid() [get]
	Gets the unique identifier for this direct drawing.
string?	Nickname [get]
	Gets the optional human-readable name for this direct drawing.
int	ZOrder [get, set]
	Gets or sets the Z-order (depth) used for sorting this direct drawing relative to other drawables.
bool	Visible [get, set]
	Gets or sets a value indicating whether this direct drawing is visible and should be rendered.
float	Opacity [get, set]
	Gets or sets the current opacity of this direct drawing.
Properties inherited from Gondwana.Drawing.Direct.IDirectCompositeChild
SceneLayer?	SceneLayer [get]
	Gets the scene layer used by a scene-layer child, or null for a view child.
View?	View [get]
	Gets the view used by a view child, or null for a scene-layer child.
Events inherited from Gondwana.Drawing.Direct.DirectDrawingBase
EventHandler< IDirectDrawable >?	Disposing
	Occurs when this direct drawing is being disposed.
EventHandler< DirectDrawingBase >?	FadeToCompleted
	Occurs when a fade transition initiated by FadeTo, FadeIn, or FadeOut completes.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Renders an SVG resource directly by rasterizing lazily and caching the bitmap per destination size.

Definition at line 14 of file DirectSvg.cs.

Constructor & Destructor Documentation

DirectSvg() [1/2]

Gondwana.Drawing.Direct.DirectSvg.DirectSvg	(	SvgResource	svgResource,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	nickname = null )

Initializes a new world-space DirectSvg.

Parameters

svgResource	The svg resource.
renderSurfaceHost	The render-surface host that owns the drawing.
sceneLayer	The scene layer that owns the content.
worldBounds	The bounds in world pixels.
nickname	An optional name used to identify the object.

Definition at line 49 of file DirectSvg.cs.

DirectSvg() [2/2]

Gondwana.Drawing.Direct.DirectSvg.DirectSvg	(	SvgResource	svgResource,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	nickname = null )

Initializes a new screen-space DirectSvg.

Parameters

svgResource	The svg resource.
renderSurfaceHost	The render-surface host that owns the drawing.
view	The view used for presentation and coordinate conversion.
screenBounds	The bounds in screen pixels.
nickname	An optional name used to identify the object.

Definition at line 65 of file DirectSvg.cs.

Member Function Documentation

Dispose()

override void Gondwana.Drawing.Direct.DirectSvg.Dispose ( bool disposing )

protectedvirtual

Releases resources used by this DirectDrawingBase instance.

Parameters

disposing

true to release both managed and unmanaged resources; false to release only unmanaged resources (called from finalizer).

When disposing is true, this method:

• Marks affected regions as dirty by calling ForceRefresh.
• Raises the Disposing event.
• Clears all event handlers to prevent memory leaks.

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingBase.

Definition at line 102 of file DirectSvg.cs.

OnDraw()

override void Gondwana.Drawing.Direct.DirectSvg.OnDraw ( BackbufferBase backbuffer, RectangleF destRectScreen )

protected

Definition at line 86 of file DirectSvg.cs.

SetFilterQuality()

DirectSvg Gondwana.Drawing.Direct.DirectSvg.SetFilterQuality

(

SKFilterQuality

quality

)

Sets the filter quality used when drawing the cached SVG bitmap.

Parameters

quality

The image encoding quality, from 0 through 100.

Returns

This instance for fluent chaining.

Definition at line 78 of file DirectSvg.cs.
