Renders a bitmap or image to a rectangular region with support for scaling modes, source clipping, tinting, opacity, blend modes, and rotation. More...

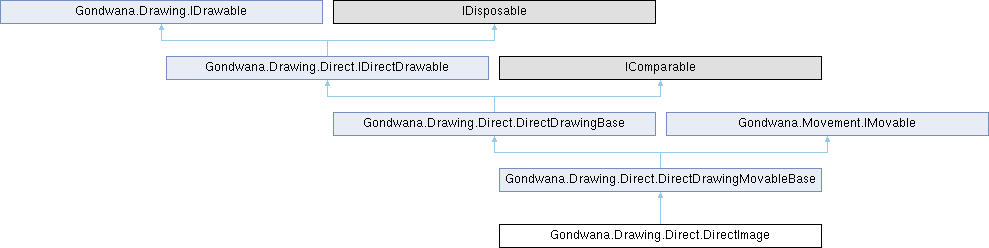

Inheritance diagram for Gondwana.Drawing.Direct.DirectImage:

Public Types
enum	ScaleMode { Stretch , Fit , Fill , Center , PixelPerfect }
	Defines how an image is scaled to fit within the destination rectangle. More...
Public Types inherited from Gondwana.Drawing.Direct.DirectDrawingBase
enum	RevealDirection { LeftToRight , RightToLeft , TopToBottom , BottomToTop }
	Defines the direction from which a reveal animation progressively displays the direct drawing. More...

Public Member Functions
	DirectImage (SKBitmap bitmap, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? nickname=null)
	Initializes a new instance of the DirectImage class for scene-layer (world-space) rendering using a bitmap.
	DirectImage (SKBitmap bitmap, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? nickname=null)
	Initializes a new instance of the DirectImage class for view (screen-space) rendering using a bitmap.
	DirectImage (SKImage image, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, Rectangle worldBounds, string? nickname=null)
	Initializes a new instance of the DirectImage class for scene-layer (world-space) rendering using a pre-encoded image.
	DirectImage (SKImage image, RenderSurfaceHostBase renderSurfaceHost, View view, Rectangle screenBounds, string? nickname=null)
	Initializes a new instance of the DirectImage class for view (screen-space) rendering using a pre-encoded image.
DirectImage	SetBitmap (SKBitmap bitmap)
	Replaces the backing bitmap with a new one.
DirectImage	SetImage (SKImage image)
	Replaces the backing image with a new one.
DirectImage	SetSourceRect (SKRect? srcPixels)
	Sets the source rectangle within the image to display, enabling sprite sheet support.
DirectImage	SetScaleMode (ScaleMode mode)
	Sets how the image is scaled to fit within the destination rectangle.
DirectImage	SetTint (SKColor color)
	Applies a color tint (multiplicative blend) to the image.
DirectImage	ClearTint ()
	Removes any color tint, restoring the image's original colors.
DirectImage	SetOpacity (byte alpha)
	Sets the overall opacity (alpha transparency) of the image.
DirectImage	SetBlendMode (SKBlendMode mode)
	Sets the Skia blend mode used when compositing this image onto the backbuffer.
DirectImage	SetFilterQuality (SKFilterQuality q)
	Sets the filter quality used when scaling the image.
DirectImage	SetRotation (float degrees)
	Sets the rotation angle in degrees around the anchor point.
DirectImage	SetAnchor (float ax, float ay)
	Sets the rotation and scaling anchor point within the destination rectangle using normalized coordinates.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
Vector2	GetPosition ()
	Gets the current position of this direct drawing in pixel coordinates.
void	SetPosition (Vector2 p)
	Sets the position of this direct drawing to the specified pixel coordinates.
override void	Update (long tick)
	Performs per-frame update logic, including fixed-timestep physics integration for movement.
Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
RectangleF	GetDrawLocationScreen (View view)
	Gets the screen-space drawing location for this direct drawing as seen from the specified view.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders this direct drawing to the backbuffer at the specified screen location.
DirectDrawingBase	SetOpacity (float opacity)
	Instantly sets the opacity to the specified value without animation.
DirectDrawingBase	FadeTo (float targetOpacity, float durationSec)
	Initiates a smooth fade transition to the specified target opacity over the given duration.
DirectDrawingBase	FadeIn (float durationSec)
	Fades this direct drawing from its current opacity to fully opaque over the specified duration.
DirectDrawingBase	FadeOut (float durationSec)
	Fades this direct drawing from its current opacity to fully transparent over the specified duration.
DirectDrawingBase	CancelFade ()
	Cancels any active fade transition, leaving the opacity at its current value.
DirectDrawingBase	SetReveal (float t01)
	Instantly sets the reveal progress to the specified value without animation.
DirectDrawingBase	SetRevealDirection (RevealDirection dir)
	Sets the direction from which the reveal animation progresses.
DirectDrawingBase	RevealTo (float t01, float durationSec, Func< float, float >? easing=null)
	Initiates a smooth reveal animation to the specified target progress over the given duration, optionally using a custom easing function.
int	CompareTo (DirectDrawingBase? other)
	Compares this direct drawing to another for sorting by ZOrder.
void	Dispose ()
	Releases all resources used by this DirectDrawingBase instance.
override bool	Equals (object? obj)
	Determines whether the specified object is equal to the current direct drawing.
override int	GetHashCode ()
	Returns a hash code for this direct drawing.

Protected Member Functions
override void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Renders the image to the backbuffer with all configured transformations and effects applied.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
	DirectDrawingMovableBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? name=null)
	Initializes a new instance of the DirectDrawingMovableBase class with integrated movement capabilities.
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs the concrete drawing for this direct drawing to the backbuffer.
	DirectDrawingBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? nickname=null)
	Initializes a new instance of the DirectDrawingBase class.
virtual void	Dispose (bool disposing)
	Releases resources used by this DirectDrawingBase instance.

Additional Inherited Members
Static Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
static bool	operator== (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are equal using reference equality.
static bool	operator!= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are not equal using reference equality.
static bool	operator< (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than the right.
static bool	operator<= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than or equal to the right.
static bool	operator> (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than the right.
static bool	operator>= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than or equal to the right.
Protected Attributes inherited from Gondwana.Drawing.Direct.DirectDrawingBase
readonly RenderSurfaceHostBase	_renderSurfaceHost
	The render surface host that manages this direct drawing's rendering pipeline.
Rectangle	_screenBounds
	The current screen-space bounds for view-mode direct drawings, in pixels.
Rectangle	_worldBounds
	The current world-space bounds for scene-layer-mode direct drawings, in pixels.
int	_zOrder
	The Z-order used for draw sorting. Higher values draw later (on top).
bool	_visible
	Indicates whether this direct drawing is currently visible and should be rendered.
long	_lastTick = HighResTimer.GetCurrentTick()
	The last engine tick value used for delta-time calculations in Update.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingMovableBase
MovementController	Movement `[get]`
	Gets the movement controller that manages physics-based position, velocity, and forces for this direct drawing.
MovementSpace	PositionSpace `[get]`
	Gets the coordinate space in which this movable object's position is expressed.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingBase
bool	HideWhenFullyTransparent = true `[get, set]`
	Gets or sets a value indicating whether this direct drawing should be automatically hidden when its opacity reaches zero during fade transitions.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host that manages this direct drawing's rendering pipeline.
DirectDrawingMode	Mode `[get]`
	Gets the drawing mode that determines how this direct drawing is positioned and transformed.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer to which this direct drawing is attached, or `null` if the drawing is in view mode.
View?	View `[get]`
	Gets the view to which this direct drawing is attached, or `null` if the drawing is in scene-layer mode.
Rectangle	ScreenBounds `[get, set]`
	Gets or sets the screen-space bounds of this direct drawing in pixels.
Rectangle	WorldBounds `[get, set]`
	Gets or sets the world-space bounds of this direct drawing in pixels.
TypedValueBag	ValueBag = new() `[get]`
	Gets the extensible value bag for storing arbitrary key-value data associated with this direct drawing.
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier for this direct drawing.
string?	Nickname `[get]`
	Gets the optional human-readable name for this direct drawing.
int	ZOrder `[get, set]`
	Gets or sets the Z-order (depth) used for sorting this direct drawing relative to other drawables.
bool	Visible `[get, set]`
	Gets or sets a value indicating whether this direct drawing is visible and should be rendered.
float	Opacity `[get, set]`
	Gets or sets the current opacity of this direct drawing.
Events inherited from Gondwana.Drawing.Direct.DirectDrawingBase
EventHandler< IDirectDrawable >?	Disposing
	Occurs when this direct drawing is being disposed.
EventHandler< DirectDrawingBase >?	FadeToCompleted
	Occurs when a fade transition initiated by FadeTo, FadeIn, or FadeOut completes.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Renders a bitmap or image to a rectangular region with support for scaling modes, source clipping, tinting, opacity, blend modes, and rotation.

DirectImage provides a flexible way to display images (either SKImage or SKBitmap) with extensive control over rendering appearance. It supports both world-space (scene-layer mode) and screen-space (view mode) positioning, making it suitable for both in-game sprites and UI elements.

Key features:

Multiple scaling modes: stretch, fit, fill, center, and pixel-perfect.
Source rectangle clipping to display specific regions of an image (sprite sheets).
Color tinting and opacity control for visual effects.
Rotation around a configurable anchor point within the destination rectangle.
Customizable Skia blend modes and filter quality for advanced rendering.
Physics-based movement via inherited DirectDrawingMovableBase capabilities.

Important: DirectImage does not take ownership of the provided SKImage or SKBitmap. The caller is responsible for managing the lifetime of image resources and ensuring they remain valid while the DirectImage is in use. Dispose of image resources only after disposing the DirectImage.

All setter methods return this to enable fluent-style method chaining. Each setter automatically marks the affected screen regions as dirty to trigger rerendering on the next frame.

Thread safety: This class is not thread-safe. All operations should be performed on the UI thread.

// Create an image in world space with fit scaling and rotation
var image = new DirectImage(myBitmap, renderSurfaceHost, sceneLayer, worldBounds)
    .SetScaleMode(DirectImage.ScaleMode.Fit)
    .SetRotation(45f)
    .SetAnchor(0.5f, 0.5f)
    .SetTint(new SKColor(255, 200, 200))
    .SetOpacity(200);

// Apply physics-based movement
image.Movement.ApplyImpulse(new Vector2(100, -50));

Member Enumeration Documentation

◆ ScaleMode

enum Gondwana.Drawing.Direct.DirectImage.ScaleMode

Defines how an image is scaled to fit within the destination rectangle.

The scale mode determines the relationship between the source image dimensions and the destination rectangle, controlling whether the image is stretched, letterboxed, cropped, or displayed at native resolution.

Enumerator
Stretch	Stretches the image to fill the entire destination rectangle, ignoring aspect ratio. The image may appear distorted if the aspect ratios do not match.
Fit	Scales the image to fit entirely within the destination rectangle while preserving aspect ratio. Letterboxing (empty space) may appear on the sides or top/bottom if aspect ratios differ. The image is centered within the destination rectangle.
Fill	Scales the image to completely cover the destination rectangle while preserving aspect ratio. The image may be cropped on the sides or top/bottom if aspect ratios differ. The image is centered within the destination rectangle.
Center	Displays the image at its native resolution without scaling, centered in the destination rectangle. If the image is larger than the destination, it will be clipped. If the image is smaller, empty space will appear around it.
PixelPerfect	Scales the image by the largest integer factor that fits within the destination rectangle while preserving aspect ratio. Minimum scale factor is 1 (no scaling down). This mode is ideal for pixel art to avoid sub-pixel rendering artifacts.

Constructor & Destructor Documentation

◆ DirectImage() [1/4]

Gondwana.Drawing.Direct.DirectImage.DirectImage	(	SKBitmap	bitmap,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	nickname = null )

Initializes a new instance of the DirectImage class for scene-layer (world-space) rendering using a bitmap.

Parameters

bitmap	The bitmap to display. Must not be `null`. The caller retains ownership and must manage its lifetime.
renderSurfaceHost	The render surface host that manages rendering for this image. Must not be `null`.
sceneLayer	The scene layer to which this image is attached. The image will be positioned in world coordinates relative to this layer.
worldBounds	The world-space bounds in pixels defining the image's position and size.
nickname	An optional human-readable name for this image, useful for debugging and identification.

Exceptions

ArgumentNullException Thrown when bitmap or renderSurfaceHost is null.

This constructor creates an image positioned in world coordinates that moves with the camera and is affected by the scene layer's parallax factor. Use this for in-game sprites, background elements, and other world-space visuals.

The bitmap is converted to SKImage during rendering for optimal performance. The caller must ensure the bitmap remains valid for the lifetime of this DirectImage instance.

◆ DirectImage() [2/4]

Gondwana.Drawing.Direct.DirectImage.DirectImage	(	SKBitmap	bitmap,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	nickname = null )

Initializes a new instance of the DirectImage class for view (screen-space) rendering using a bitmap.

Parameters

bitmap	The bitmap to display. Must not be `null`. The caller retains ownership and must manage its lifetime.
renderSurfaceHost	The render surface host that manages rendering for this image. Must not be `null`.
view	The view to which this image is attached. The image will be positioned in screen coordinates relative to this view's viewport.
screenBounds	The screen-space bounds in pixels defining the image's position and size within the viewport.
nickname	An optional human-readable name for this image, useful for debugging and identification.

Exceptions

ArgumentNullException Thrown when bitmap or renderSurfaceHost is null.

This constructor creates an image positioned in screen coordinates that remains fixed on screen regardless of camera movement. Use this for UI elements, HUD overlays, menus, and other screen-space visuals.

The bitmap is converted to SKImage during rendering for optimal performance. The caller must ensure the bitmap remains valid for the lifetime of this DirectImage instance.

◆ DirectImage() [3/4]

Gondwana.Drawing.Direct.DirectImage.DirectImage	(	SKImage	image,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		Rectangle	worldBounds,
		string?	nickname = null )

Initializes a new instance of the DirectImage class for scene-layer (world-space) rendering using a pre-encoded image.

Parameters

image	The image to display. Must not be `null`. The caller retains ownership and must manage its lifetime.
renderSurfaceHost	The render surface host that manages rendering for this image. Must not be `null`.
sceneLayer	The scene layer to which this image is attached. The image will be positioned in world coordinates relative to this layer.
worldBounds	The world-space bounds in pixels defining the image's position and size.
nickname	An optional human-readable name for this image, useful for debugging and identification.

Exceptions

ArgumentNullException Thrown when image or renderSurfaceHost is null.

This constructor creates an image positioned in world coordinates that moves with the camera and is affected by the scene layer's parallax factor. Use this for in-game sprites, background elements, and other world-space visuals.

Using SKImage directly is more efficient than SKBitmap for rendering, especially when the same image is used multiple times. The caller must ensure the image remains valid for the lifetime of this DirectImage instance.

◆ DirectImage() [4/4]

Gondwana.Drawing.Direct.DirectImage.DirectImage	(	SKImage	image,
		RenderSurfaceHostBase	renderSurfaceHost,
		View	view,
		Rectangle	screenBounds,
		string?	nickname = null )

Initializes a new instance of the DirectImage class for view (screen-space) rendering using a pre-encoded image.

Parameters

image	The image to display. Must not be `null`. The caller retains ownership and must manage its lifetime.
renderSurfaceHost	The render surface host that manages rendering for this image. Must not be `null`.
view	The view to which this image is attached. The image will be positioned in screen coordinates relative to this view's viewport.
screenBounds	The screen-space bounds in pixels defining the image's position and size within the viewport.
nickname	An optional human-readable name for this image, useful for debugging and identification.

Exceptions

ArgumentNullException Thrown when image or renderSurfaceHost is null.

This constructor creates an image positioned in screen coordinates that remains fixed on screen regardless of camera movement. Use this for UI elements, HUD overlays, menus, and other screen-space visuals.

Using SKImage directly is more efficient than SKBitmap for rendering, especially when the same image is used multiple times. The caller must ensure the image remains valid for the lifetime of this DirectImage instance.

Member Function Documentation

◆ ClearTint()

DirectImage Gondwana.Drawing.Direct.DirectImage.ClearTint ( )

Removes any color tint, restoring the image's original colors.

Returns: This DirectImage instance for method chaining.

After calling this method, the image will be rendered with its original colors (equivalent to a white tint). Opacity settings from SetOpacity remain unaffected.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ OnDraw()

override void Gondwana.Drawing.Direct.DirectImage.OnDraw	(	BackbufferBase	backbuffer,
		RectangleF	destRectScreen )

protected

Renders the image to the backbuffer with all configured transformations and effects applied.

Parameters

backbuffer	The backbuffer providing the canvas and rendering context.
destRectScreen	The destination rectangle in screen pixel coordinates where the image should be rendered.

This method is called automatically by the rendering pipeline. It performs the following operations:

Converts the source bitmap to SKImage if necessary.
Determines the source rectangle (full image or specified sub-rect).
Computes the destination rectangle based on the scale mode.
Applies tint and opacity via color filter.
Applies rotation transformation around the anchor point if rotation is non-zero.
Draws the image to the canvas with all effects applied.
Disposes temporary SKImage instances created from bitmaps.

Do not call this method directly from game code. To trigger a redraw, call DirectDrawingBase.ForceRefresh or modify properties that affect appearance.

◆ SetAnchor()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetAnchor	(	float	ax,
		float	ay )

Sets the rotation and scaling anchor point within the destination rectangle using normalized coordinates.

Parameters

ax	The horizontal anchor position from 0.0 (left edge) to 1.0 (right edge). Values are clamped to this range.
ay	The vertical anchor position from 0.0 (top edge) to 1.0 (bottom edge). Values are clamped to this range.

Returns: This DirectImage instance for method chaining.

The anchor point determines the origin for rotation transformations. It is specified in normalized coordinates relative to the destination rectangle:

(0.0, 0.0) - Top-left corner
(0.5, 0.5) - Center (default)
(1.0, 1.0) - Bottom-right corner

For example, setting the anchor to (1.0, 0.5) and rotating will cause the image to rotate around its right-center edge, creating a door-opening effect.

Values outside the 0..1 range are clamped. The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetBitmap()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetBitmap ( SKBitmap bitmap )

Replaces the backing bitmap with a new one.

Parameters

bitmap The new bitmap to display. Must not be null.

Returns: This DirectImage instance for method chaining.

Exceptions

ArgumentNullException Thrown when bitmap is null.

This method replaces the current image source with the specified bitmap. The bitmap is converted to SKImage during rendering for optimal performance. Any previously set SKImage is discarded (but not disposed, as ownership remains with the caller).

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame. The caller retains ownership of the bitmap and must ensure it remains valid while in use.

◆ SetBlendMode()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetBlendMode ( SKBlendMode mode )

Sets the Skia blend mode used when compositing this image onto the backbuffer.

Parameters

mode	The blend mode to apply. See SKBlendMode for available options.

Returns: This DirectImage instance for method chaining.

The blend mode determines how the image's pixels are combined with the existing backbuffer contents. Common modes include:

SKBlendMode.SrcOver (default) - Standard alpha blending.
SKBlendMode.Screen - Brightening effect, useful for light effects.
SKBlendMode.Multiply - Darkening effect, useful for shadows.
SKBlendMode.Plus - Additive blending for glow effects.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetFilterQuality()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetFilterQuality ( SKFilterQuality q )

Sets the filter quality used when scaling the image.

Parameters

q	The filter quality level. Higher quality produces smoother results but may be slower. See SKFilterQuality for available options.

Returns: This DirectImage instance for method chaining.

Filter quality affects how the image is sampled when scaling. Options include:

SKFilterQuality.None - Nearest-neighbor sampling, ideal for pixel art.
SKFilterQuality.Low - Bilinear filtering, faster but may appear blurry.
SKFilterQuality.Medium (default) - Good balance of quality and performance.
SKFilterQuality.High - Highest quality, slowest performance.

For pixel art games, use SKFilterQuality.None combined with ScaleMode.PixelPerfect to preserve crisp pixel boundaries.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetImage()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetImage ( SKImage image )

Replaces the backing image with a new one.

Parameters

image The new image to display. Must not be null.

Returns: This DirectImage instance for method chaining.

Exceptions

ArgumentNullException Thrown when image is null.

This method replaces the current image source with the specified SKImage. Any previously set SKBitmap is discarded. Using SKImage directly is more efficient for rendering than converting from SKBitmap.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame. The caller retains ownership of the image and must ensure it remains valid while in use.

◆ SetOpacity()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetOpacity ( byte alpha )

Sets the overall opacity (alpha transparency) of the image.

Parameters

alpha The opacity value from 0 (fully transparent) to 255 (fully opaque).

Returns: This DirectImage instance for method chaining.

The opacity is applied uniformly to the entire image after any tint has been applied. An opacity of 0 makes the image invisible, while 255 renders it at full opacity.

This opacity is independent of the DirectDrawingBase.Opacity property inherited from the base class. If both are set, their effects are combined multiplicatively during rendering.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetRotation()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetRotation ( float degrees )

Sets the rotation angle in degrees around the anchor point.

Parameters

degrees The rotation angle in degrees. Positive values rotate clockwise, negative values rotate counter-clockwise.

Returns: This DirectImage instance for method chaining.

The image is rotated around the anchor point specified by SetAnchor. By default, the anchor is at the center (0.5, 0.5), so the image rotates around its center point.

A rotation of 0 degrees means no rotation. Values are not clamped; you can specify any angle, and it will wrap around (e.g., 360 degrees is equivalent to 0 degrees).

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetScaleMode()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetScaleMode ( ScaleMode mode )

Sets how the image is scaled to fit within the destination rectangle.

Parameters

mode	The scaling mode to apply. See ScaleMode for available options.

Returns: This DirectImage instance for method chaining.

The scale mode determines how the source image (or source rectangle) is mapped to the destination bounds. Different modes preserve or ignore aspect ratio and handle size mismatches differently:

ScaleMode.Stretch - Fills the destination, may distort the image.
ScaleMode.Fit - Preserves aspect ratio, may letterbox.
ScaleMode.Fill - Preserves aspect ratio, may crop.
ScaleMode.Center - No scaling, centers the image.
ScaleMode.PixelPerfect - Integer scaling for crisp pixel art.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetSourceRect()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetSourceRect ( SKRect? srcPixels )

Sets the source rectangle within the image to display, enabling sprite sheet support.

Parameters

srcPixels The source rectangle in image pixel coordinates, or null to display the entire image. Coordinates are relative to the top-left corner of the image.

Returns: This DirectImage instance for method chaining.

Use this method to display a specific region of a larger image, which is useful for sprite sheets, texture atlases, or animated sprites. When null, the entire image is displayed.

The source rectangle dimensions do not need to match the destination rectangle; the specified region will be scaled according to the current SetScaleMode.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

◆ SetTint()

DirectImage Gondwana.Drawing.Direct.DirectImage.SetTint ( SKColor color )

Applies a color tint (multiplicative blend) to the image.

Parameters

color The tint color to apply. Each RGB channel is multiplied with the corresponding image pixel channel.

Returns: This DirectImage instance for method chaining.

The tint color is multiplied with each pixel of the source image using SKBlendMode.Modulate. White (SKColors.White) produces no color change, while other colors shift the image's hue. Black will result in a completely black image.

The alpha channel of the tint color is ignored; use SetOpacity to control transparency. To remove the tint and restore original colors, call ClearTint.

The affected screen regions are automatically marked as dirty to trigger rerendering on the next frame.

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ScaleMode

Constructor & Destructor Documentation

◆ DirectImage() [1/4]

◆ DirectImage() [2/4]

◆ DirectImage() [3/4]

◆ DirectImage() [4/4]

Member Function Documentation

◆ ClearTint()

◆ OnDraw()

◆ SetAnchor()

◆ SetBitmap()

◆ SetBlendMode()

◆ SetFilterQuality()

◆ SetImage()

◆ SetOpacity()

◆ SetRotation()

◆ SetScaleMode()

◆ SetSourceRect()

◆ SetTint()
