Gondwana.Effects.DisplayEffect Class Reference

Base class for transient effects applied to a View or SceneLayer. More...

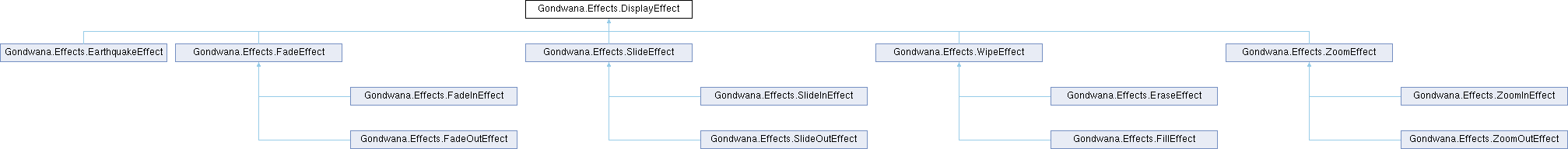

Inheritance diagram for Gondwana.Effects.DisplayEffect:

Public Member Functions
void	Cancel ()
	Cancels the effect and restores the presentation state that existed when it began.

Protected Member Functions
	DisplayEffect (float durationSeconds, EasingKind easing=EasingKind.Linear)
	Initializes a new instance of the DisplayEffect class.
TTarget	GetTarget< TTarget > ()
	Gets the effect target as the requested reference type.
virtual void	OnStarting ()
	Captures or prepares target state before the effect starts.
void	ApplyProgress (float progress)
	Applies the eased effect progress to the target.
virtual void	OnCompleted ()
	Runs the effect-specific completion behavior.
void	RestoreOriginalState ()
	Restores the target state captured when the effect started.

Properties
Guid	Id = Guid.NewGuid() [get]
	Gets the effect's unique identifier.
float	DurationSeconds [get]
	Gets the requested effect duration in seconds.
EasingKind	Easing [get]
	Gets the easing curve used to transform normalized progress.
EffectStatus	Status = EffectStatus.Pending [get]
	Gets the current lifecycle state.
float	Progress [get]
	Gets the normalized, uneased progress in the range 0 through 1.

Events
Action< DisplayEffect >?	Completed
	Occurs when the effect reaches its requested duration.
Action< DisplayEffect >?	Cancelled
	Occurs when the effect is cancelled or replaced.

Detailed Description

Base class for transient effects applied to a View or SceneLayer.

Display effects update presentation-only state. They do not move world objects, change collision geometry, or alter a SceneLayer's canonical origin.

Definition at line 12 of file DisplayEffect.cs.

Constructor & Destructor Documentation

DisplayEffect()

Gondwana.Effects.DisplayEffect.DisplayEffect ( float durationSeconds, EasingKind easing = EasingKind::Linear )

protected

Initializes a new instance of the DisplayEffect class.

Parameters

durationSeconds	The duration in seconds.
easing	The easing function applied to progress.

Definition at line 23 of file DisplayEffect.cs.

Member Function Documentation

ApplyProgress()

void Gondwana.Effects.DisplayEffect.ApplyProgress ( float progress )

abstractprotected

Applies the eased effect progress to the target.

Parameters

progress

The normalized progress of the operation.

Cancel()

void Gondwana.Effects.DisplayEffect.Cancel

(

)

Cancels the effect and restores the presentation state that existed when it began.

GetTarget< TTarget >()

TTarget Gondwana.Effects.DisplayEffect.GetTarget< TTarget > ( )

protected

Gets the effect target as the requested reference type.

Template Parameters

TTarget

The type of target.

Returns

The effect target cast to the requested type.

Type Constraints

TTarget

:

class

OnCompleted()

virtual void Gondwana.Effects.DisplayEffect.OnCompleted ( )

protectedvirtual

Runs the effect-specific completion behavior.

Reimplemented in Gondwana.Effects.ZoomEffect.

Definition at line 158 of file DisplayEffect.cs.

OnStarting()

virtual void Gondwana.Effects.DisplayEffect.OnStarting ( )

protectedvirtual

Captures or prepares target state before the effect starts.

Reimplemented in Gondwana.Effects.EarthquakeEffect, Gondwana.Effects.FadeEffect, Gondwana.Effects.SlideEffect, Gondwana.Effects.WipeEffect, and Gondwana.Effects.ZoomEffect.

Definition at line 145 of file DisplayEffect.cs.

RestoreOriginalState()

void Gondwana.Effects.DisplayEffect.RestoreOriginalState ( )

abstractprotected

Restores the target state captured when the effect started.

Property Documentation

DurationSeconds

float Gondwana.Effects.DisplayEffect.DurationSeconds

get

Gets the requested effect duration in seconds.

Definition at line 41 of file DisplayEffect.cs.

Easing

EasingKind Gondwana.Effects.DisplayEffect.Easing

get

Gets the easing curve used to transform normalized progress.

Definition at line 44 of file DisplayEffect.cs.

Id

Guid Gondwana.Effects.DisplayEffect.Id = Guid.NewGuid()

get

Gets the effect's unique identifier.

Definition at line 38 of file DisplayEffect.cs.

Progress

float Gondwana.Effects.DisplayEffect.Progress

get

Gets the normalized, uneased progress in the range 0 through 1.

Definition at line 50 of file DisplayEffect.cs.

Status

EffectStatus Gondwana.Effects.DisplayEffect.Status = EffectStatus.Pending

get

Gets the current lifecycle state.

Definition at line 47 of file DisplayEffect.cs.

Event Documentation

Cancelled

Action<DisplayEffect>? Gondwana.Effects.DisplayEffect.Cancelled

Occurs when the effect is cancelled or replaced.

Definition at line 35 of file DisplayEffect.cs.

Completed

Action<DisplayEffect>? Gondwana.Effects.DisplayEffect.Completed

Occurs when the effect reaches its requested duration.

Definition at line 32 of file DisplayEffect.cs.
