Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent Class Reference

A Blazor component that presents Gondwana game frames on an HTML <canvas> element and forwards keyboard, mouse, and touch events to the Gondwana input adapters. More...

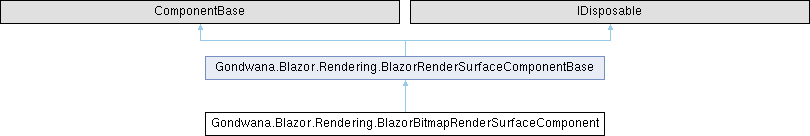

Inheritance diagram for Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent:

Public Member Functions
void	OnCanvasSizeChanged (int width, int height)
	Updates the adapter after JavaScript observes a canvas client-size change.
override void	Dispose ()
Public Member Functions inherited from Gondwana.Blazor.Rendering.BlazorRenderSurfaceComponentBase
void	Dispose ()
	Releases resources owned by the concrete render surface component.

Protected Member Functions
override void	OnInitialized ()
override async Task	OnAfterRenderAsync (bool firstRender)
Protected Member Functions inherited from Gondwana.Blazor.Rendering.BlazorRenderSurfaceComponentBase
override void	OnParametersSet ()
void	HandleKeyDown (KeyboardEventArgs e)
	Forwards a browser key-down event to registered input adapters.
void	HandleKeyUp (KeyboardEventArgs e)
	Forwards a browser key-up event to registered input adapters.
void	HandleMouseMove (MouseEventArgs e)
	Forwards a browser mouse-move event to registered input adapters.
void	HandleMouseDown (MouseEventArgs e)
	Forwards a browser mouse-down event to registered input adapters.
void	HandleMouseUp (MouseEventArgs e)
	Forwards a browser mouse-up event to registered input adapters.
void	HandleWheel (WheelEventArgs e)
	Forwards a browser wheel event to registered input adapters.
Task	HandleTouchStart (TouchEventArgs e)
	Forwards a browser touch-start event to registered input adapters.
Task	HandleTouchMove (TouchEventArgs e)
	Forwards a browser touch-move event to registered input adapters.
Task	HandleTouchEnd (TouchEventArgs e)
	Forwards a browser touch-end event to registered input adapters.
void	HandleTouchCancel (TouchEventArgs e)
	Forwards a browser touch-cancel event to registered input adapters.

Properties
BlazorBitmapRenderSurfaceAdapter	Adapter = null! [get]
	Gets the render surface adapter that drives this component.
RenderSurfaceHost< BitmapBackbuffer >	Host = null! [get]
	Gets the RenderSurfaceHost<T> bound to this component.
Properties inherited from Gondwana.Blazor.Rendering.BlazorRenderSurfaceComponentBase
Dictionary< string, object >?	AdditionalAttributes [get, set]
	Gets or sets additional attributes applied to the underlying HTML canvas element.
IReadOnlyDictionary< string, object >?	CanvasAttributes [get]
	Gets the canvas attributes with the component-owned style attribute removed.
string	CanvasStyle = DefaultCanvasStyle [get]
	Gets the effective canvas style, including Gondwana's required defaults.

Detailed Description

A Blazor component that presents Gondwana game frames on an HTML <canvas> element and forwards keyboard, mouse, and touch events to the Gondwana input adapters.

Place this component anywhere in your Blazor page layout and pass the instance to BlazorGameHost (from Gondwana.Blazor.Hosting) to wire up the engine lifecycle.

The component must be visible in the DOM before Initialize is called on the host, because rendering is initiated during OnAfterRenderAsync on the first render.

Keyboard events require the canvas to have focus. The component requests focus automatically on first render; games may also call element.focus() from JavaScript as needed.

Definition at line 26 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

Member Function Documentation

Dispose()

override void Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.Dispose

(

)

Definition at line 165 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

OnAfterRenderAsync()

override async Task Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.OnAfterRenderAsync ( bool firstRender )

protected

Definition at line 53 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

OnCanvasSizeChanged()

void Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.OnCanvasSizeChanged	(	int	width,
		int	height )

Updates the adapter after JavaScript observes a canvas client-size change.

Parameters

width	Canvas client width in CSS pixels.
height	Canvas client height in CSS pixels.

Definition at line 106 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

OnInitialized()

override void Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.OnInitialized ( )

protected

Definition at line 46 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

Property Documentation

Adapter

BlazorBitmapRenderSurfaceAdapter Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.Adapter = null!

get

Gets the render surface adapter that drives this component.

Definition at line 34 of file BlazorBitmapRenderSurfaceComponent.razor.cs.

Host

RenderSurfaceHost<BitmapBackbuffer> Gondwana.Blazor.Rendering.BlazorBitmapRenderSurfaceComponent.Host = null!

get

Gets the RenderSurfaceHost<T> bound to this component.

Definition at line 37 of file BlazorBitmapRenderSurfaceComponent.razor.cs.
