Represents a composite container that groups multiple direct drawable items together, managing their positions relative to a common anchor point and providing batch operations. More...

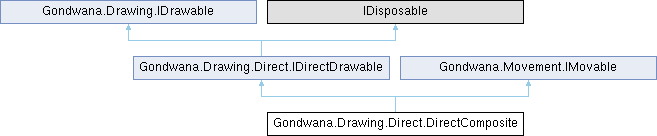

Inheritance diagram for Gondwana.Drawing.Direct.DirectComposite:

Public Member Functions
	DirectComposite (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, PointF anchor=default, string? nickname=null)
	Initializes a new instance of the DirectComposite class.
Vector2	GetPosition ()
	Gets the current anchor position of the composite in pixels.
void	SetPosition (Vector2 pos)
	Sets the composite anchor position using a Vector2.
RectangleF	GetDrawLocationScreen (View view)
	Gets the screen rectangle that encompasses all visible children in the composite.
void	Draw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Draws the composite. This is intentionally a no-op as children are responsible for their own rendering.
DirectComposite	Add (DirectDrawingMovableBase child, bool keepCurrentOffset=true, Vector2? explicitLocalOffsetPx=null)
	Adds a child and stores its local pixel offset from the composite anchor. If keepCurrentOffset is true (default), the offset is computed from the child's current Bounds. Otherwise, pass an explicit local pixel offset.
DirectComposite	Remove (DirectDrawingMovableBase child)
	Removes a child from the composite.
DirectComposite	Clear ()
	Removes all children from the composite.
DirectComposite	SetPosition (float x, float y)
	Sets the composite anchor position in pixels and repositions all children from their stored local offsets.
DirectComposite	SetLocalOffset (DirectDrawingMovableBase child, Vector2 newLocalOffsetPx)
	Changes a specific child's local pixel offset and re-applies its absolute position.
DirectComposite	SetZOrder (int z)
	Sets the Z-order for all children in the composite.
DirectComposite	SetOpacity (float opacity)
	Sets the opacity for all children in the composite.
DirectComposite	SetIsVisible (bool visible)
	Sets the visibility for all children in the composite.
DirectComposite	FadeTo (float targetOpacity, float durationSec)
	Fades all children to the specified target opacity over the given duration.
DirectComposite	FadeIn (float durationSec)
	Fades all children to full opacity (1.0) over the given duration.
DirectComposite	FadeOut (float durationSec)
	Fades all children to zero opacity (0.0) over the given duration.
void	Update (long tick)
	Updates the composite's movement controller based on the current tick.
void	Dispose ()
	Releases all resources used by the composite and disposes all child drawables.

Properties
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host associated with this composite.
DirectDrawingMode	Mode `[get]`
	Gets the drawing mode for this composite (world or screen space).
ReadOnlyCollection< DirectDrawingMovableBase >	Children `[get]`
	Gets the read-only collection of child drawable items in this composite.
MovementController	Movement `[get]`
	Gets the movement controller for animating the composite's position.
Rectangle	ScreenBounds `[get]`
	Gets the bounding rectangle that encompasses all visible children in screen coordinates.
Rectangle	WorldBounds `[get]`
	Gets the bounding rectangle that encompasses all visible children in world coordinates.
MovementSpace	PositionSpace `[get]`
	Gets the position space used by this composite. Always returns MovementSpace.Pixel.
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier for this composite.
string?	Nickname `[get]`
	Gets the optional friendly name for this composite.
bool	Visible `[get, set]`
	Gets or sets the visibility of the composite. Returns true if any child is visible; setting this sets all children's Visible to the same value.
int	ZOrder `[get]`
	Gets the Z-order of the composite. Always returns 0 as individual children manage their own Z-order.

Events
EventHandler< IDirectDrawable >?	Disposing
	Event raised when this composite is being disposed.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Detailed Description

Represents a composite container that groups multiple direct drawable items together, managing their positions relative to a common anchor point and providing batch operations.

Constructor & Destructor Documentation

◆ DirectComposite()

Gondwana.Drawing.Direct.DirectComposite.DirectComposite	(	RenderSurfaceHostBase	renderSurfaceHost,
		DirectDrawingMode	mode,
		PointF	anchor = default,
		string?	nickname = null )

Initializes a new instance of the DirectComposite class.

Parameters

renderSurfaceHost	The render surface host for drawing operations.
mode	The drawing mode (world or screen space).
anchor	The anchor point for the composite in pixels. Default is (0, 0).
nickname	Optional friendly name for the composite.

Member Function Documentation

◆ Add()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.Add	(	DirectDrawingMovableBase	child,
		bool	keepCurrentOffset = true,
		Vector2?	explicitLocalOffsetPx = null )

Adds a child and stores its local pixel offset from the composite anchor. If keepCurrentOffset is true (default), the offset is computed from the child's current Bounds. Otherwise, pass an explicit local pixel offset.

Parameters

child	The child drawable to add to the composite.
keepCurrentOffset	If true, computes the offset from the child's current position relative to the anchor. If false, uses the explicit offset.
explicitLocalOffsetPx	Optional explicit pixel offset to use when keepCurrentOffset is false.

Returns: This composite instance for method chaining.

◆ Clear()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.Clear ( )

Removes all children from the composite.

Returns: This composite instance for method chaining.

◆ Dispose()

void Gondwana.Drawing.Direct.DirectComposite.Dispose ( )

Releases all resources used by the composite and disposes all child drawables.

◆ Draw()

void Gondwana.Drawing.Direct.DirectComposite.Draw	(	BackbufferBase	backbuffer,
		RectangleF	destRectScreen )

Draws the composite. This is intentionally a no-op as children are responsible for their own rendering.

Parameters

backbuffer	The backbuffer to draw to.
destRectScreen	The destination rectangle in screen coordinates.

Implements Gondwana.Drawing.IDrawable.

◆ FadeIn()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeIn ( float durationSec )

Fades all children to full opacity (1.0) over the given duration.

Parameters

durationSec The duration of the fade-in animation in seconds.

Returns: This composite instance for method chaining.

◆ FadeOut()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeOut ( float durationSec )

Fades all children to zero opacity (0.0) over the given duration.

Parameters

durationSec The duration of the fade-out animation in seconds.

Returns: This composite instance for method chaining.

◆ FadeTo()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.FadeTo	(	float	targetOpacity,
		float	durationSec )

Fades all children to the specified target opacity over the given duration.

Parameters

targetOpacity	The target opacity value (0.0 to 1.0).
durationSec	The duration of the fade animation in seconds.

Returns: This composite instance for method chaining.

◆ GetDrawLocationScreen()

RectangleF Gondwana.Drawing.Direct.DirectComposite.GetDrawLocationScreen ( View view )

Gets the screen rectangle that encompasses all visible children in the composite.

Parameters

view	The view to use for coordinate transformation.

Returns: The bounding rectangle in screen coordinates, or an empty rectangle if no children are visible.

Implements Gondwana.Drawing.IDrawable.

◆ GetPosition()

Vector2 Gondwana.Drawing.Direct.DirectComposite.GetPosition ( )

Gets the current anchor position of the composite in pixels.

Returns: The anchor position as a Vector2.

Implements Gondwana.Movement.IMovable.

◆ Remove()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.Remove ( DirectDrawingMovableBase child )

Removes a child from the composite.

Parameters

child The child drawable to remove.

Returns: This composite instance for method chaining.

◆ SetIsVisible()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetIsVisible ( bool visible )

Sets the visibility for all children in the composite.

Parameters

visible True to make all children visible; false to hide them.

Returns: This composite instance for method chaining.

◆ SetLocalOffset()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetLocalOffset	(	DirectDrawingMovableBase	child,
		Vector2	newLocalOffsetPx )

Changes a specific child's local pixel offset and re-applies its absolute position.

Parameters

child	The child whose offset to change.
newLocalOffsetPx	The new local pixel offset relative to the composite's anchor.

Returns: This composite instance for method chaining.

◆ SetOpacity()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetOpacity ( float opacity )

Sets the opacity for all children in the composite.

Parameters

opacity The opacity value (0.0 to 1.0) to apply to all children.

Returns: This composite instance for method chaining.

◆ SetPosition() [1/2]

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetPosition	(	float	x,
		float	y )

Sets the composite anchor position in pixels and repositions all children from their stored local offsets.

Parameters

x	The X coordinate of the anchor in pixels.
y	The Y coordinate of the anchor in pixels.

Returns: This composite instance for method chaining.

◆ SetPosition() [2/2]

void Gondwana.Drawing.Direct.DirectComposite.SetPosition ( Vector2 pos )

Sets the composite anchor position using a Vector2.

Parameters

pos	The new anchor position in pixels.

Implements Gondwana.Movement.IMovable.

◆ SetZOrder()

DirectComposite Gondwana.Drawing.Direct.DirectComposite.SetZOrder ( int z )

Sets the Z-order for all children in the composite.

Parameters

z	The Z-order value to apply to all children.

Returns: This composite instance for method chaining.

◆ Update()

void Gondwana.Drawing.Direct.DirectComposite.Update ( long tick )

Updates the composite's movement controller based on the current tick.

Parameters

tick	The current high-resolution tick value.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

Property Documentation

◆ Children

ReadOnlyCollection<DirectDrawingMovableBase> Gondwana.Drawing.Direct.DirectComposite.Children

get

Gets the read-only collection of child drawable items in this composite.

◆ Id

Guid Gondwana.Drawing.Direct.DirectComposite.Id = Guid.NewGuid()

get

Gets the unique identifier for this composite.

Implements Gondwana.Drawing.IDrawable.

◆ Mode

DirectDrawingMode Gondwana.Drawing.Direct.DirectComposite.Mode

get

Gets the drawing mode for this composite (world or screen space).

Implements Gondwana.Drawing.Direct.IDirectDrawable.

◆ Movement

MovementController Gondwana.Drawing.Direct.DirectComposite.Movement

get

Gets the movement controller for animating the composite's position.

◆ Nickname

string? Gondwana.Drawing.Direct.DirectComposite.Nickname

get

Gets the optional friendly name for this composite.

Implements Gondwana.Drawing.IDrawable.

◆ PositionSpace

MovementSpace Gondwana.Drawing.Direct.DirectComposite.PositionSpace

get

Gets the position space used by this composite. Always returns MovementSpace.Pixel.

Implements Gondwana.Movement.IMovable.

◆ RenderSurfaceHost

RenderSurfaceHostBase Gondwana.Drawing.Direct.DirectComposite.RenderSurfaceHost

get

Gets the render surface host associated with this composite.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

◆ ScreenBounds

Rectangle Gondwana.Drawing.Direct.DirectComposite.ScreenBounds

get

Gets the bounding rectangle that encompasses all visible children in screen coordinates.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

◆ Visible

bool Gondwana.Drawing.Direct.DirectComposite.Visible

getset

Gets or sets the visibility of the composite. Returns true if any child is visible; setting this sets all children's Visible to the same value.

Implements Gondwana.Drawing.IDrawable.

◆ WorldBounds

Rectangle Gondwana.Drawing.Direct.DirectComposite.WorldBounds

get

Gets the bounding rectangle that encompasses all visible children in world coordinates.

Implements Gondwana.Drawing.Direct.IDirectDrawable.

◆ ZOrder

int Gondwana.Drawing.Direct.DirectComposite.ZOrder

get

Gets the Z-order of the composite. Always returns 0 as individual children manage their own Z-order.

Implements Gondwana.Drawing.IDrawable.

Event Documentation

◆ Disposing

EventHandler<IDirectDrawable>? Gondwana.Drawing.Direct.DirectComposite.Disposing

Event raised when this composite is being disposed.

Public Member Functions

Properties

Events

Detailed Description

Constructor & Destructor Documentation

◆ DirectComposite()

Member Function Documentation

◆ Add()

◆ Clear()

◆ Dispose()

◆ Draw()

◆ FadeIn()

◆ FadeOut()

◆ FadeTo()

◆ GetDrawLocationScreen()

◆ GetPosition()

◆ Remove()

◆ SetIsVisible()

◆ SetLocalOffset()

◆ SetOpacity()

◆ SetPosition() [1/2]

◆ SetPosition() [2/2]

◆ SetZOrder()

◆ Update()

Property Documentation

◆ Children

◆ Id

◆ Mode

◆ Movement

◆ Nickname

◆ PositionSpace

◆ RenderSurfaceHost

◆ ScreenBounds

◆ Visible

◆ WorldBounds

◆ ZOrder

Event Documentation

◆ Disposing
