Draws a bounded, radial light effect as a scene-layer direct drawing. More...

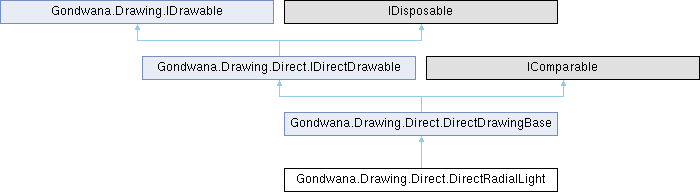

Inheritance diagram for Gondwana.Drawing.Direct.DirectRadialLight:

Public Member Functions

DirectRadialLight (Color lightColor, RenderSurfaceHostBase renderSurfaceHost, SceneLayer sceneLayer, PointF centerWorldPx, float radiusWorldPx, string? nickname=null)

Initializes a new scene-layer radial light.

DirectRadialLight MoveTo (PointF centerWorldPx)

Moves the light center and returns this instance for chaining.

DirectRadialLight SetRadius (float radiusWorldPx)

Sets the light radius and returns this instance for chaining.

DirectRadialLight SetIntensity (float intensity)

Sets the light intensity and returns this instance for chaining.

override void Update (long tick)

Performs per-frame update logic for this direct drawing, including fade and reveal animations.

Parameters

tick	The current engine tick value from HighResTimer.

This method is called automatically by the DirectDrawingManager each frame. The base implementation advances active fade and reveal animations. Override this method in derived classes to add custom per-frame logic (such as animation or physics updates).

Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase

RectangleF GetDrawLocationScreen (View view)

Gets the screen-space drawing location for this direct drawing as seen from the specified view.

void Draw (BackbufferBase backbuffer, RectangleF destRectScreen)

Renders this direct drawing to the backbuffer at the specified screen location.

DirectDrawingBase SetOpacity (float opacity)

Instantly sets the opacity to the specified value without animation.

DirectDrawingBase FadeTo (float targetOpacity, float durationSec)

Initiates a smooth fade transition to the specified target opacity over the given duration.

DirectDrawingBase FadeIn (float durationSec)

Fades this direct drawing from its current opacity to fully opaque over the specified duration.

DirectDrawingBase FadeOut (float durationSec)

Fades this direct drawing from its current opacity to fully transparent over the specified duration.

DirectDrawingBase CancelFade ()

Cancels any active fade transition, leaving the opacity at its current value.

DirectDrawingBase SetReveal (float t01)

Instantly sets the reveal progress to the specified value without animation.

DirectDrawingBase SetRevealDirection (RevealDirection dir)

Sets the direction from which the reveal animation progresses.

DirectDrawingBase RevealTo (float t01, float durationSec, Func< float, float >? easing=null)

Initiates a smooth reveal animation to the specified target progress over the given duration, optionally using a custom easing function.

DirectDrawingBase CancelReveal ()

Stops an active reveal animation at its current progress.

int CompareTo (DirectDrawingBase? other)

Compares this direct drawing to another for sorting by ZOrder.

void Dispose ()

Releases all resources used by this DirectDrawingBase instance.

override bool Equals (object? obj)

Determines whether the specified object is equal to the current direct drawing.

override int GetHashCode ()

Returns a hash code for this direct drawing.

Protected Member Functions
override void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
Protected Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
void	OnDraw (BackbufferBase backbuffer, RectangleF destRectScreen)
	Performs the concrete drawing for this direct drawing to the backbuffer.
	DirectDrawingBase (RenderSurfaceHostBase renderSurfaceHost, DirectDrawingMode mode, SceneLayer? sceneLayer, View? view, Rectangle? screenBounds, Rectangle? worldBounds, string? nickname=null)
	Initializes a new instance of the DirectDrawingBase class.
virtual void	Dispose (bool disposing)
	Releases resources used by this DirectDrawingBase instance.

Properties
PointF	CenterWorldPx `[get, set]`
	Gets the light center in world pixels.
float	RadiusWorldPx `[get, set]`
	Gets the light radius in world pixels.
Color	LightColor `[get, set]`
	Gets or sets the color and base alpha of the light.
float	Intensity `[get, set]`
	Gets or sets the overall intensity multiplier from 0 to 1.
float	EffectiveIntensity `[get]`
	Gets the current intensity after flicker has been applied.
SKBlendMode	BlendMode `[get, set]`
	Gets or sets the blend mode used when compositing the light over scene content.
float	HotspotRadiusRatio `[get, set]`
	Gets or sets the radius ratio for the hottest inner portion of the gradient.
float	MidpointRadiusRatio `[get, set]`
	Gets or sets the radius ratio for the middle gradient stop.
float	MidpointIntensityRatio `[get, set]`
	Gets or sets the middle stop intensity multiplier from 0 to 1.
bool	IsAntialias `[get, set]`
	Gets or sets whether Skia antialiasing is enabled for the light draw.
bool	FlickerEnabled `[get, set]`
	Gets or sets whether the light should periodically vary its intensity.
float	FlickerAmount `[get, set]`
	Gets or sets how much flicker may alter the base intensity. Recommended range: 0 to 0.25.
int	FlickerRefreshHz `[get, set]`
	Gets or sets how often flicker is recomputed and dirtied.
Properties inherited from Gondwana.Drawing.Direct.DirectDrawingBase
bool	HideWhenFullyTransparent = true `[get, set]`
	Gets or sets a value indicating whether this direct drawing should be automatically hidden when its opacity reaches zero during fade transitions.
RenderSurfaceHostBase	RenderSurfaceHost `[get]`
	Gets the render surface host that manages this direct drawing's rendering pipeline.
DirectDrawingMode	Mode `[get]`
	Gets the drawing mode that determines how this direct drawing is positioned and transformed.
SceneLayer?	SceneLayer `[get]`
	Gets the scene layer to which this direct drawing is attached, or `null` if the drawing is in view mode.
View?	View `[get]`
	Gets the view to which this direct drawing is attached, or `null` if the drawing is in scene-layer mode.
Rectangle	ScreenBounds `[get, set]`
	Gets or sets the screen-space bounds of this direct drawing in pixels.
Rectangle	WorldBounds `[get, set]`
	Gets or sets the world-space bounds of this direct drawing in pixels.
TypedValueBag	ValueBag = new() `[get]`
	Gets the extensible value bag for storing arbitrary key-value data associated with this direct drawing.
Guid	Id = Guid.NewGuid() `[get]`
	Gets the unique identifier for this direct drawing.
string?	Nickname `[get]`
	Gets the optional human-readable name for this direct drawing.
int	ZOrder `[get, set]`
	Gets or sets the Z-order (depth) used for sorting this direct drawing relative to other drawables.
bool	Visible `[get, set]`
	Gets or sets a value indicating whether this direct drawing is visible and should be rendered.
float	Opacity `[get, set]`
	Gets or sets the current opacity of this direct drawing.

Events
Action< DirectRadialLight >?	Changed
	Occurs when this light changes in a way tracked darkness overlays care about.
Events inherited from Gondwana.Drawing.Direct.DirectDrawingBase
EventHandler< IDirectDrawable >?	Disposing
	Occurs when this direct drawing is being disposed.
EventHandler< DirectDrawingBase >?	FadeToCompleted
	Occurs when a fade transition initiated by FadeTo, FadeIn, or FadeOut completes.
Events inherited from Gondwana.Drawing.Direct.IDirectDrawable
EventHandler< IDirectDrawable >?	Disposing
	Occurs when the object is being disposed.

Additional Inherited Members
Public Types inherited from Gondwana.Drawing.Direct.DirectDrawingBase
enum	RevealDirection { LeftToRight , RightToLeft , TopToBottom , BottomToTop }
	Defines the direction from which a reveal animation progressively displays the direct drawing. More...
Static Public Member Functions inherited from Gondwana.Drawing.Direct.DirectDrawingBase
static bool	operator== (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are equal using reference equality.
static bool	operator!= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether two direct drawing instances are not equal using reference equality.
static bool	operator< (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than the right.
static bool	operator<= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is less than or equal to the right.
static bool	operator> (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than the right.
static bool	operator>= (DirectDrawingBase? left, DirectDrawingBase? right)
	Determines whether the Z-order of the left direct drawing is greater than or equal to the right.
Protected Attributes inherited from Gondwana.Drawing.Direct.DirectDrawingBase
readonly RenderSurfaceHostBase	_renderSurfaceHost
	The render surface host that manages this direct drawing's rendering pipeline.
Rectangle	_screenBounds
	The current screen-space bounds for view-mode direct drawings, in pixels.
Rectangle	_worldBounds
	The current world-space bounds for scene-layer-mode direct drawings, in pixels.
int	_zOrder
	The Z-order used for draw sorting. Higher values draw later (on top).
bool	_visible
	Indicates whether this direct drawing is currently visible and should be rendered.
long	_lastTick = HighResTimer.GetCurrentTick()
	The last engine tick value used for delta-time calculations in Update.

Detailed Description

Draws a bounded, radial light effect as a scene-layer direct drawing.

DirectRadialLight is intended for localized draw-time lighting effects such as torches, lamps, spell glows, and other finite-radius light sources. It is deliberately modeled as a normal DirectDrawingBase instead of a post-process effect so it participates in Gondwana's existing dirty-rectangle selection path.

The important contract is its bounds: DirectDrawingBase.WorldBounds is the full world-space area that may be affected by the light. When a light moves or changes radius, both the old and new bounds are marked dirty by the inherited DirectDrawingBase.WorldBounds setter.

Rendering uses a Skia radial-gradient SKShader on an SKPaint. This keeps the first lighting primitive compatible with both bitmap and GPU-backed backbuffers while still exercising the same "shader during draw" idea that a later SkSL-backed implementation would use.

Definition at line 31 of file DirectRadialLight.cs.

Constructor & Destructor Documentation

◆ DirectRadialLight()

Gondwana.Drawing.Direct.DirectRadialLight.DirectRadialLight	(	Color	lightColor,
		RenderSurfaceHostBase	renderSurfaceHost,
		SceneLayer	sceneLayer,
		PointF	centerWorldPx,
		float	radiusWorldPx,
		string?	nickname = null )

Initializes a new scene-layer radial light.

Parameters

lightColor	The color and base alpha of the light.
renderSurfaceHost	The render surface host that owns the drawing.
sceneLayer	The scene layer where the light is positioned.
centerWorldPx	The center of the light in world pixels.
radiusWorldPx	The light radius in world pixels.
nickname	Optional name used by DirectDrawingManager.

Definition at line 70 of file DirectRadialLight.cs.

Member Function Documentation

◆ MoveTo()

DirectRadialLight Gondwana.Drawing.Direct.DirectRadialLight.MoveTo ( PointF centerWorldPx )

Moves the light center and returns this instance for chaining.

Parameters

centerWorldPx The center in world pixels.

Returns: This instance for fluent chaining.

Definition at line 306 of file DirectRadialLight.cs.

◆ OnDraw()

override void Gondwana.Drawing.Direct.DirectRadialLight.OnDraw	(	BackbufferBase	backbuffer,
		RectangleF	destRectScreen )

protected

Definition at line 342 of file DirectRadialLight.cs.

◆ SetIntensity()

DirectRadialLight Gondwana.Drawing.Direct.DirectRadialLight.SetIntensity ( float intensity )

Sets the light intensity and returns this instance for chaining.

Parameters

intensity The intensity.

Returns: This instance for fluent chaining.

Definition at line 328 of file DirectRadialLight.cs.

◆ SetRadius()

DirectRadialLight Gondwana.Drawing.Direct.DirectRadialLight.SetRadius ( float radiusWorldPx )

Sets the light radius and returns this instance for chaining.

Parameters

radiusWorldPx The radius in world pixels.

Returns: This instance for fluent chaining.

Definition at line 317 of file DirectRadialLight.cs.

◆ Update()

override void Gondwana.Drawing.Direct.DirectRadialLight.Update ( long tick )

virtual

Performs per-frame update logic for this direct drawing, including fade and reveal animations.

Parameters

tick	The current engine tick value from HighResTimer.

This method is called automatically by the DirectDrawingManager each frame. The base implementation advances active fade and reveal animations. Override this method in derived classes to add custom per-frame logic (such as animation or physics updates).

Reimplemented from Gondwana.Drawing.Direct.DirectDrawingBase.

Definition at line 335 of file DirectRadialLight.cs.

Property Documentation

◆ BlendMode

SKBlendMode Gondwana.Drawing.Direct.DirectRadialLight.BlendMode

getset

Gets or sets the blend mode used when compositing the light over scene content.

Definition at line 170 of file DirectRadialLight.cs.

◆ CenterWorldPx

PointF Gondwana.Drawing.Direct.DirectRadialLight.CenterWorldPx

getset

Gets the light center in world pixels.

Definition at line 94 of file DirectRadialLight.cs.

◆ EffectiveIntensity

float Gondwana.Drawing.Direct.DirectRadialLight.EffectiveIntensity

get

Gets the current intensity after flicker has been applied.

Definition at line 165 of file DirectRadialLight.cs.

◆ FlickerAmount

float Gondwana.Drawing.Direct.DirectRadialLight.FlickerAmount

getset

Gets or sets how much flicker may alter the base intensity. Recommended range: 0 to 0.25.

Definition at line 277 of file DirectRadialLight.cs.

◆ FlickerEnabled

bool Gondwana.Drawing.Direct.DirectRadialLight.FlickerEnabled

getset

Gets or sets whether the light should periodically vary its intensity.

Flicker marks the light's full bounds dirty at FlickerRefreshHz. If a DirectDarknessOverlay reveal source is tracking this light with intensity tracking enabled, the overlay will also refresh at this cadence.

Definition at line 258 of file DirectRadialLight.cs.

◆ FlickerRefreshHz

int Gondwana.Drawing.Direct.DirectRadialLight.FlickerRefreshHz

getset

Gets or sets how often flicker is recomputed and dirtied.

Definition at line 295 of file DirectRadialLight.cs.

◆ HotspotRadiusRatio

float Gondwana.Drawing.Direct.DirectRadialLight.HotspotRadiusRatio

getset

Gets or sets the radius ratio for the hottest inner portion of the gradient.

Definition at line 186 of file DirectRadialLight.cs.

◆ Intensity

float Gondwana.Drawing.Direct.DirectRadialLight.Intensity

getset

Gets or sets the overall intensity multiplier from 0 to 1.

Definition at line 147 of file DirectRadialLight.cs.

◆ IsAntialias

bool Gondwana.Drawing.Direct.DirectRadialLight.IsAntialias

getset

Gets or sets whether Skia antialiasing is enabled for the light draw.

Definition at line 237 of file DirectRadialLight.cs.

◆ LightColor

Color Gondwana.Drawing.Direct.DirectRadialLight.LightColor

getset

Gets or sets the color and base alpha of the light.

Definition at line 130 of file DirectRadialLight.cs.

◆ MidpointIntensityRatio

float Gondwana.Drawing.Direct.DirectRadialLight.MidpointIntensityRatio

getset

Gets or sets the middle stop intensity multiplier from 0 to 1.

Definition at line 220 of file DirectRadialLight.cs.

◆ MidpointRadiusRatio

float Gondwana.Drawing.Direct.DirectRadialLight.MidpointRadiusRatio

getset

Gets or sets the radius ratio for the middle gradient stop.

Definition at line 203 of file DirectRadialLight.cs.

◆ RadiusWorldPx

float Gondwana.Drawing.Direct.DirectRadialLight.RadiusWorldPx

getset

Gets the light radius in world pixels.

Changing the radius changes DirectDrawingBase.WorldBounds, which dirties the old and new light areas.

Definition at line 113 of file DirectRadialLight.cs.

Event Documentation

◆ Changed

Action<DirectRadialLight>? Gondwana.Drawing.Direct.DirectRadialLight.Changed

Occurs when this light changes in a way tracked darkness overlays care about.

This event is primarily a synchronization hook for DirectDarknessOverlay and DirectSceneLayerDarknessOverlay. It is raised when the light's center, radius, base intensity, or effective flicker intensity changes. It is not intended to be a complete "any paint setting changed" notification for every cosmetic property.

Definition at line 59 of file DirectRadialLight.cs.

Public Member Functions

Protected Member Functions

Properties

Events

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DirectRadialLight()

Member Function Documentation

◆ MoveTo()

◆ OnDraw()

◆ SetIntensity()

◆ SetRadius()

◆ Update()

Property Documentation

◆ BlendMode

◆ CenterWorldPx

◆ EffectiveIntensity

◆ FlickerAmount

◆ FlickerEnabled

◆ FlickerRefreshHz

◆ HotspotRadiusRatio

◆ Intensity

◆ IsAntialias

◆ LightColor

◆ MidpointIntensityRatio

◆ MidpointRadiusRatio

◆ RadiusWorldPx

Event Documentation

◆ Changed
